Executioner V2 Pro MOA Chassis

RcBro

RcBros Hobbies
Vendor
Joined
Nov 26, 2005
Messages
4,650
Location
Oregon



** First Batch Sold Out QUICK!!, Pre-Order yours today 4-6 Weeks for Delivery **


The Executioner V2 has been through years of testing and tuning. We are happy to release one of the best packages to hit the market in some time. After accomplishing several National Podiums the geometry of our chassis was clearly proven as a winner. This was evident in the Spider chassis, followed by the V1. We took what we knew from these two versions and decided to take it several steps further.


The first was adjustability, we understand everyone has there own want and needs in a chassis yet with carbon fiber you were often left with only the options the chassis would give you. So we changed that;





Full Adjustable Lower Section: With our creative 3 piece design, our chassis is designed to allow you to adjust the ride height and skid angle on the fly with simply moving the hardware securing your upper links. You now have the ability to raise and lower your lower chassis entirely, or just the front and back increase or decreasing angle. Now change your belly clearance and skid angle on the fly!





Skid Length: There has been several debates on what the correct skid plate length is. Although we supply a beautifully machined Delrin skid plate, we have left room for those to modify our chassis for an even shorter skid plate if desired. We feel the length is perfect, but you may not.





Removal Cab: To run a body or no? That is the question! Now you have the ability. With our 3 piece design you now the ability to choose whether you wish to run a true Lexan body.


Next we focused on quality, there was no reason to sell a chassis unless we could sell a top notch product. After several months of searching for high quality carbon fiber and an experienced machinists to take on our project we hit the road running.

  • Carbon Fiber: Our upper and lower sections are machined from 1.5mm high quality laminated carbon fiber with the center section machined from 2mm
  • Chassis Braces: Cut from hollow 3/16″ 6061 and Tapped for 3mm hardware these are both strong and lightweight
  • Skid Plate: Made from REAL Delrin and machined to precision
  • Hardware: Stainless Hardware provided
With each chassis purchase you receive the following:
(2) 1.5mm Upper Cab Sections
(2) 2mm Center Chassis Sections
(1) 1.5mm Lower Chassis Section
(1) Delrin Skid Plate
(6) Aluminum Chassis Braces
(4) 3/16″ Standoffs
(4) Stainless Nylon 3mm Nuts
(8.) 3x20mm Stainless Hardware
(4) 3x16mm Stainless Hardware
(8.) 3x8mm Stainless Hardware

Price is $130 available here: RcBros MOA Executioner V2 | RcBros Hobbies

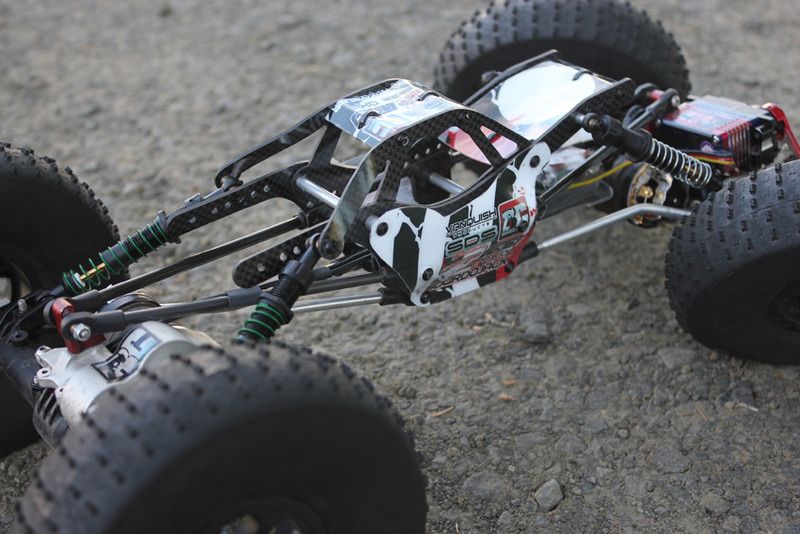

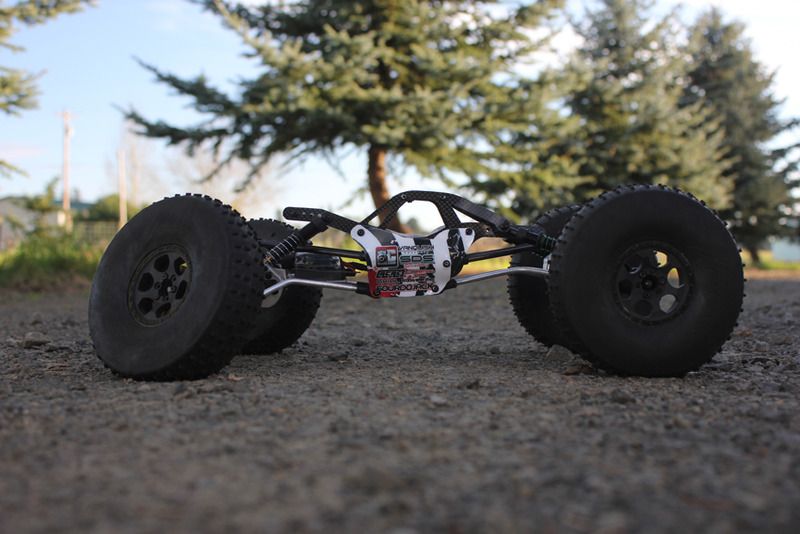

Here are a couple shots of SourDoJacks Executioner mounted to his XR10 Axles.






So when should the next batch ship?

Sorry I missed this, Our CNC router Machinist will be back in the office next week and they are on order. Unfortuantely I was not expecting him to take vacation so we are roughly 4 weeks out. I have requested an expedite to speed this process up.
