Soze's GMADE GS02 BOM Build
- Thread starter soze
- Start date
soze
I wanna be Dave
Steps 30-35: Shocks
This update is going to be relatively straightforward.
I also used the Traxxas X-Rings from the 2362 Rebuilt kit like OSRC did.
Parts:
Traxxas 2362 Rebuild Kit
Bag "E" of shock parts.
Those blue X-rings inside the Traxxas 2362 Rebuild kit.
Noleen SF3 Grease (available on eBay)
Team Associated #5422 30wt Oil (available on eBay)
ProTek RC Shock Pliers (available on eBay)
Duratrax Shock stand
Parts needed for Step 30
O-rings put around the shock caps
Parts needed for Step 31
Using the blue X-rings from Traxxas 2362 Rebuild Kit
Pistons on the shafts.
Time to put the front shocks together
Parts for Step 32
rear shock assembly getting there
Decided to put the rod-ends on early

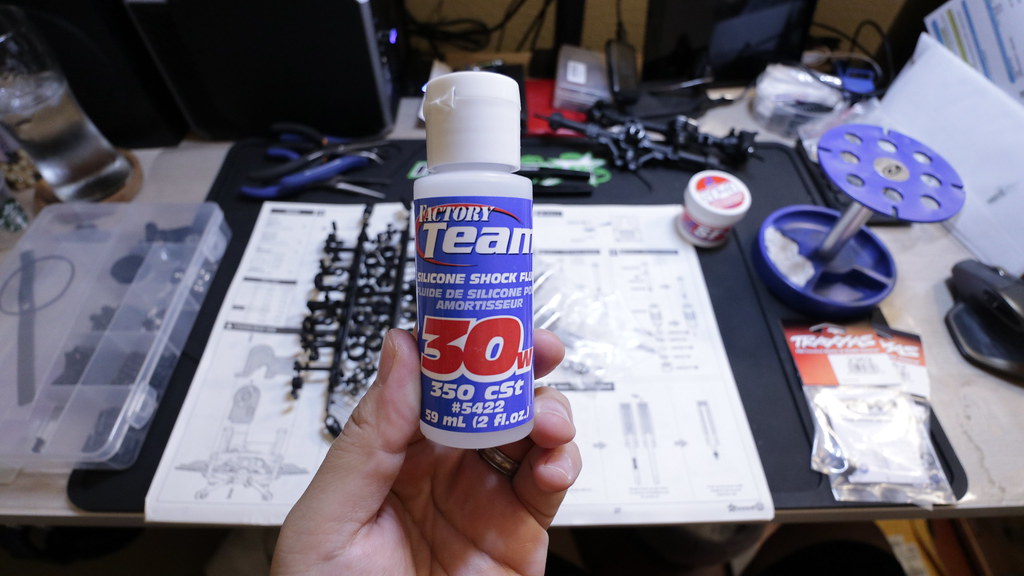

Filling the shocks up with Team Associated #5422 30wt Oil (available on eBay)
Step 33 done
Parts for Step 34
Step 34 done
Parts for Step 35
Step 35 done
Shocks all done
This update is going to be relatively straightforward.
I also used the Traxxas X-Rings from the 2362 Rebuilt kit like OSRC did.
Parts:
Traxxas 2362 Rebuild Kit
Bag "E" of shock parts.
Those blue X-rings inside the Traxxas 2362 Rebuild kit.
Noleen SF3 Grease (available on eBay)
Team Associated #5422 30wt Oil (available on eBay)
ProTek RC Shock Pliers (available on eBay)
Duratrax Shock stand
Parts needed for Step 30
O-rings put around the shock caps
Parts needed for Step 31
Using the blue X-rings from Traxxas 2362 Rebuild Kit
Pistons on the shafts.
Time to put the front shocks together
Parts for Step 32
rear shock assembly getting there
Decided to put the rod-ends on early
Filling the shocks up with Team Associated #5422 30wt Oil (available on eBay)
Step 33 done
Parts for Step 34
Step 34 done
Parts for Step 35
Step 35 done
Shocks all done
Last edited:
soze
I wanna be Dave
Steps 36-48: Driveshafts, Suspension, Steering.
Covered a bit of ground in this update.
Getting on to the driveshafts. We'll need the F-Bag

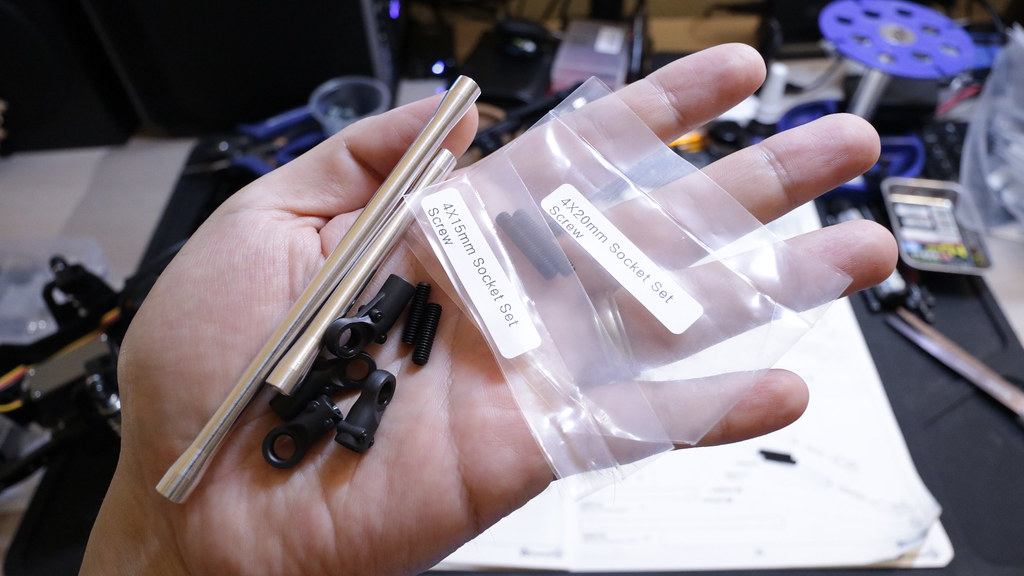

Parts needed for lower front shaft
Lower front shaft attached to front axle
Parts needed for lower rear shaft
Lower rear shaft done

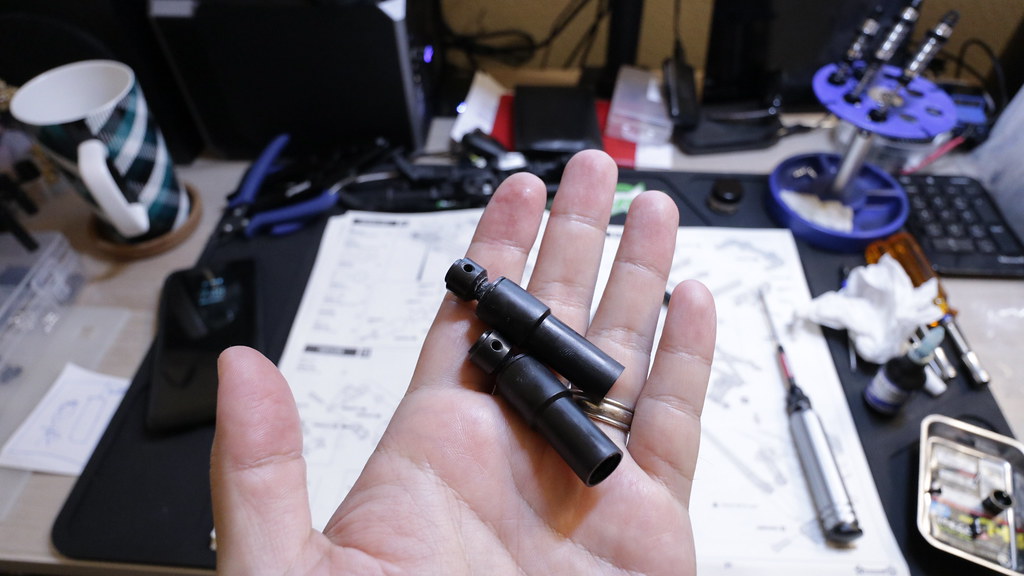

The upper half of the driveshafts

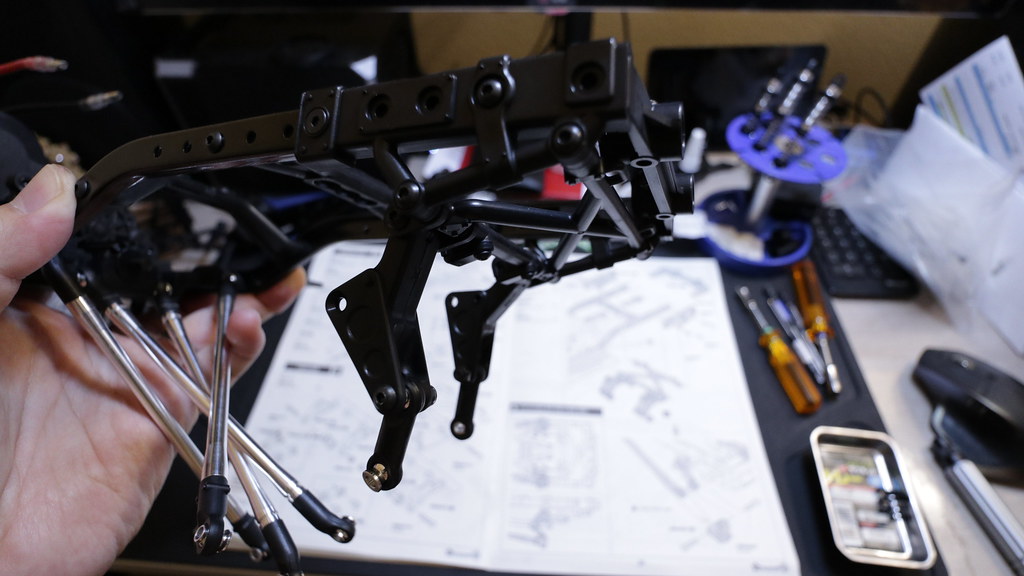

Parts for the cantilever suspension setup

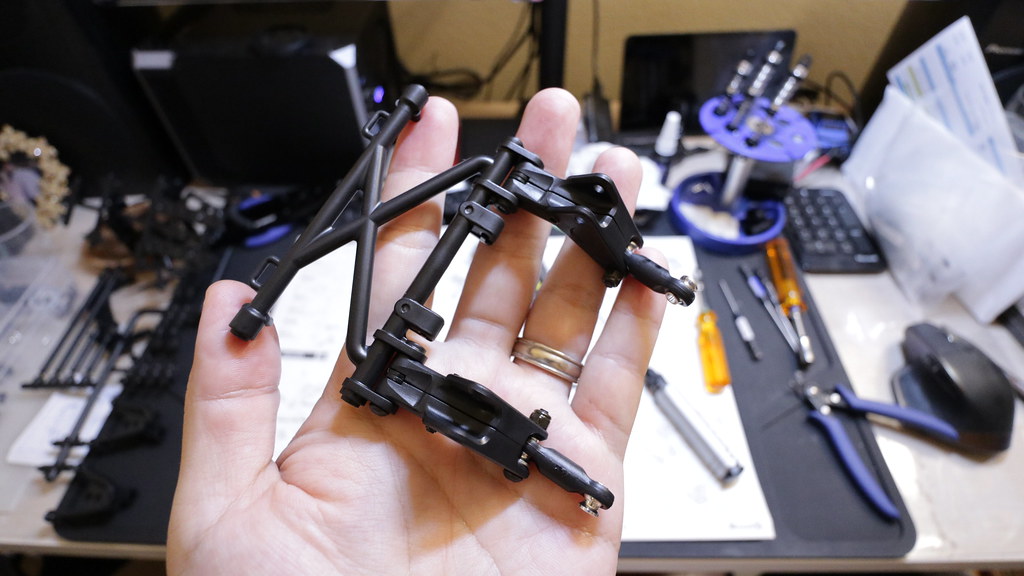

Putting the cantilever setup together
Stock cantilever setup
Hooking up the upper shafts to the transmission
Front one going on...

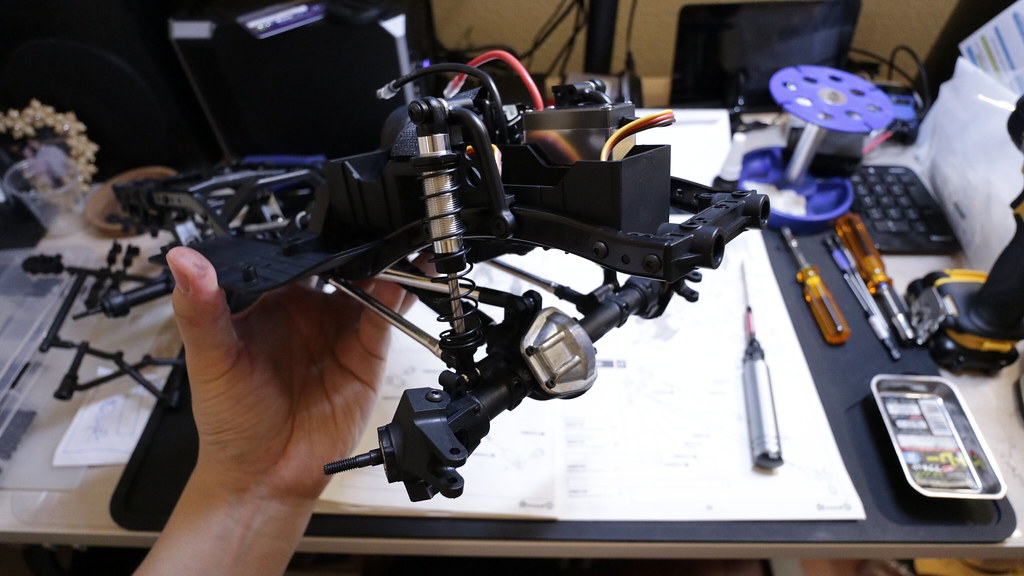

Front shocks mounted

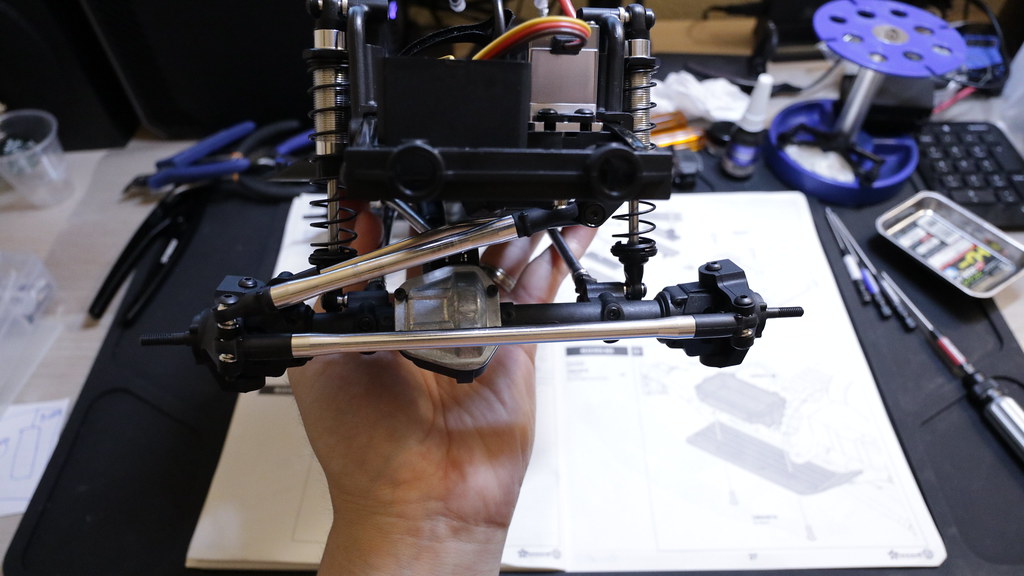

Time to get to the panhard rod.

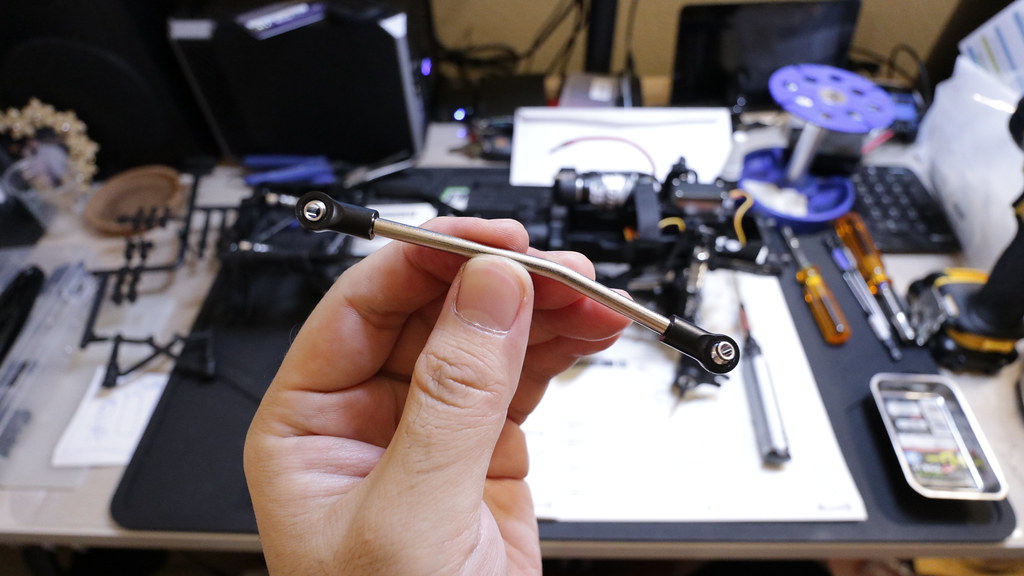

Now for the steering rods
Was experiencing a bit of bump-steer with the combo of servo horn (Boom Racing low profile) and servo (Turnigy MG959 v2 30kg) that I was using, so I decided to add a 1mm spacer to correct that.
Covered a bit of ground in this update.
Getting on to the driveshafts. We'll need the F-Bag
Parts needed for lower front shaft
Lower front shaft attached to front axle
Parts needed for lower rear shaft
Lower rear shaft done
The upper half of the driveshafts
Parts for the cantilever suspension setup
Putting the cantilever setup together
Stock cantilever setup
Hooking up the upper shafts to the transmission
Front one going on...
Front shocks mounted
Time to get to the panhard rod.
Now for the steering rods
Was experiencing a bit of bump-steer with the combo of servo horn (Boom Racing low profile) and servo (Turnigy MG959 v2 30kg) that I was using, so I decided to add a 1mm spacer to correct that.
Last edited:
Threads like this are making me wish I hadn't bought my SCX10 II and instead waited for this kit. It looks great.
soze
I wanna be Dave
Ditchrat
RCC Addict
Watched one of these run this weekend, it was pretty solid and the tires were surprisingly good for stock.
It did have some type of issue with the transmission flexing/deflecting giving it some grinding.
But all an all it ran nice, and look pretty good. Enjoy your project.
It did have some type of issue with the transmission flexing/deflecting giving it some grinding.
But all an all it ran nice, and look pretty good. Enjoy your project.
I'd love to, but I'm running out of space to store all of them! :lmao:
2mtech
RCC Addict
Great write ups, soze!
Loving mine. It gets to go play with the GCM and Bowhouse boys this weekend
Sent from my SM-G930R4 using Tapatalk
Loving mine. It gets to go play with the GCM and Bowhouse boys this weekend
Sent from my SM-G930R4 using Tapatalk
soze
I wanna be Dave
Steps 49-55: Electronics boxes, Sliders, Bumper, Body Posts
The BOM is really starting to come together now.
Non kit parts used in these steps:
1. FlySky FS-R6B Receiver
2. Hobbywing 1080 Esc (available on eBay)
My FlySky FS-R6B Receiver and where it's going...
Some parts for the wiring entrance of the receiver box.
This is where it goes on the truck
Going to be using a Hobbywing 1080 Esc (available on eBay)
Parts for the sliders
Mounted the box without the electronics for the time being.
Front bumper.
Body posts
The BOM is really starting to come together now.
Non kit parts used in these steps:
1. FlySky FS-R6B Receiver
2. Hobbywing 1080 Esc (available on eBay)
My FlySky FS-R6B Receiver and where it's going...
Some parts for the wiring entrance of the receiver box.
This is where it goes on the truck
Going to be using a Hobbywing 1080 Esc (available on eBay)
Parts for the sliders
Mounted the box without the electronics for the time being.
Front bumper.
Body posts
Your phone must be like mine - just filled with tons of photos!
Which transmitter will you be using with that receiver?
Which transmitter will you be using with that receiver?
soze
I wanna be Dave
My hacked Flysky GT3C. It does what it needs to do.
Yep, they're fine! I was just hoping you were going to say you got it to work with a GT5 because that's what I have and it doesn't like most FlySky receivers.
Ditchrat
RCC Addict
soze
I wanna be Dave
Steps 56-58: Wheels and Tires
This is going to be a short step... not much to see here, and I'm just putting these together for the sake of the stock build documentation.
You're going to need these...
All mounted (little secret.. I haven't glued them yet)
Now you'll need these.
Ok.. this part done. See told you it was a short step.
This is going to be a short step... not much to see here, and I'm just putting these together for the sake of the stock build documentation.
You're going to need these...
All mounted (little secret.. I haven't glued them yet)
Now you'll need these.
Ok.. this part done. See told you it was a short step.
2mtech
RCC Addict
Please tell me you have no intention of actually using the stock glue on wheels which is why you didn't glue them.
Ok, good, thank you. "thumbsup"
I'll say again, the stock tires are very decent!
Ok, good, thank you. "thumbsup"
I'll say again, the stock tires are very decent!
soze
I wanna be Dave
Step 59: Rear Cage
Here's one of the cooler parts of this truck. I really like this rear cage/hinge setup.
Here are the parts needed
Rear Cage put together
Fuel cell painted up and attached to the cage
Here's one of the cooler parts of this truck. I really like this rear cage/hinge setup.
Here are the parts needed
Rear Cage put together
Fuel cell painted up and attached to the cage
soze
I wanna be Dave
Steps 60-65: Body & Completion
It's taken be quite a bit of time, and I'm finally done with the "stock" build. I won't be stopping here though. I wanted to build this truck completely stock first just to get that out of the way, but now it's time to start modding and running.
Lexan cab ready for painting
Cab painted and decals applied. My Plasti-dipped fender flares need some work that I'll revisit later.
Here's the grille that I won't be permanently attaching, as I won't be using it.
These are the parts you will need for the front grille
This is how the front grille would look attached
Parts needed for Side mirrors and door handles
Mirrors and door handles attached
Rear cage attached
I love the rear cage hinge for this truck. Very convenient.
Stock build complete
It's taken be quite a bit of time, and I'm finally done with the "stock" build. I won't be stopping here though. I wanted to build this truck completely stock first just to get that out of the way, but now it's time to start modding and running.
Lexan cab ready for painting
Cab painted and decals applied. My Plasti-dipped fender flares need some work that I'll revisit later.
Here's the grille that I won't be permanently attaching, as I won't be using it.
These are the parts you will need for the front grille
This is how the front grille would look attached
Parts needed for Side mirrors and door handles
Mirrors and door handles attached
Rear cage attached
I love the rear cage hinge for this truck. Very convenient.
Stock build complete
2mtech
RCC Addict
Nice job on the paint and fuel cell detailing!
