Locked Up Rc has introduced a new CMS(chassis mounted servo) kit to the market. This is the most complete and adjustable kit ever produced.
The Pro CMS Kit gets rid of any old hang ups you may have had with past other kits offered on the market.
What's the same:
Familiar servo placement
3 link setup
Panhard bar
All inclusive
What's different:
Adjustable servo mount to accommodate different wheelbases
Heavy duty axle mounted pan hard bracket
Optional Gunnar beef tubes designed specifically for this kit
Optional zero Ackerman pan hard bracket and pan hard bar
Notes:
This kit is a bolt on option but also requires some knowledge for modifying parts and simple hand tools and drill to achieve full functionality and adjustability.
I've been running this kit for a few months and it has proven to be the best CMS Kit I've ever used and I've used most other brands produced and always ditched them after lack luster performance. This kit has made me a believer in CMS kits and confident I can get the performance needed to put my trucks on the podium and look scale at the same time.
When installed the kit is clean and very efficient. Perfect link geometry no matter your settings.
The panhard axle mount is one of the biggest improvements over other kits. This mount utilizes the existing two screw holes and then adds two more with an internal backing plate the mount extremely secure. The kit includes a drill guide to make the modification a breeze. You also have the option of special Gunnar beef tubes that are made for this kit and threaded for the screws to give you the weight and strength option if desired as we did.
Here's a look at the clean axle mounted upper three link mount.

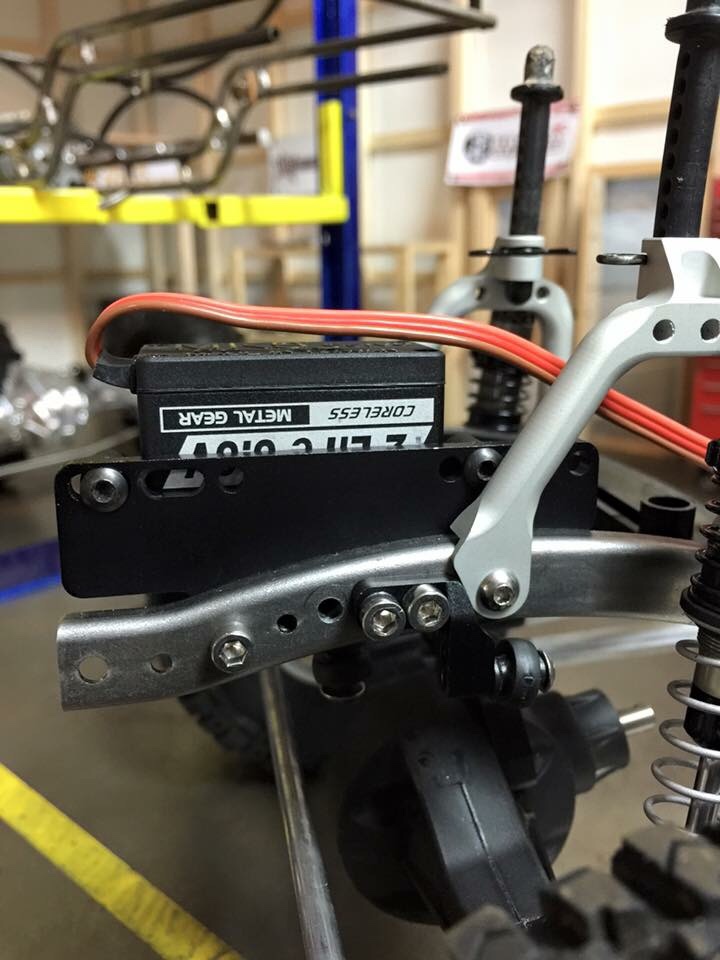

You can see here where the real adjustments that make this kit above the rest, come into play.
There are options for mounting the servo posts to the plate to change position. You will also notice the new holes drilled in the frame rail. The servo mount has multiple threaded holes that allow you to shift the bracket in the chassis to accommodate almost endless wheelbase choices for those custom scale builds that may not be the standard lengths. Simply use the bracket and provided drill guides to mark your holes and proceed. I added a couple holes from the beginning so I could make adjustments once installed knowing my setup was gonna be custom for the build. The panhard bar is also adjustable by swapping sides of the mount for the bar.

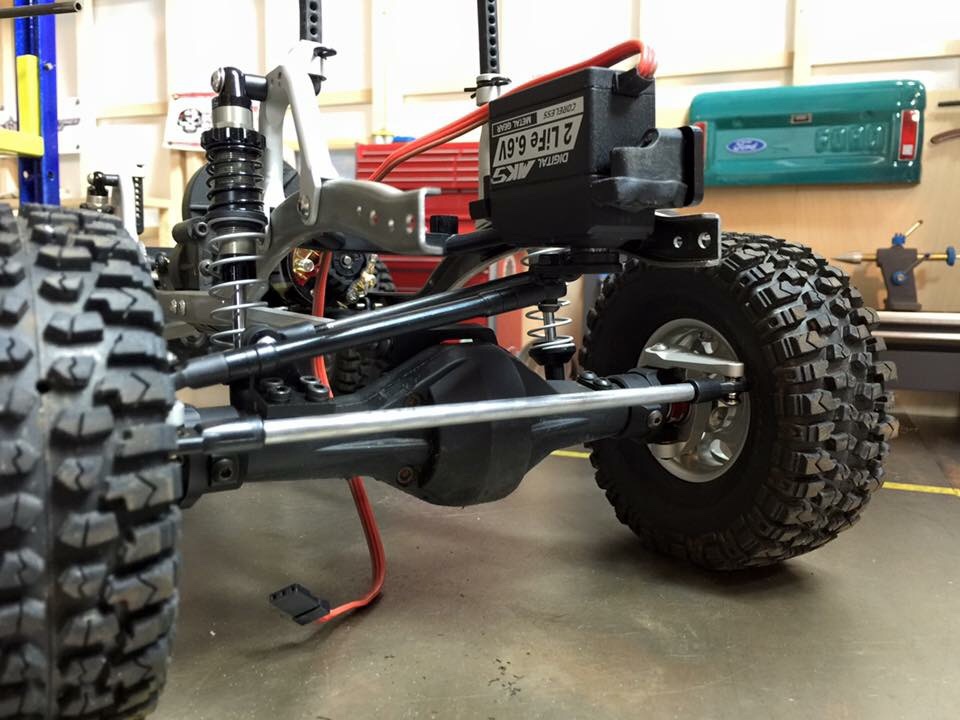

The pan hard bar and drag link run parallel and horizontal with each other making bump steer non existent and servo performance optimal.
I run VP 8* Cs and knuckles for zero Ackerman steering so we mounted up the optional longer pan hard bracket for the best performance.
The Pro CMS Kit gets rid of any old hang ups you may have had with past other kits offered on the market.
What's the same:
Familiar servo placement
3 link setup
Panhard bar
All inclusive
What's different:
Adjustable servo mount to accommodate different wheelbases
Heavy duty axle mounted pan hard bracket
Optional Gunnar beef tubes designed specifically for this kit
Optional zero Ackerman pan hard bracket and pan hard bar
Notes:
This kit is a bolt on option but also requires some knowledge for modifying parts and simple hand tools and drill to achieve full functionality and adjustability.
I've been running this kit for a few months and it has proven to be the best CMS Kit I've ever used and I've used most other brands produced and always ditched them after lack luster performance. This kit has made me a believer in CMS kits and confident I can get the performance needed to put my trucks on the podium and look scale at the same time.
When installed the kit is clean and very efficient. Perfect link geometry no matter your settings.
The panhard axle mount is one of the biggest improvements over other kits. This mount utilizes the existing two screw holes and then adds two more with an internal backing plate the mount extremely secure. The kit includes a drill guide to make the modification a breeze. You also have the option of special Gunnar beef tubes that are made for this kit and threaded for the screws to give you the weight and strength option if desired as we did.
Here's a look at the clean axle mounted upper three link mount.
You can see here where the real adjustments that make this kit above the rest, come into play.
There are options for mounting the servo posts to the plate to change position. You will also notice the new holes drilled in the frame rail. The servo mount has multiple threaded holes that allow you to shift the bracket in the chassis to accommodate almost endless wheelbase choices for those custom scale builds that may not be the standard lengths. Simply use the bracket and provided drill guides to mark your holes and proceed. I added a couple holes from the beginning so I could make adjustments once installed knowing my setup was gonna be custom for the build. The panhard bar is also adjustable by swapping sides of the mount for the bar.
The pan hard bar and drag link run parallel and horizontal with each other making bump steer non existent and servo performance optimal.
I run VP 8* Cs and knuckles for zero Ackerman steering so we mounted up the optional longer pan hard bracket for the best performance.
