Free WK servo mount templates

[Creepy Inc.]

Im a fan of Ryan62583's mount. It looks like it would be simple to make something similar.

Damm that looks good. All the ones I used to seeing look goofy. I'm turng my WK in to a scaler so if any one knows were to get one like that PLEASE let me know or just post some thing.



[calikingcrawler]

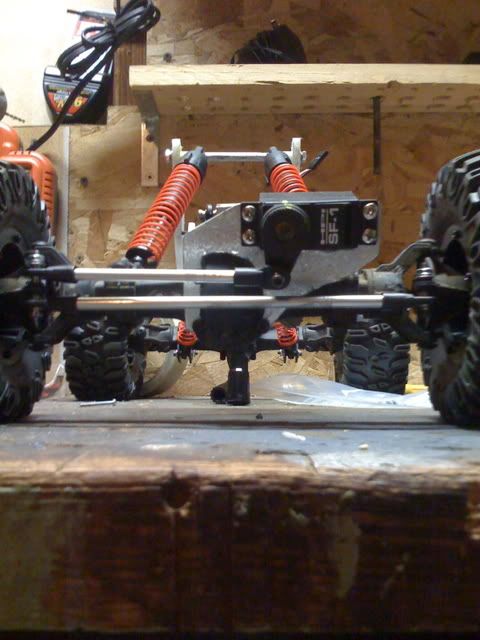

Here is mine, works GREAT!!!



[bart]

who has a Wheely King Servo Mount that Mount's the servo over the middle over the Axel



[shierkahn]

who has a Wheely King Servo Mount that Mount's the servo over the middle over the Axel

I think you would have to make one. You can get about any template and use the dif section of it then just draw out the rest so it mounts over the center. That's what I did back before they were available.Still using the same one just made it from thicker material than my first one. Chris



[bart]

i will try that thank you.



[Douginala]

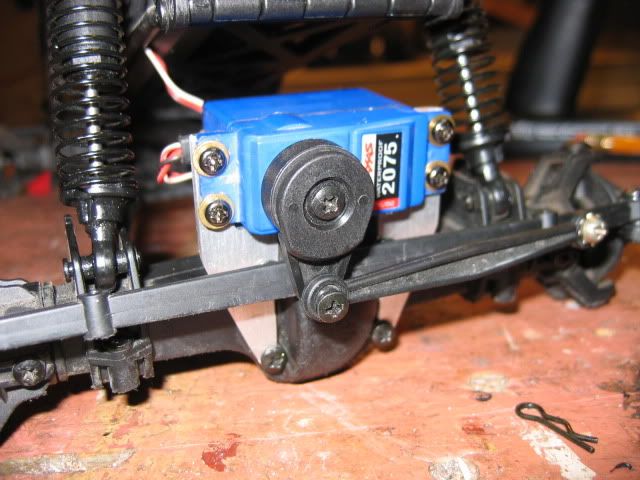

I've made a couple of these for the guys around here and they like them. I can make you one or will be happy to share the drawings.

This is an early version. I've made some changes since then.

Inspiration was from a Mr. Jowett.

If anybody's interested I'll post up an .avi file.



[PCK_4xCustoms]

id be interested in a file if not a completed one ha.

lookin to put a servo on my stretched rear



[chris akhay]

I've made a couple of these for the guys around here and they like them. I can make you one or will be happy to share the drawings.

This is an early version. I've made some changes since then.

Inspiration was from a Mr. Jowett.

If anybody's interested I'll post up an .avi file.

how much???"thumbsup"



[Douginala]

how much???"thumbsup"

Chris,

You have a pm.



[Douginala]

id be interested in a file if not a completed one ha.

PCK,

You have a pm.



[chris akhay]

Chris,

You have a pm.

got it

MAHALO,
chris



[Blueshirt]

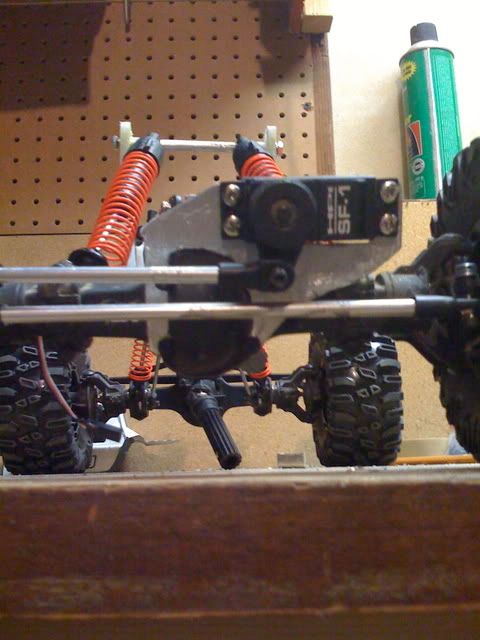

I hand fabbed an over the pumpkin servo mount based on JP design. Not pretty but it works!



[TIMMAAY]

I've made a couple of these for the guys around here and they like them. I can make you one or will be happy to share the drawings.

This is an early version. I've made some changes since then.

Inspiration was from a Mr. Jowett.

If anybody's interested I'll post up an .avi file.

very nice! "thumbsup"



[D.K.V]

do a servo directly over the diff work any better?



[Pete from Houston]

do a servo directly over the diff work any better?

I think a servo mounted to the side would allow the chassis to sit lower, and the unsprung weight might help to keep that tires down (to combat the torque twist).



[D.K.V]

so it wont hurt the performance too much?



[Reaper09]

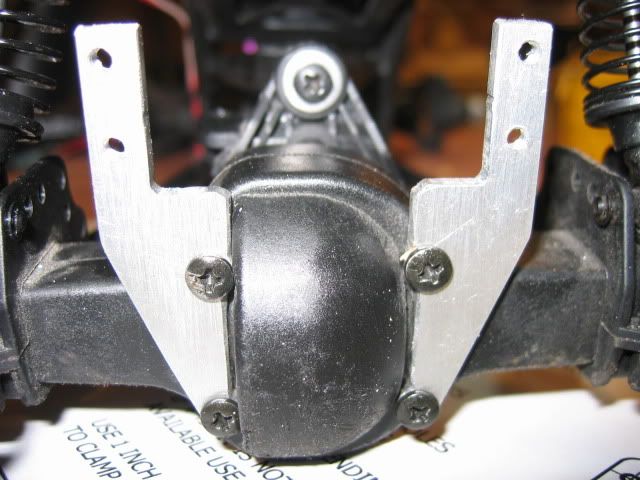

I uploaded all the files into this folder.

http://cid-4a947c0fd105ba34.skydrive.live.com/self.aspx/WK Templates

If someone coud let me know if it works that would be great.

worked perfect for me dude. took 16 pages of hunting for the template but eventually found it. template was perfect even printed out in the right scale. made it from 2mm mild steel 8). servo fits perfect and the diff shape is perfect. cheers man"thumbsup"



[Jeep-Power]

Thanks for the templates folks!!!

I upgraded my buddy's Crawler King

this steering system sucked, but it shows the servo in the best



[Pete from Houston]

This thread needs to be pruned! Several of the original links and photos are no longer working.:x



[daddys_crazy]

none of the links work... is this forum now a ghost town? i'm looking for a front servo template please can anyone help me?
:shock:
