Free WK servo mount templates

[CrawleR ModdeR]

???

They are ready to print... Make sure your printer is set at 1:1 with no rescaling.

http://cid-4a947c0fd105ba34.skydrive.live.com/self.aspx/WK Templates

the link doesn't work



[CrawleR ModdeR]

???

They are ready to print... Make sure your printer is set at 1:1 with no rescaling.

http://cid-4a947c0fd105ba34.skydrive.live.com/self.aspx/WK Templates

never mind i figured out how to work it



[rik]

never mind i figured out how to work it

"thumbsup" yea, took me a try or two to figure it out...



[SOMD_BASHER]

thanks guys "thumbsup"



[Hoosierdady]

thanks for the templates guys. Sorry for the PM Harley, I got further into the thread before seeing shadows link.



[DaiSan]

Used the template and made a mount out of 1/16th inch steel plate. Works like a dream.



[yoraish]

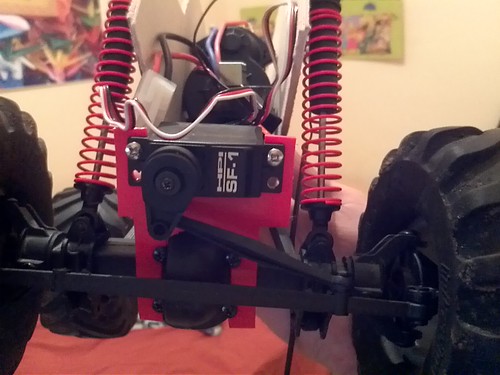

I made this servo mount, but I don't get enough movement in the steering system. I don't this this problem originates in the mount. Can someone think of any other possible problems?



[Cordwood]

Your servo horn is way too short.



[yoraish]

Do you have any suggestions for a longer servo horn that could work with this servo?



[Cordwood]

HPI servos are 25 spline, like futaba. If you're bashing with it and want a servo saver, check out the ofna units. Otherwise, look for a clamp on style aluminum servo arms. I have a few of the Hobby King arms and have not had any issues with them.

HobbyKing R/C Hobby Store : CNC Alloy Servo Arm Short (Futaba)



[Dkstr]

Hi guys, my version of servo mount:
https://www.thingiverse.com/thing:4257230



[Dkstr]

You can change thickness in slicer program by cutting off it. Default is 4 mm
