Free WK servo mount templates
- Thread starter clarkrw3
- Start date
SKEENO this yours its at the bottom of the first page its all the measurements and i need to no what they are in inches
RockCrawlingKid
Quarry Creeper
do u have to buy the plans from d-ran?
if not can u give me the link to them i did a light search and got zip
if not can u give me the link to them i did a light search and got zip
tcnw05
Newbie
whenever i click on a link to the template and click save or open on the little window that opens all i get is a bunch of letters and symbols no template.............whats up? any help would be greatly appreciated
HndsWthtShdws
Quarry Creeper
I sent you an email with the files, let me know if it got through and if everything works.
If you get the same result I would guess its your pdf reader. Check if there are any updates for Adobe or try reinstalling it.
If you get the same result I would guess its your pdf reader. Check if there are any updates for Adobe or try reinstalling it.
jombo
Pebble Pounder
here is my servo mount, its made out of balsa wood glued together then i used fiberglass cloth and resin for strenth
<a href="http://s120.photobucket.com/albums/o168/jombo01/?action=view¤t=DSC05277.jpg" target="_blank"><img src="http://i120.photobucket.com/albums/o168/jombo01/DSC05277.jpg" border="0" alt="Photobucket"></a>
<a href="http://s120.photobucket.com/albums/o168/jombo01/?action=view¤t=DSC05277.jpg" target="_blank"><img src="http://i120.photobucket.com/albums/o168/jombo01/DSC05277.jpg" border="0" alt="Photobucket"></a>
tcnw05
Newbie
ok so i bought the rc4wd extended link kit, and i was just wondering where the lower link would go to once you flipped the shock mount 90*? cause im planning on putting my servo on the axle with the rcguy mount. im stumped....lol and sorry for all the stupid newb questions and thanx for yor guys' help.
here is a consept for someone, it splits in half, the servo holds it together, it works real good.
http://i248.photobucket.com/albums/gg194/dirt_rider093/Crawler King/gvhjgk.jpg
http://i248.photobucket.com/albums/gg194/dirt_rider093/Crawler King/gvhjgk.jpg
SWelte
Rock Stacker
I have a question, If I rotate my shock/ link mount to clear the axle mounted servo, the shock mount is loose due to axle not being cemetriacal/ square. What is done to cure this?
SWelte
Rock Stacker
Tried it and answered my question.
backfold
Rock Stacker

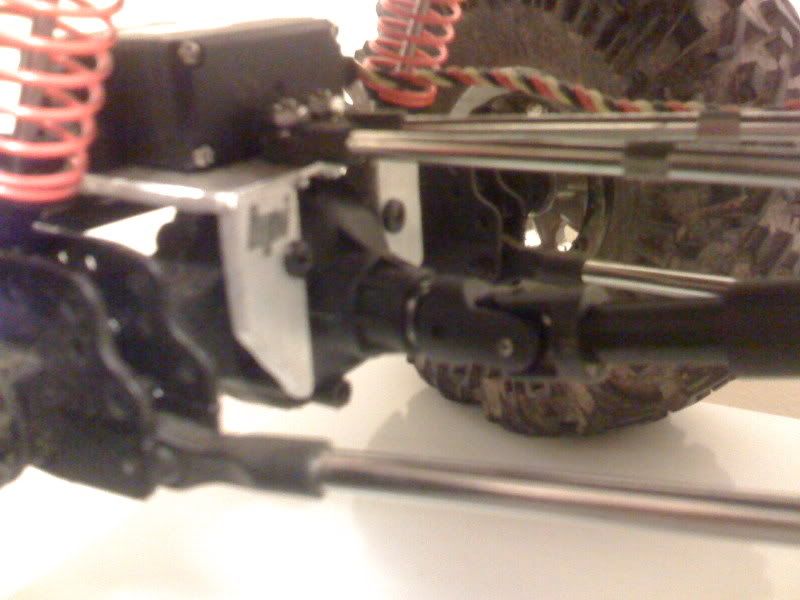

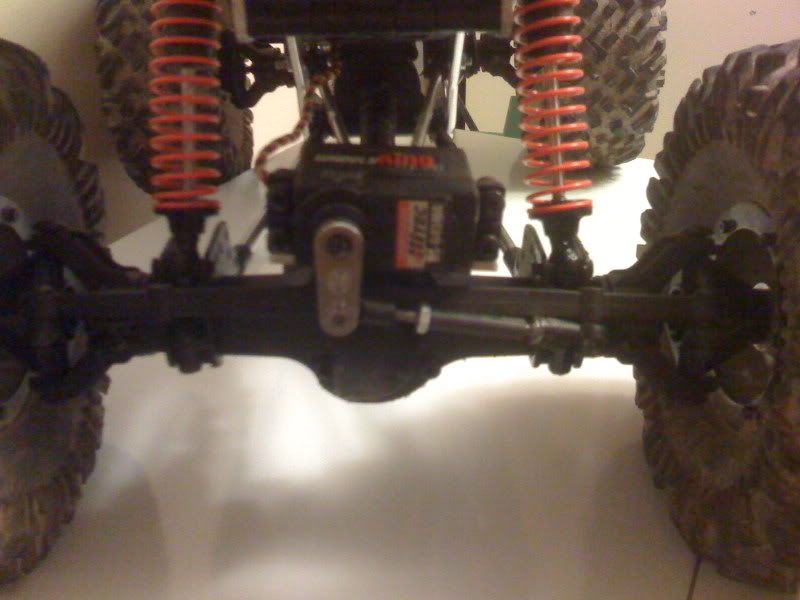

here is what i came up with"thumbsup"
granted i need to do something with the steering linkage but it works
granted i need to do something with the steering linkage but it works
Last edited:
krush groove
Newbie
Great collection of templates on PDF! Thanks for doing that!
Can someone please ask Jason to update his posts with the collection link? http://cid-4a947c0fd105ba34.skydrive.live.com/self.aspx/WK Templates
It would save tons of time for people digging through 16 pages of replies...
Now the hard part is choosing which servo mount to use
I'll have to see how to modify one for the rear end, to drop the plastic linkage for the knuckles and convert it to turnbuckles like the Scorpion...
Can someone please ask Jason to update his posts with the collection link? http://cid-4a947c0fd105ba34.skydrive.live.com/self.aspx/WK Templates
It would save tons of time for people digging through 16 pages of replies...
Now the hard part is choosing which servo mount to use
I'll have to see how to modify one for the rear end, to drop the plastic linkage for the knuckles and convert it to turnbuckles like the Scorpion...
HndsWthtShdws
Quarry Creeper
The PDFs are fine for me and other people. Make sure your printer is set at 1:1 with no rescaling.
if you look at the bottom right corner of the drawling is has "scale 1:0.9"
It's fine, I just ended up making my own. The drawling either needs to be 1:1 or have dimensions on it. I still think its cool that Harley took the time to do this, I was just bring it to everyone attention.
The drawing is 1:1 in PDF, it is a difference in how it is printed. The template has worked for HUNDREDS of people without a problem.
I guess it's just a problem the way my computer downloaded this, I did end up getting it to work fine. Thanks for all the help, I wasn't meaning to complain, thank you for doing this for everyone.
