Re: First time builder project - SCX10 II + first DIY mods
Looks great and beefy.
Looks great and beefy.
-
Welcome to RCCrawler Forums.
It looks like you're enjoying RCCrawler's Forums but haven't created an account yet. Why not take a minute to register for your own free account now? As a member you get free access to all of our forums and posts plus the ability to post your own messages, communicate directly with other members, and much more. Register now!
Already a member? Login at the top of this page to stop seeing this message.
First time builder project - SCX10 II
- Thread starter IVIaarten
- Start date
-
- Tags
- first build jeep xj scx10
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Thanks all
Started with the rear bumper as well.
Thanks all
Started with the rear bumper as well.
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
On to figuring out the mounting. Started with some steel bar to make posts that will bolt directly into the c-frames
Loads of grinding and filing but got them to fit. If I lay the bumper directly on them, it sits too high, so next up is grinding out some slots for the bumper to sit in, mount a steel cross-member, drill and tap some holes, and I should be ready to go.
New mockup
On to figuring out the mounting. Started with some steel bar to make posts that will bolt directly into the c-frames
Loads of grinding and filing but got them to fit. If I lay the bumper directly on them, it sits too high, so next up is grinding out some slots for the bumper to sit in, mount a steel cross-member, drill and tap some holes, and I should be ready to go.
New mockup
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Wanted to add an extra bar on the bumper as well, soldered in just now
Wanted to add an extra bar on the bumper as well, soldered in just now
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Here we go, front bumper is just about done. What do you guys thing, keep it shiny metal or paint it black?
Here we go, front bumper is just about done. What do you guys thing, keep it shiny metal or paint it black?
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Not 100% done yet, still want to add tow shackles, and try to fit some led's in there, but took the truck for a spin today, and the approach angle is so much better, it's great
Not 100% done yet, still want to add tow shackles, and try to fit some led's in there, but took the truck for a spin today, and the approach angle is so much better, it's great
IVIaarten
Quarry Creeper
thanks
Shocks are pretty much spot on for my build. I've added quite a bit of weight on the roof rack. I think otherwise I would look for slightly lighter springs.
I've removed the red rubber stoppers on the front springs, I now have back all of the travel/flex I had with the stock shocks on the front, and the diaphragm makes sure there is room for the shock oil to go on full compression. I think I'll leave the stops on the rear shocks.
Altogether very happy with them, no leaks
Thanks! I'm still torn between black paint, or just completely buffing them up, adding a coat of clear, and have damage/scratches age and rust it over time.
saddlesore
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Damn dude. Great work on the bumper! Looks legit!
Here we go, front bumper is just about done. What do you guys thing, keep it shiny metal or paint it black?
Damn dude. Great work on the bumper! Looks legit!
IVIaarten
Quarry Creeper
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Since I wasn't entirely happy with the low end control on the brushless setup, I wanted to try brushed. Managed to pick up a quicrun WP1080 + random 21T motor so decided to give that a go. Since I want to eventually make an interior as well, I figured I might as well replace the receiver box and move the electronics around. First to remove the original receiver box.
With that gone, I decided to make a small mounting plate for the ESC out of aluminium sheet.
And add a coat of paint to it
Electronics needed a new home too, recycled the rubber grommet for the cables from the original box.
With the receiver mounted, and added a spot for the light controller
Mounted the on/off button to the steering servo
And here with everything back in place. I think this is the most amount of space I can make available with the tranny in this location.
I must say I'm completely amazed with the difference in low end control after fiddling with the WP1080 a bit. So many settings for a crawler. The extra external port for the programming card is super helpful as well for changing settings without having to unplug the unit from the RX so that it can sit in its waterproof box.
Looking forward to testing it outside.
Since I wasn't entirely happy with the low end control on the brushless setup, I wanted to try brushed. Managed to pick up a quicrun WP1080 + random 21T motor so decided to give that a go. Since I want to eventually make an interior as well, I figured I might as well replace the receiver box and move the electronics around. First to remove the original receiver box.
With that gone, I decided to make a small mounting plate for the ESC out of aluminium sheet.
And add a coat of paint to it
Electronics needed a new home too, recycled the rubber grommet for the cables from the original box.
With the receiver mounted, and added a spot for the light controller
Mounted the on/off button to the steering servo
And here with everything back in place. I think this is the most amount of space I can make available with the tranny in this location.
I must say I'm completely amazed with the difference in low end control after fiddling with the WP1080 a bit. So many settings for a crawler. The extra external port for the programming card is super helpful as well for changing settings without having to unplug the unit from the RX so that it can sit in its waterproof box.
Looking forward to testing it outside.
IVIaarten
Quarry Creeper
No problem at all, here's my settings:
1. Running Mode: 3 - Fwd/Rev - in my opinion the best mode for a crawler, if you want to can start on 2 - Fwd/Rev/Brk to avoid accidental backing up
2. Battery Type: 1 - LiPo - pretty self explanatory
3. Cutoff Voltage: 3 - Auto (medium)
4. Initial Start Force: 2 - 2%
5. Max. Forward Force - 4 - 100%
6. Max. Reverse Force - 2 - 50% (with a 21T motor that's fast enough, on a 35T you might want to go with 75%
7. Max. Brake Force - 9 - 100%
8. Initial Brake Force - 1 - 0%
9. Drag Brake - 9 - 100%
10. Drag Brake Rate - 4 - Level 4
11. Neutral Range - 1 - 0.02ms
12. Start Mode/Punch - 1 - Level 1
13. PWM Frequency - 4 - 8K (can set this lower for lower ESC temp, but smoother control on higher settings)
14. BEC Voltage - 1 - 6V
15. Freewheeling 1 - Enabled (Not too sure if they named this correctly, but according to the manual this gives better linearity for crawlers, not suggested for faster race cars)
IVIaarten
Quarry Creeper
No problem at all.
Also going to pick up some styrene this weekend and make a start on the interior.
Hey I wanted to let you know I liked your setting on my ESC. The only thing different I did was like you said, brake force at 75%.
Please document your interior. I have never worked with styrene and am a little apprehensive. I was thinking about cheating using a 3D printed interior. There is a hobby shop where I live that will print stuff for you for $10. He told me he would do the inner fenders for $40 + the $6.50 for the file. Thats cheap compared to what they want shipped.
-M
IVIaarten
Quarry Creeper
Re: First time builder project - SCX10 II + first DIY mods
Started work on the interior. Went to a plastics specialist and picked up 2 sheets of styrene (was cheap, but they only sold 2x1m sheets, got one 1mm thick, and one 2mm thick. Guess I've got styrene for years now ).
Anyways, started with the first part, to cover up the electronics and extend the floor.
Next up a pretty complex part to close off the rear.
Then started work on the rear wheel wells.
Quite a bit of work to get everything to line up to the body, but got it really well fit now.
Next up will probably be the front wheel wells, and a start for the dashboard.
Started work on the interior. Went to a plastics specialist and picked up 2 sheets of styrene (was cheap, but they only sold 2x1m sheets, got one 1mm thick, and one 2mm thick. Guess I've got styrene for years now
).Anyways, started with the first part, to cover up the electronics and extend the floor.
Next up a pretty complex part to close off the rear.
Then started work on the rear wheel wells.
Quite a bit of work to get everything to line up to the body, but got it really well fit now.
Next up will probably be the front wheel wells, and a start for the dashboard.
2mtech
RCC Addict
I guess you got distracted by your LC70 and forgot to finish this one...? ;-)
Did you say this was your first build? I don't like you any more haha. Curious to see how this one comes out too! "thumbsup"
Did you say this was your first build? I don't like you any more haha. Curious to see how this one comes out too! "thumbsup"
IVIaarten
Quarry Creeper
Ow yeh, I haven't updated this one in quite a while have I...
Yeh, was my first one, but did loads of reading/watching before attempting it. It's always nice to learn new things.

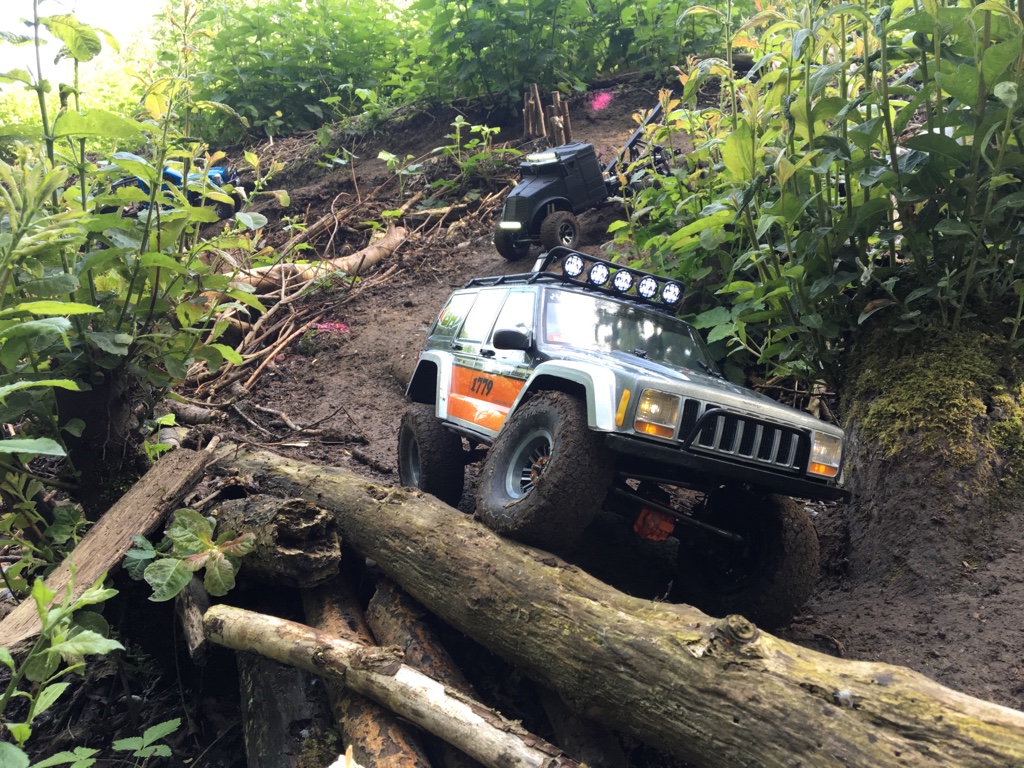

Small update for now; last big trip was the Walk the Trial event in Belgium, Near Antwerp. Went there with some friends who both built a 6x6. Big thanks to Demolition Team for organizing another amazing edition of this event.
Here's some pictures.
As you can see I finished the front bumper, and am really happy with the results. It's tough as nails, and helps the approach angle quite a bit. Emptied out the roof rack for more of a JeepSpeed look, and moved the spare wheel to the rear interior.
Made some progress on the interior. It's basically closed up, and fabbed up some seats out of dense foam with my dremel.
Very nicely done, soldered up bumper, paint, lighting and now interior! G6 pics look good too, looks like time to crawl again!
Edit; you could use a heat gun on low to carefully to permanently bend the grill, your ziptie is working nicely though.
Edit; you could use a heat gun on low to carefully to permanently bend the grill, your ziptie is working nicely though.
IVIaarten
Quarry Creeper
Very nicely done, soldered up bumper, paint, lighting and now interior! G6 pics look good too, looks like time to crawl again!
Edit; you could use a heat gun on low to carefully to permanently bend the grill, your ziptie is working nicely though.
Thanks for the compliments "thumbsup".
Must say I'm still very impressed with the 10-2, but further changes to this truck are on the backburner for a moment now, since I'm having a boatload of fun building my new Trailfinder 2 with LandCruiser 70 body set from Killerbody. The details on the body are simply amazing.
