Beerman's RcBros Berg build (update on page 7)
- Thread starter Beerman Crawler
- Start date
Beerman Crawler
Quarry Creeper
Not much to update but I have made a few changes. Now I'm running the green(medium) losi mini-T springs. This really help to get the rear more forward bite so this really improved the crawler in all areas, especially during side hilling.
I took a few weeks off from crawling to get a few things done around the house and during this time I sent Dlux my V1 front axle shafts to have them upgrade them to the V2 style. The V2 styles has a lot more beef so they are stronger, I have to say its a great product. There is no way I can go back to my 300. Overall I'm very happy with the way the crawler is performing and look forward to more comp's. The next plan I have is to narrow a set of gold voodoo tires, plan on taking out one row of pins. When I get this done I will make sure to post up my results.
I took a few weeks off from crawling to get a few things done around the house and during this time I sent Dlux my V1 front axle shafts to have them upgrade them to the V2 style. The V2 styles has a lot more beef so they are stronger, I have to say its a great product. There is no way I can go back to my 300. Overall I'm very happy with the way the crawler is performing and look forward to more comp's. The next plan I have is to narrow a set of gold voodoo tires, plan on taking out one row of pins. When I get this done I will make sure to post up my results.
Last edited:
Beerman Crawler
Quarry Creeper
Today made a few changes to the crawler that's worth updating. I increase the amount of knuckle weights, I have three ounces per side now. I'm hoping by doing this it will help keep the front end down. I have been so happy with the RcBro knuckle weight system, the adjustability is so nice and convenient. It really helps to fine tune your crawler.
The next change I made was to narrow up some gold voodoo's. I'm running a one inch slw wheel so I wanted to cut out one and a half rows of pins. The first step I did was to cut my pin pattern into the tire, this is the pattern I cut out
After cutting the pin pattern out I started to cut the row out
This is how much tread I cut out
The narrowed one next to stock one.
With the extra tread I cut out I glued it to my controller so when I lay my controller down it won't slid on the rocks.
The next change I made was to narrow up some gold voodoo's. I'm running a one inch slw wheel so I wanted to cut out one and a half rows of pins. The first step I did was to cut my pin pattern into the tire, this is the pattern I cut out
After cutting the pin pattern out I started to cut the row out
This is how much tread I cut out
The narrowed one next to stock one.
With the extra tread I cut out I glued it to my controller so when I lay my controller down it won't slid on the rocks.
Last edited:
crawl-o-matic
www.ottsix.com
Re: Beerman's Berg: RcBro/ Secret Agent Chassis
Nice"thumbsup"
Nice"thumbsup"
Re: Beerman's Berg: RcBro/ Secret Agent Chassis
Darn near half the oregon guys have voodoo's on there rigs and radio's now haha. Looking good buddy! To bad we had to cancel the comp today, but even for us, the crazy high winds and 3-5 inches of rain is enough to call it.
Darn near half the oregon guys have voodoo's on there rigs and radio's now haha. Looking good buddy! To bad we had to cancel the comp today, but even for us, the crazy high winds and 3-5 inches of rain is enough to call it.
Beerman Crawler
Quarry Creeper
I took the crawler out for a farewell crawl. Its time to say goodbye to the secret agent and move on to the RC Bro chassis. I couldn't ask for a better session to say goodby than what I had today. I got some good photo's to share
Beerman Crawler
Quarry Creeper

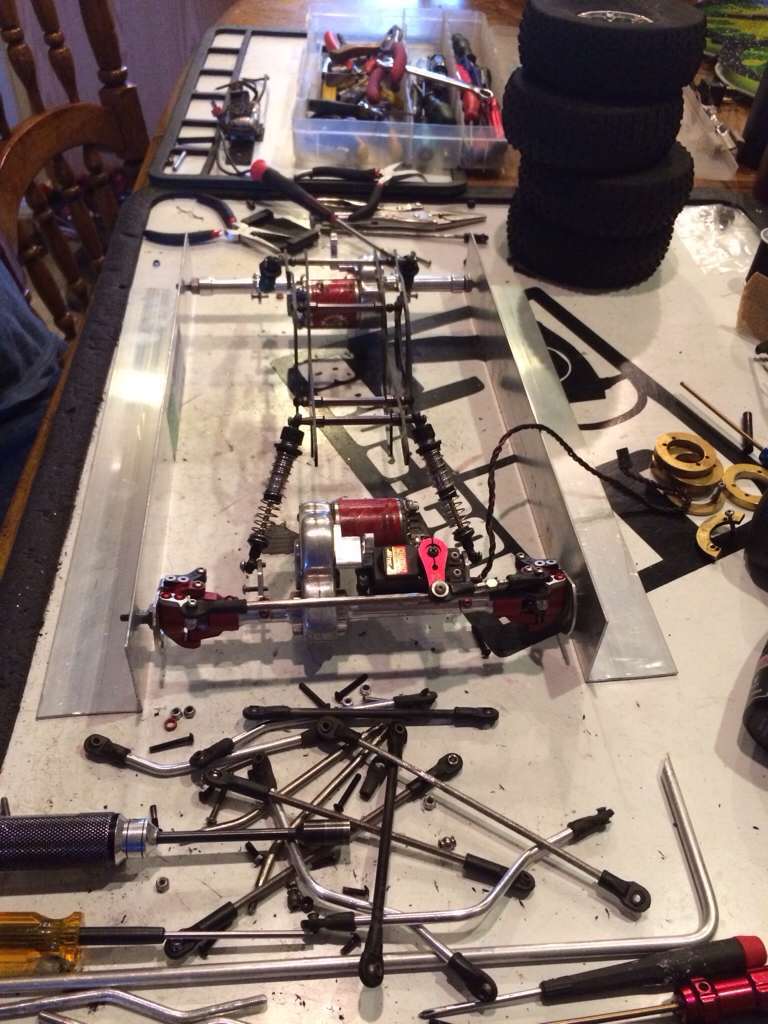

I had the opportunity to get the Rc Bro chassis and I had to pick it up. The carbon fiber on this chassis is super strong, the strongest carbon fiber that I've seen so far. I have seen a few of these chassis in action and love how neutral you can set up the geometry. It makes for a very stable smooth moving crawler. I got a good start on building the links. I have the lower links done and have a mock up set done for the upper links. Once I'm happy with the links I will post up the measurements eye to eye. Here are a few pictures for now. I'm hoping to get outside and take some nicer pictures tomorrow.
Beerman Crawler
Quarry Creeper
So far I have the lower links done so you can see the stance of the crawler. The upper links are just mockups right now so ignore them. I really enjoy the look of this chassis and the stance it gives.
Beerman Crawler
Quarry Creeper
I got the upper links made up and the electronics put back in. I'm hoping to get some crawling in tomorrow but it all depends on the weather. If I can crawl I will post up some pictures. Tonight Tom came up with a battery mount made out of carbon fiber so I can mount my battery to the front axle. It's a sweet simple ideal that works great. The battery is held down with velcro and an O-ring.
Beerman Crawler
Quarry Creeper
Beerman's Berg: RcBro/ Secret Agent Chassis
I got the chassis out two day in a row and all I can say is this thing is ridiculous. I absolutely love this chassis. It's already outperforming the secret agent and I've only gotten two days of driving on it. I can't wait to see how far I can take this chassis. Also really like having my battery mounted on the front axle. The front tire just barely makes contact with the battery but yet it has not been pulled off or come off the axle. Very, very happy with this. Got some pictures to show off the sexy curves I have in my upper links
I got the chassis out two day in a row and all I can say is this thing is ridiculous. I absolutely love this chassis. It's already outperforming the secret agent and I've only gotten two days of driving on it. I can't wait to see how far I can take this chassis. Also really like having my battery mounted on the front axle. The front tire just barely makes contact with the battery but yet it has not been pulled off or come off the axle. Very, very happy with this. Got some pictures to show off the sexy curves I have in my upper links
Last edited:
Beerman Crawler
Quarry Creeper
They are 7075 solid aluminum rod, I get three feet long rods and cut my links from that.
Beerman Crawler
Quarry Creeper
Here are some pictures of Tom making the rear links.
Take a look at how nice the 7075 threads
Take a look at how nice the 7075 threads
Beerman Crawler
Quarry Creeper
Beerman's Berg: RcBro/ Secret Agent Chassis
Crawled a few packs today endearing a little bit of rain. The Rock was slimy wet, hard to walk on, especially hard to crawling on, but overall was happy with the new chassis. The voodoo gold dots narrowed up did great in this wet slimy conditions. Everything was going great until I decided to go play submarine, and a pack later my day was done. Got home and dried everything out especially my electronics and foams. The good thing is it gave me some free time to paint my body panels. Here is a picture from today.
Crawled a few packs today endearing a little bit of rain. The Rock was slimy wet, hard to walk on, especially hard to crawling on, but overall was happy with the new chassis. The voodoo gold dots narrowed up did great in this wet slimy conditions. Everything was going great until I decided to go play submarine, and a pack later my day was done. Got home and dried everything out especially my electronics and foams. The good thing is it gave me some free time to paint my body panels. Here is a picture from today.
Last edited:
Beerman Crawler
Quarry Creeper
The dry out process
Beerman Crawler
Quarry Creeper
Beerman's Berg: RcBro/ Secret Agent Chassis
I got my hands on some sweet RcBros shock bodies tonight. I don't want to sound like a cheese ball and say every part I get is great, but if you look at my list of parts I have great parts, it's hard to say anything bad. But oh my God why are not more people talking about these shock bodies. They are so buttery smooth, you can tell the inner diameter of the shock body is machined to the same tolerance of the machine pistons. It makes for a great fit. I absolutely love the feel that these shocks give my crawler. If anyone is looking for shock bodies these are a must.
I got my hands on some sweet RcBros shock bodies tonight. I don't want to sound like a cheese ball and say every part I get is great, but if you look at my list of parts I have great parts, it's hard to say anything bad. But oh my God why are not more people talking about these shock bodies. They are so buttery smooth, you can tell the inner diameter of the shock body is machined to the same tolerance of the machine pistons. It makes for a great fit. I absolutely love the feel that these shocks give my crawler. If anyone is looking for shock bodies these are a must.
Last edited:
ZZR 1100 Racer
Stephan Hauser / # 7
Re: Beerman's Berg: RcBro/ Secret Agent Chassis
nice rig and true words"thumbsup"
Beerman Crawler
Quarry Creeper
Beerman's Berg: RcBro/ Secret Agent Chassis
I have received a few questions regarding the links so I thought I'd give a little more information. I use a 10/32 die and put it in the die holder. Slip the die over the top of the aluminum rod with a squirt of WD-40 and twist, it gives you gorgeous threads with 7075. Another step you have to do is drill your rod end out to 5/32. I do this by hand and use a 5/32 drill bit. Also here are some pictures to show the bend I have in my upper rear links. Really it's just one smooth bend to clear the motor.
I have received a few questions regarding the links so I thought I'd give a little more information. I use a 10/32 die and put it in the die holder. Slip the die over the top of the aluminum rod with a squirt of WD-40 and twist, it gives you gorgeous threads with 7075. Another step you have to do is drill your rod end out to 5/32. I do this by hand and use a 5/32 drill bit. Also here are some pictures to show the bend I have in my upper rear links. Really it's just one smooth bend to clear the motor.
Last edited:
Beerman Crawler
Quarry Creeper
Beerman's Berg: RcBro/ Secret Agent Chassis
4 lbs 2.7 ounces.
4 lbs 2.7 ounces.
