What the newest cheap servo hotness?
- Thread starter Duuuuuuuude
- Start date
JSterrett
Rock Crawler
Looks promising, especially the steel gears... Interested to see what the pricing comes in at, as I've had good luck with PowerHD in the past.A new PowerHD
Sent from my LGMP450 using Tapatalk
Sent from my SM-G970U using Tapatalk
TheLetterJ
RCC Addict
How 'bout this little guy? https://www.amazon.com/gp/aw/d/B01LSKVGP8/ref=cm_cr_arp_mb_bdcrb_top?ie=UTF8 Rated to 7.4v and puts out comparable torque to most other metal geared micro servos. It sure is skinny, but I don't think that would be a problem for mounting in place of a typical micro servo?
Those PowerHD servos look nice. I've had no problem with their other servos. I just wish all servos would come with all black cases. It looks silly to have a bright orange Savox perched on top of an axle.
TheLetterJ
RCC Addict
That one looks promising, standard micro size, above average power, and 25t so I actually have servo horn options. I could definitely afford to turn my bec down a bit to run it, my steering servo (Futaba A700) is supposed to still make 944oz of torque at 6.6v!
WHITE-TRASH
I wanna be Dave
Those power HD smell like jx from here.
soze
I wanna be Dave
Bust out the paintbrush. :lmao:
Have you ever seen me paint? I'd even screw that up somehow! :lmao:
TRX-4 micro option - Power HD TR-4 Waterproof 7.4V Micro Servo 2.6kg/.10s - looks like they will run about $18:
https://www.asiatees.com/article?Power-HD-TR-4-Waterproof-7.4V-Micro-Servo-2.6kg%2F.10s&id=3336
Power HD releases the new TR-4 fully waterproof micro servo that takes up to 7.4v with full metal gears. Perfect for shifting and diff lock servos.
Torque(4.8V): 1.8 kg-cm (25.0 oz/in)
Torque(6.0V): 2.2 kg-cm (30.6 oz/in)
Torque(7.4V): 2.6 kg-cm (36.1 oz/in)
Speed: 0.15 sec (4.8V) │ 0.12 sec (6.0V) │ 0.10 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 16.0 g (0.56 oz)
Gear Type：Copper&Alu
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 50hz
Size：22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
https://www.asiatees.com/article?Power-HD-TR-4-Waterproof-7.4V-Micro-Servo-2.6kg%2F.10s&id=3336
Power HD releases the new TR-4 fully waterproof micro servo that takes up to 7.4v with full metal gears. Perfect for shifting and diff lock servos.
Torque(4.8V): 1.8 kg-cm (25.0 oz/in)
Torque(6.0V): 2.2 kg-cm (30.6 oz/in)
Torque(7.4V): 2.6 kg-cm (36.1 oz/in)
Speed: 0.15 sec (4.8V) │ 0.12 sec (6.0V) │ 0.10 sec (7.4V)
Operating Voltage：4.8 ~ 7.4 DC Volts
Weight: 16.0 g (0.56 oz)
Gear Type：Copper&Alu
Operating Temperature: -20℃~60℃
Working frequence：1520μs / 50hz
Size：22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in)
That is awesome! About time.
Agreed!
"thumbsup"
And already showing up places:
https://usa.banggood.com/Power-HD-TR-4-Mini-7_4V-2_6KG-Waterproof-Metal-Gear-Servo-for-TRX4-RC-Vehicles-Model-Parts-p-1547211.html?gmcCountry=US¤cy=USD&createTmp=1&utm_source=googleshopping&utm_medium=cpc_bgcs&utm_content=frank&utm_campaign=pla-usg-brand-topacc-pc&ad_id=350555099703&gclid=CjwKCAjw8ZHsBRA6EiwA7hw_sfRBvksaOO8IsADdbmxE8xqMtkKt-Z9cdJNEciFYsjM2aMBjbeGh8BoCwCQQAvD_BwE&cur_warehouse=CN
themountain
I joined the Band!
:shock::shock: great !! But two weeks too late , bollocks:ror:
Last edited:
DukeMinnix
Rock Crawler
a more accurate statement about myself could never be spoken :lmao:
iplaywithrocks
Rock Stacker
What’s the difference/ benefit to core or coreless and digital servos
Ordered this one to try out - has 2 different specs quoted, will wait to see what the packaging states upon arrival:
DS3235SSG Coreless Servo
https://www.amazon.com/gp/product/B07SWW9NDR/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
It's another DS-branded servo, and mentions IP66 water-resistance. Fairly priced at around $37.
DS3235SSG Coreless Servo
https://www.amazon.com/gp/product/B07SWW9NDR/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
It's another DS-branded servo, and mentions IP66 water-resistance. Fairly priced at around $37.
JSterrett
Rock Crawler
Interesting. Definitely keep us updated...Ordered this one to try out - has 2 different specs quoted, will wait to see what the packaging states upon arrival:
DS3235SSG Coreless Servo
https://www.amazon.com/gp/product/B07SWW9NDR/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
It's another DS-branded servo, and mentions IP66 water-resistance. Fairly priced at around $37.
Sent from my SM-G970U using Tapatalk

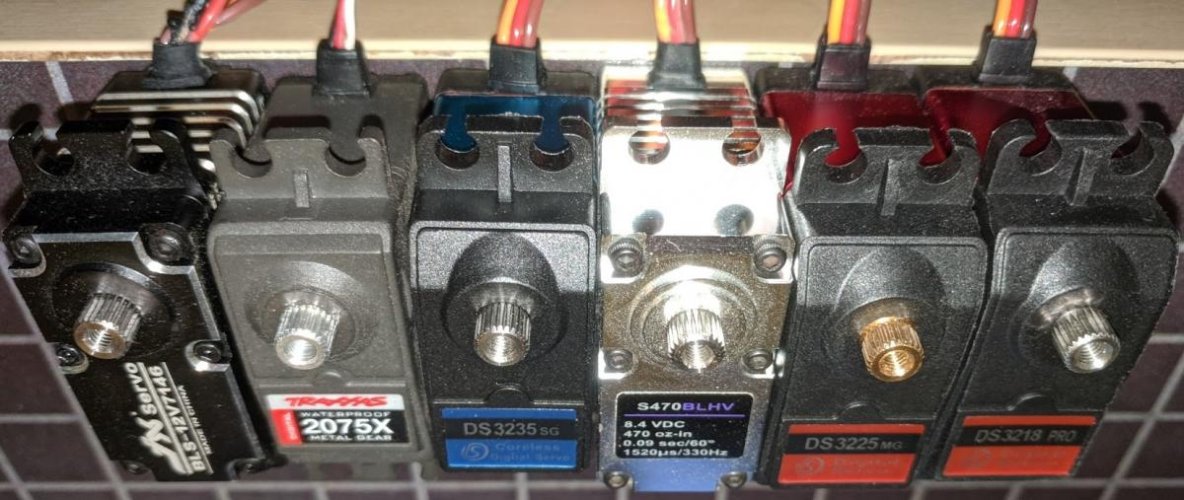

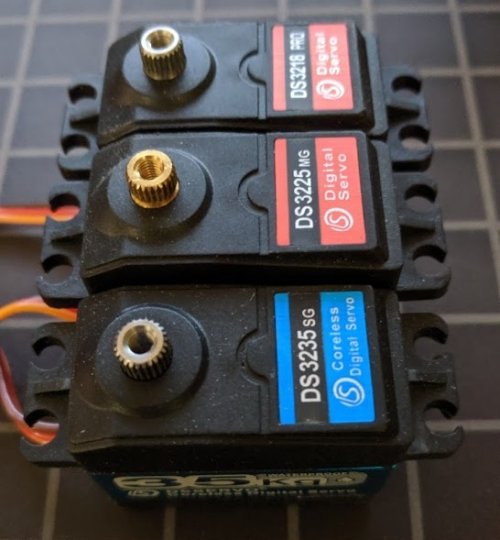

Got this servo today from Amazon - took some pictures comparing it in case height to other servos:
DS3218 Pro, DS3225, ProModeler PM470, the new DS3235sg, Traxxas 2075X (dead), JX BLS-12V7146 (melted wiring exiting case)
It's exactly the same size as the Traxxas servo, and shorter than the other 2 DS servos - making it an easier swap for most RTR servos.
We shall see how it performs... I'll report back to this thread.
Attachments
themountain
I joined the Band!
punkindrublik
Quarry Creeper
My go-to "thumbsup"
