Soze's GMADE GOM GR01 Build

soze · Oct 27, 2017

soze · Oct 27, 2017

I forgot to take some photos during the beginning steps, but I'll remember going forward.

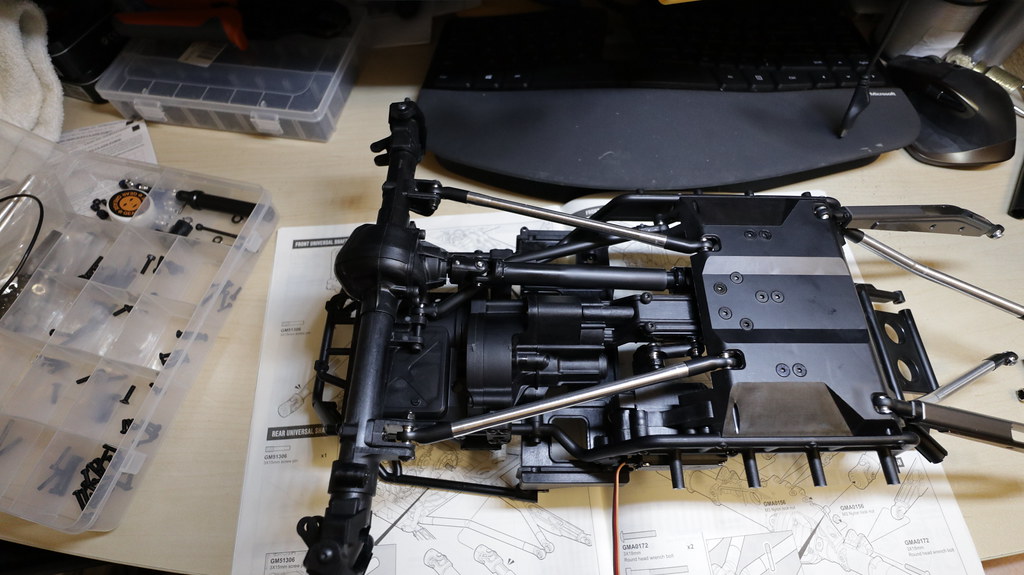

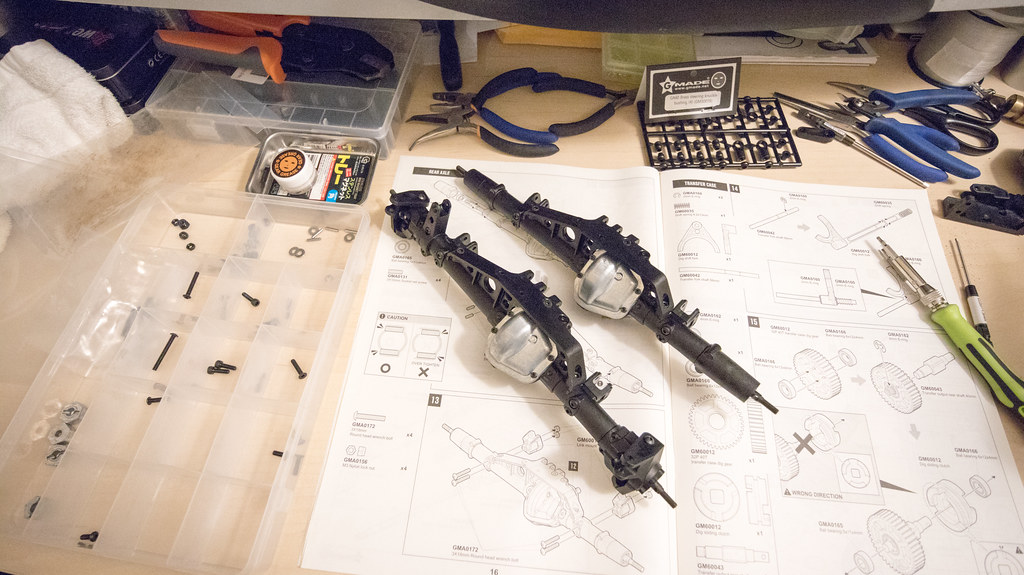

Steps 1-13: Front and Rear Axles

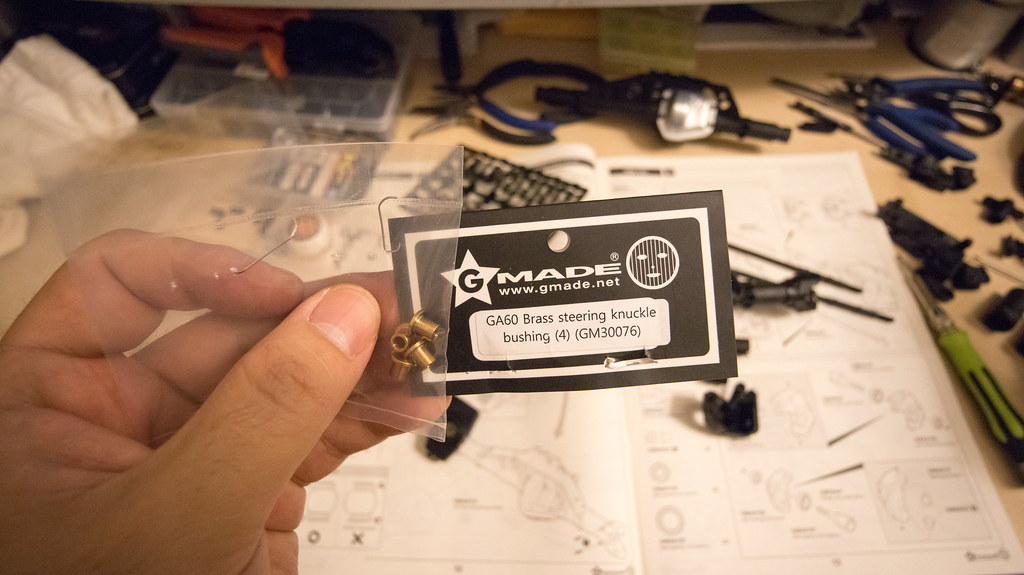

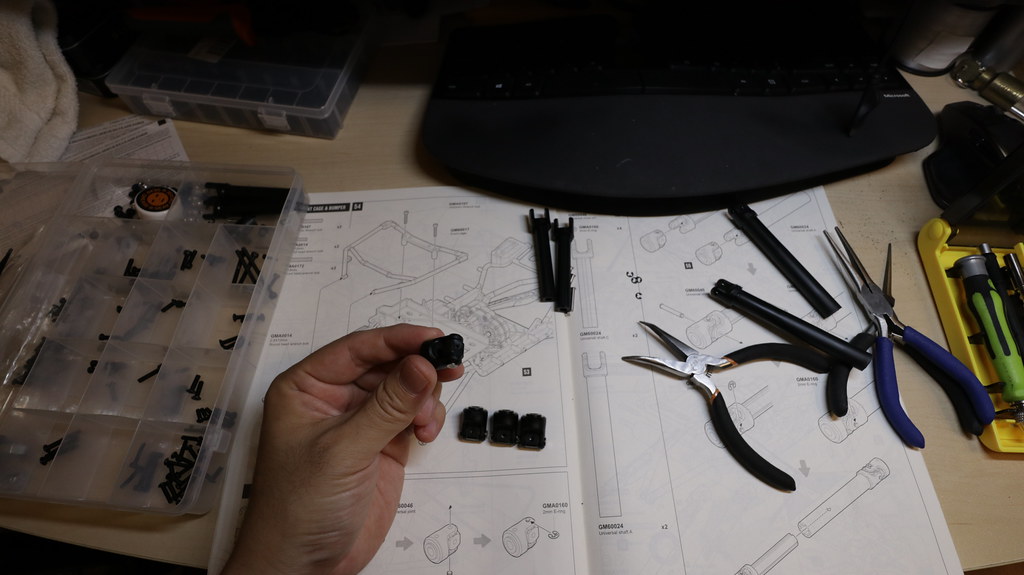

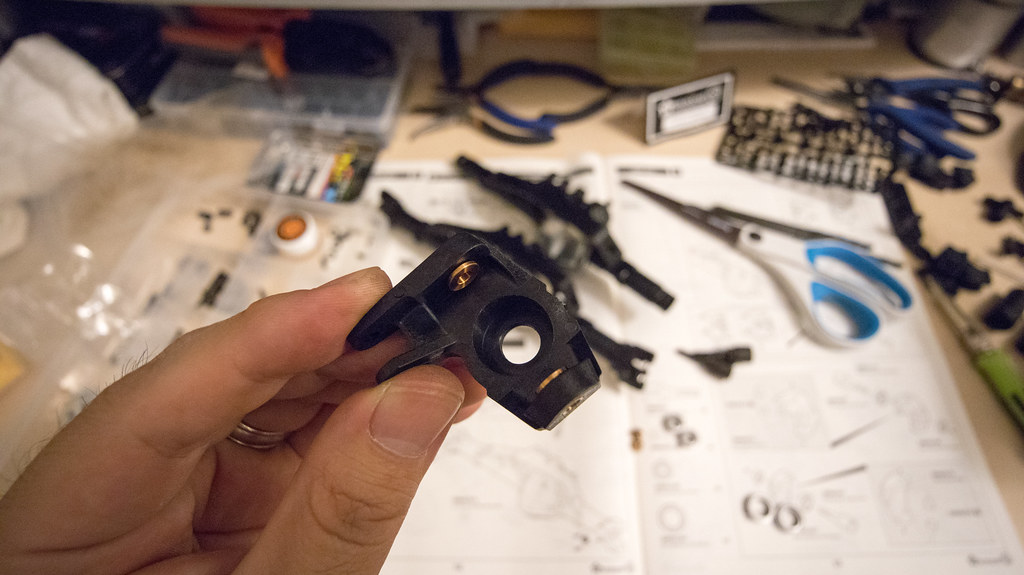

GMADE GA60 Brass steering knuckle bushing (4) GM30076

TooOldForThis · Oct 28, 2017

Where did you find the sway bar? The few places I've seen it listed all seem to be out of stock at the moment.

soze · Oct 28, 2017

TooOldForThis said:
Where did you find the sway bar? The few places I've seen it listed all seem to be out of stock at the moment.

I bought it off ebay when the kit came out.

Sent from my LG-H931 using Tapatalk

Teng · Oct 28, 2017

Sometime ebay is a good choice and Ya, Congratulations on your new toy"thumbsup"

soze · Oct 31, 2017

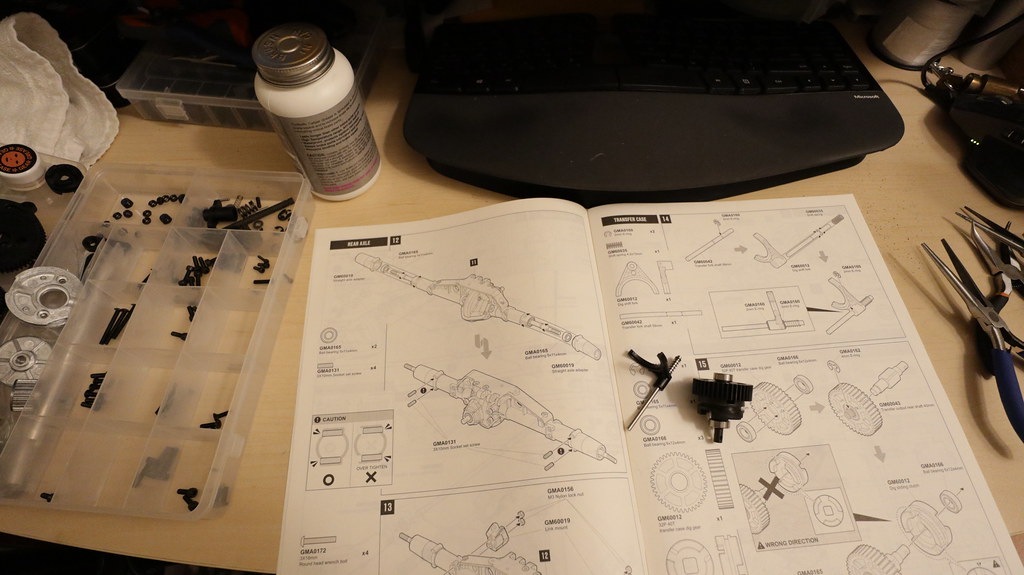

Used Versachem Brake Caliper Grease to grease the gears.

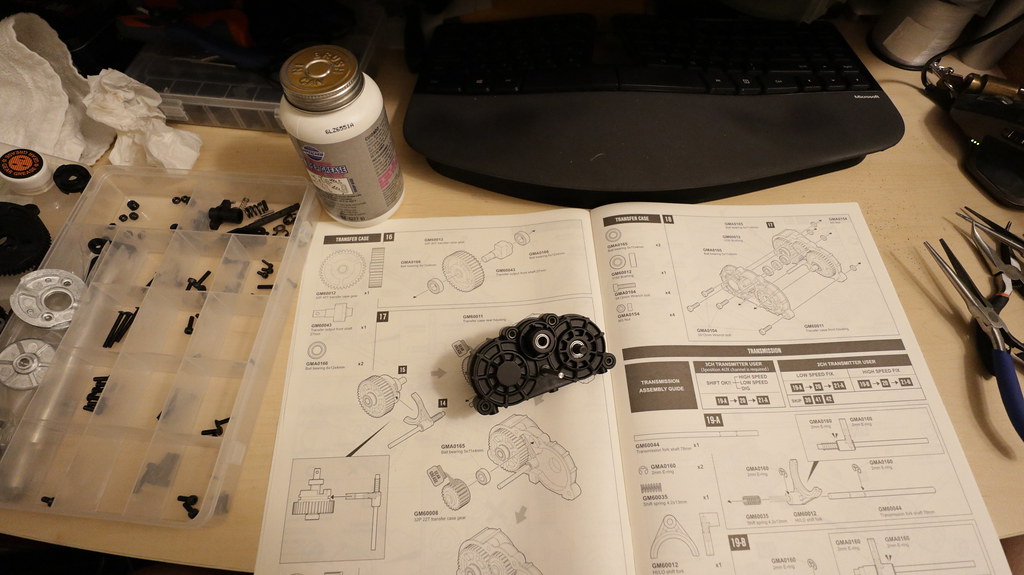

Steps 14-18: Transfer Case

soze · Nov 5, 2017

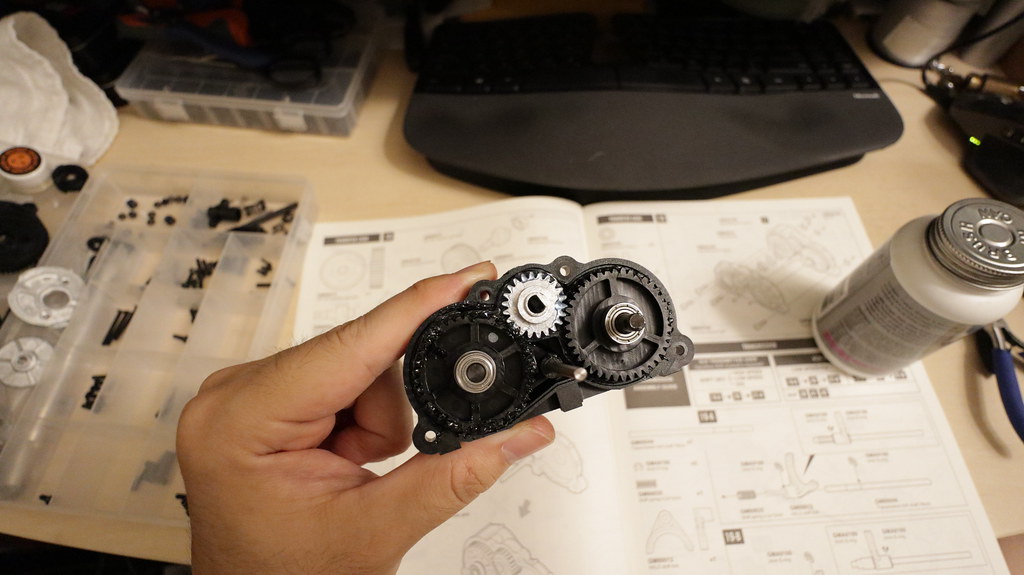

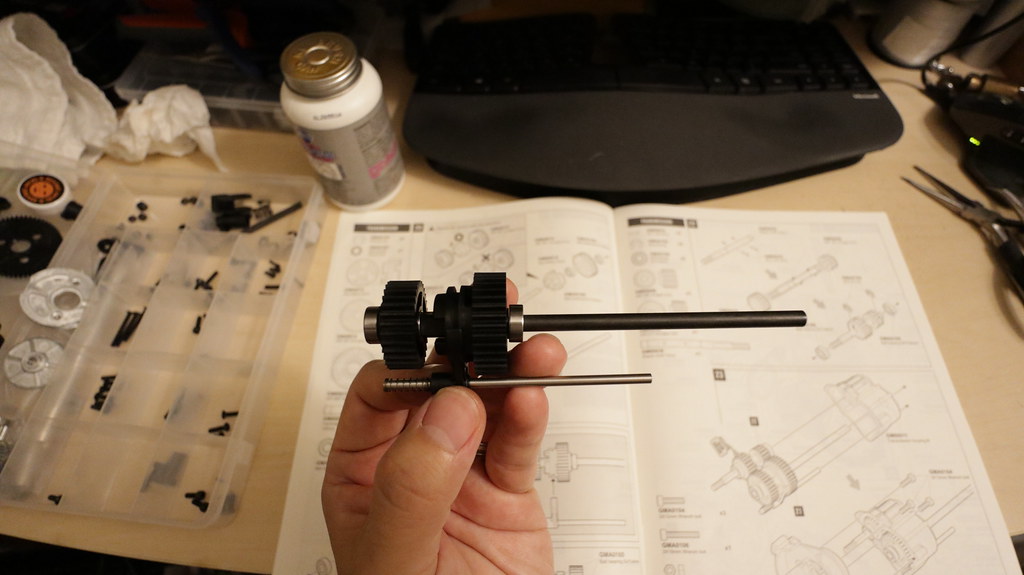

Used Versachem Brake Caliper Grease to grease the gears.

Also added the GR01 Aluminum slipper plate (GM30073).

Temporarily using a SkyRC Ares Pro 540 Competition 8.5T (4100kv) brushless motor for now. If I use this, I'll be using the Castle Mamba X Esc.

If I go the brushed route, I'll probably use the Hobbywing 1080 Esc + Maybe the Traxxas Titan 21T.

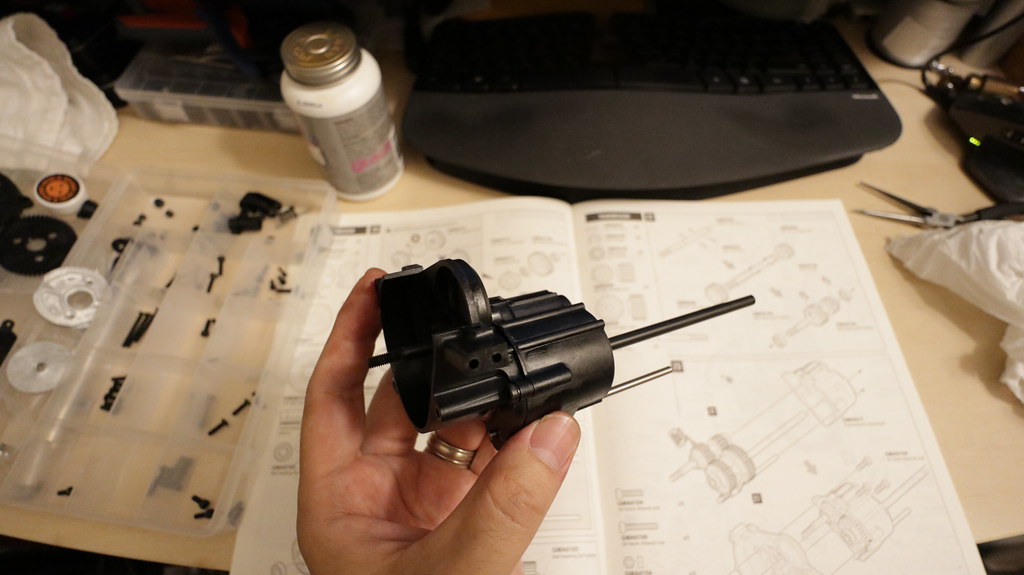

Steps 19-27: Transmission

JatoTheRipper · Nov 6, 2017

Those axles are so good looking. I'm looking forward to watching this build! "thumbsup"

soze · Nov 9, 2017

Steps 28-37: Links

Bought the upgraded trailing arms

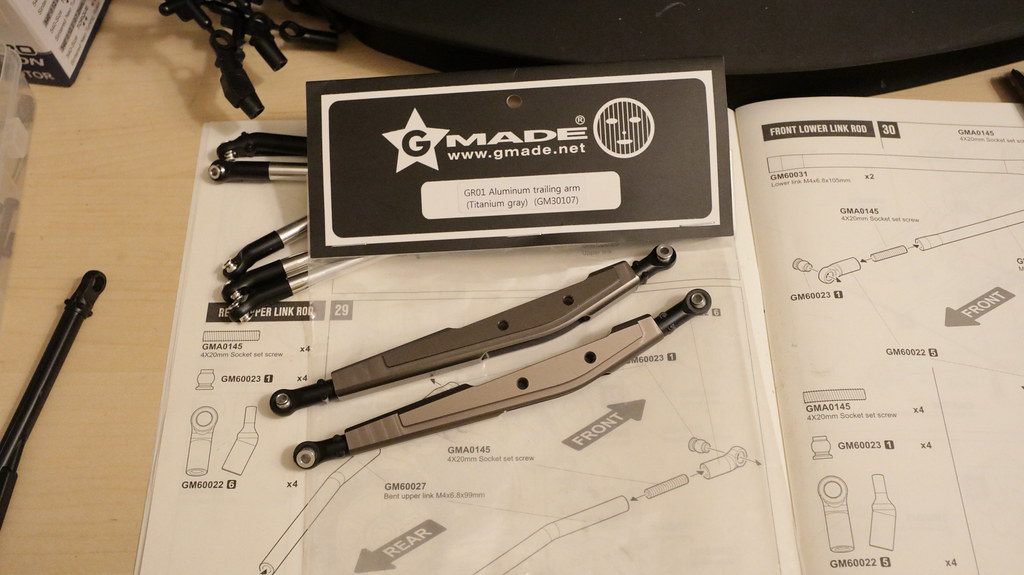

Comparison of stock trailing arms with the upgraded ones

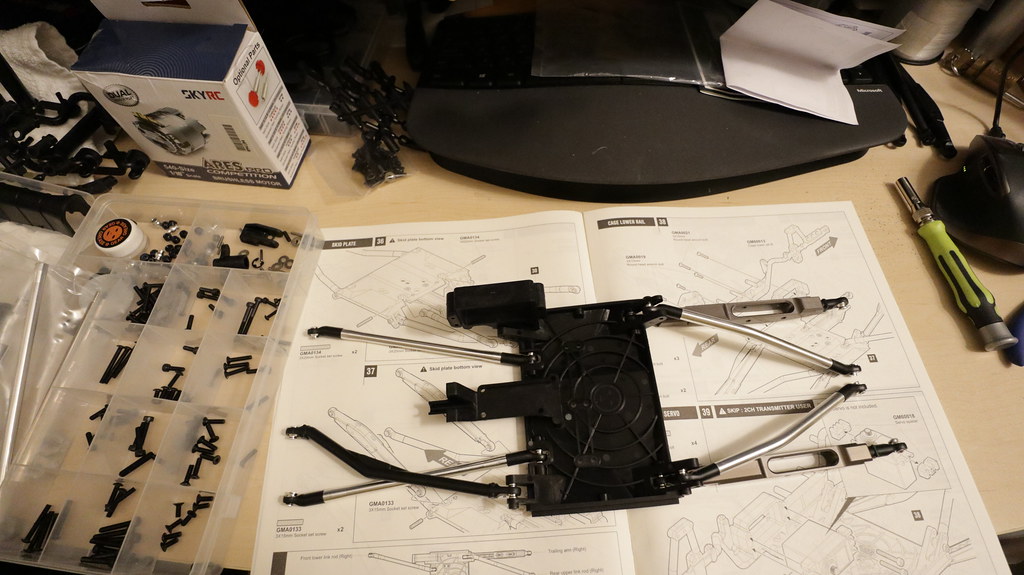

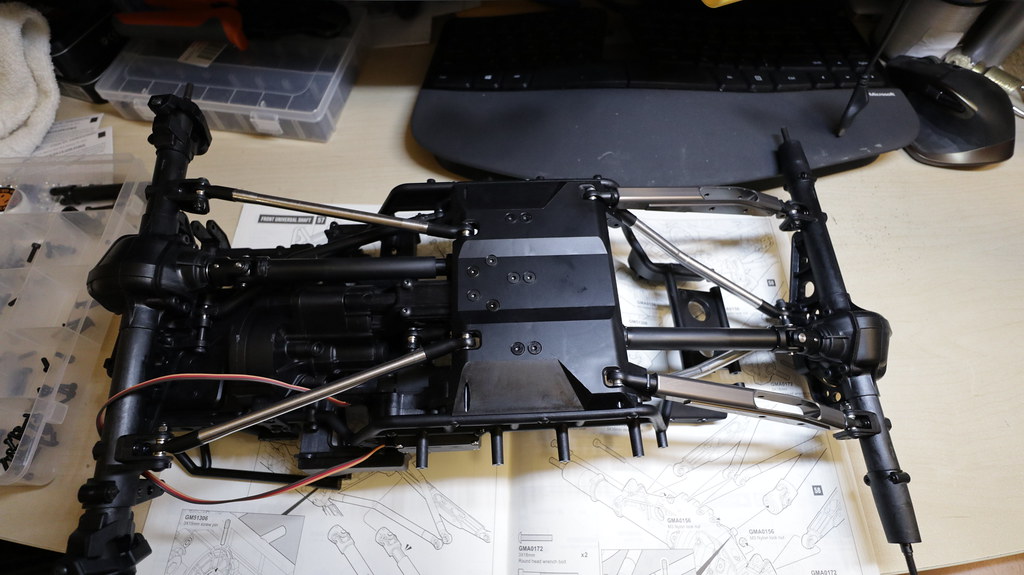

Links attached to skid

soze · Nov 9, 2017

Steps 38-45: Lower Chassis Part 1

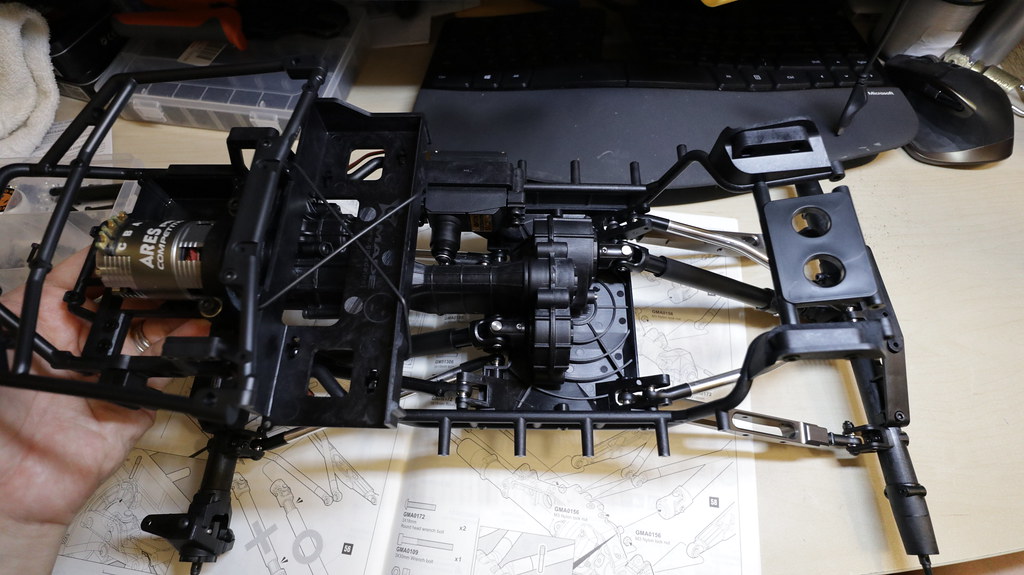

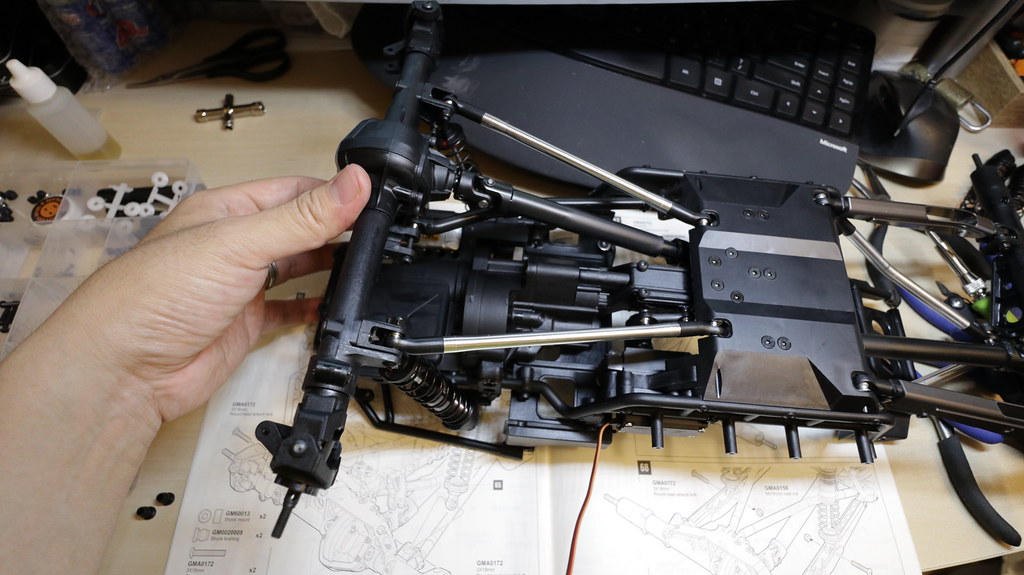

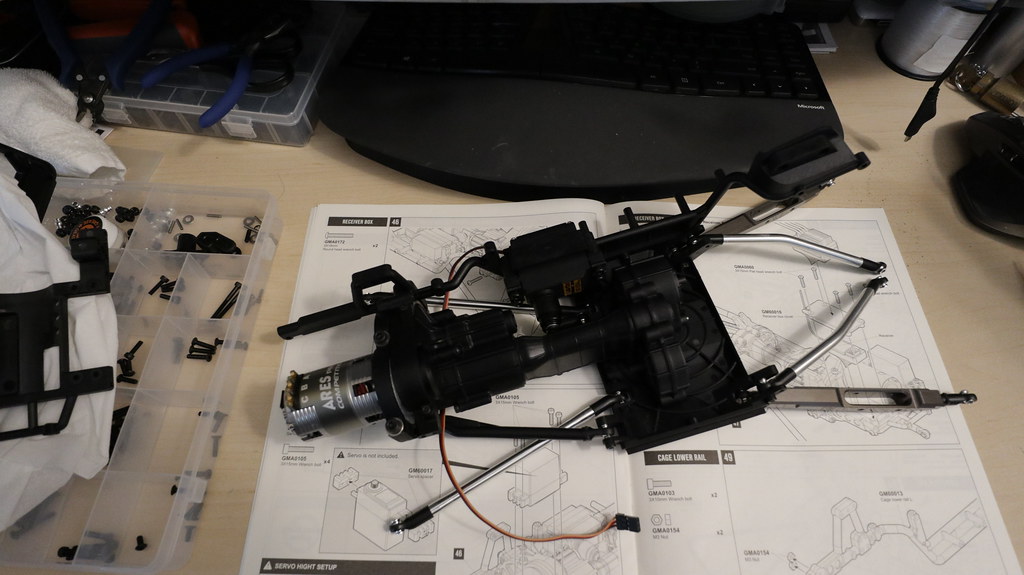

Transfer case, shift servo (Savox SC-0254mg), and transmission attached to skid. Using a SkyRC Ares Pro 8.5T (4100kv) brushless motor for now.

Shift servo calibration using the 3ch 3position switch on the FlySky GT3C

soze · Nov 9, 2017

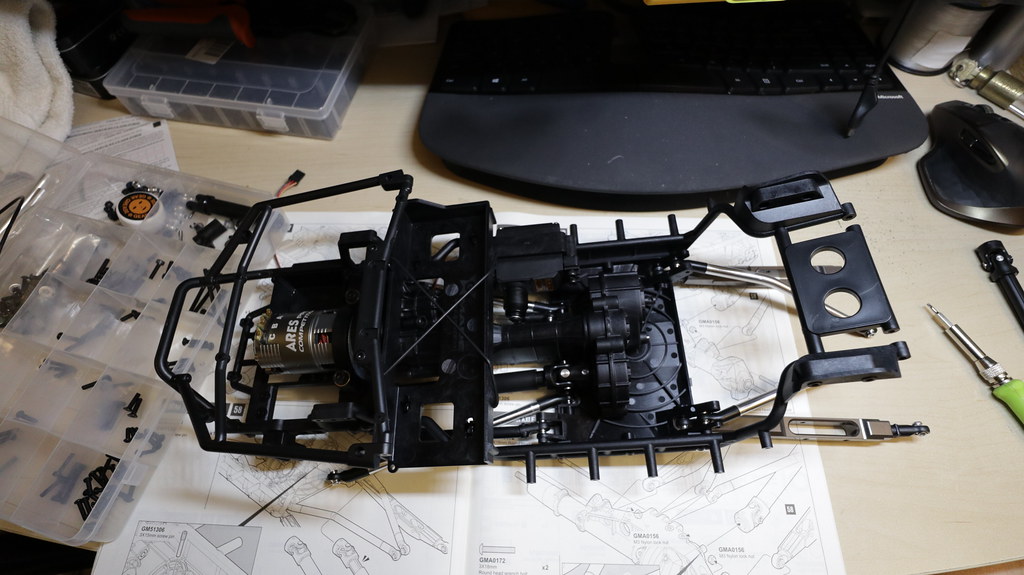

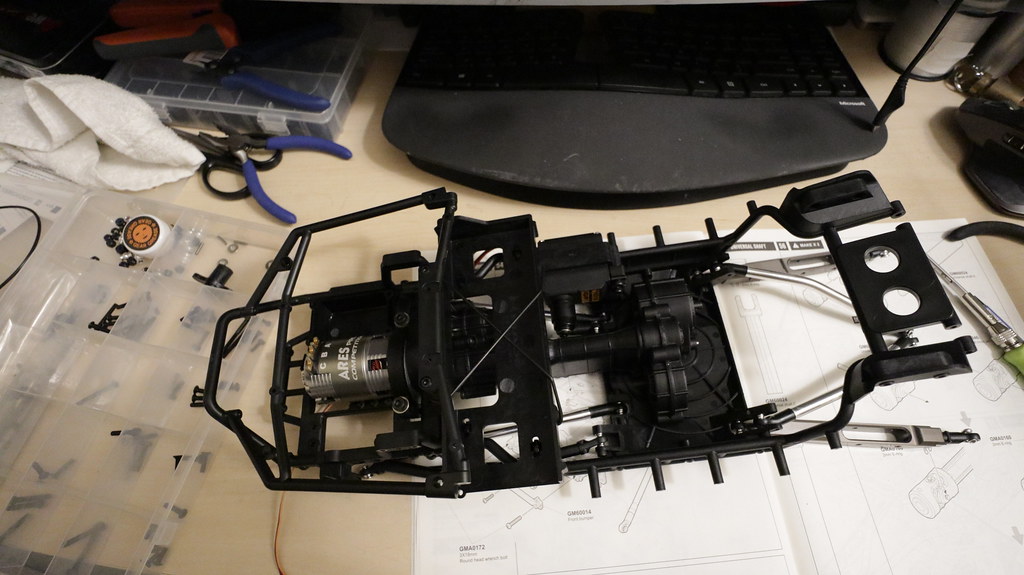

Steps 46-54: Lower Chassis Part 2 - Lower and upper front cage, battery tray, driver's side chassis rail.

soze · Nov 9, 2017

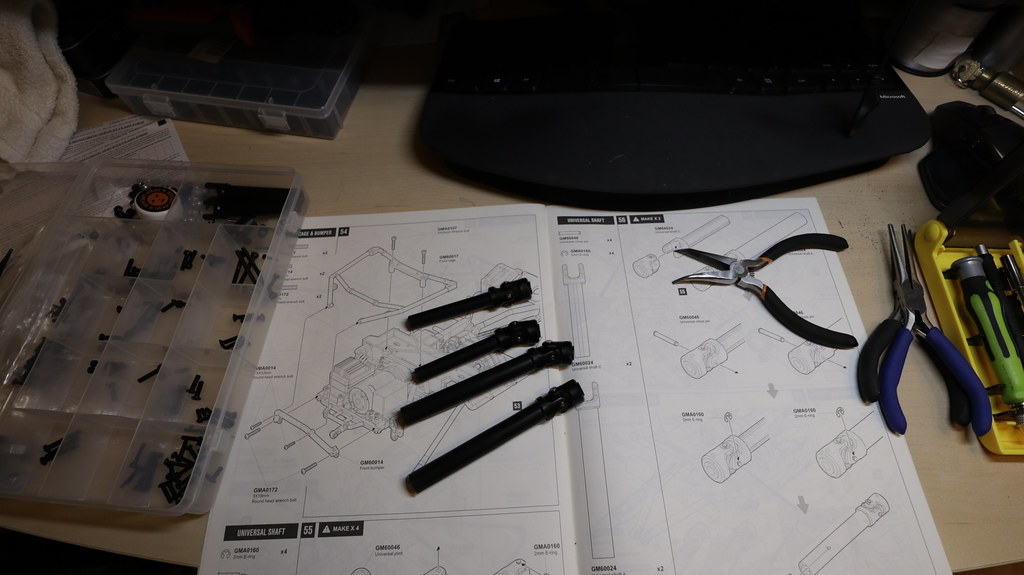

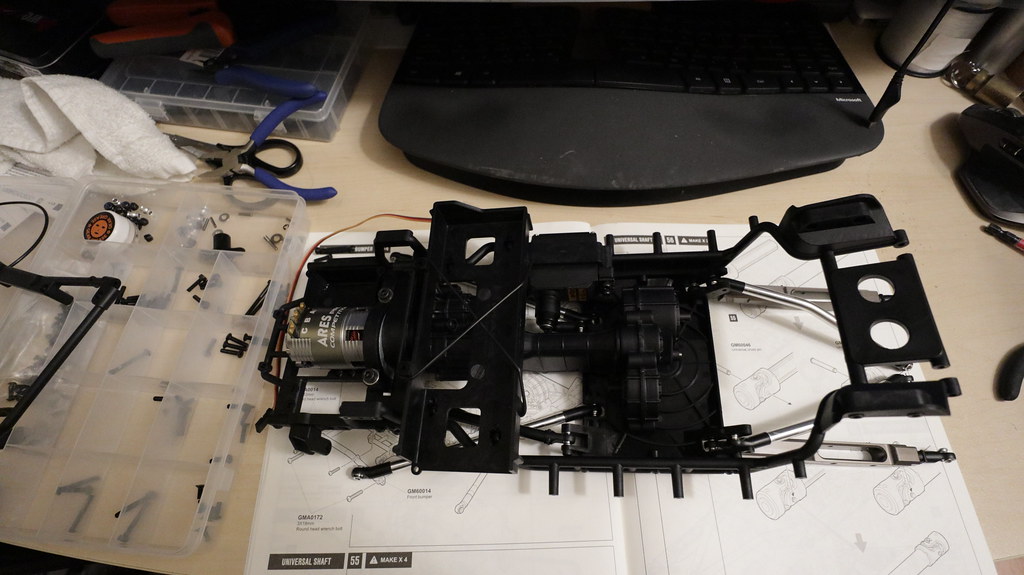

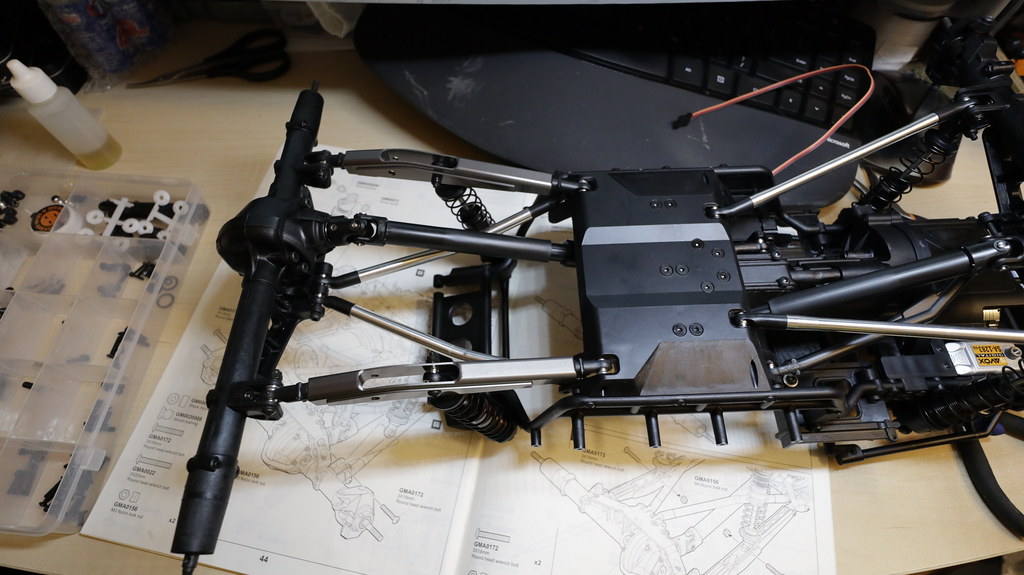

Steps 55-60 - Drive Shafts, Attaching Axles to chassis.

soze · Nov 9, 2017

Step 47: Steering Servo

I skipped this step earlier, because I'm using the Savox SC-1283SG Servo.
The kit comes with pre-molded servo spacers that encase the servo ears. They are pre-molded to fit most servos that use thinner plastic servo ears.
The Savox 1283 is metal cased, and has thicker servo ears so the pre-molded servo spacer didn't fit.

What I ended up doing was to use Yeah Racing M3 3mm spacers to space the servo up.

soze · Nov 9, 2017

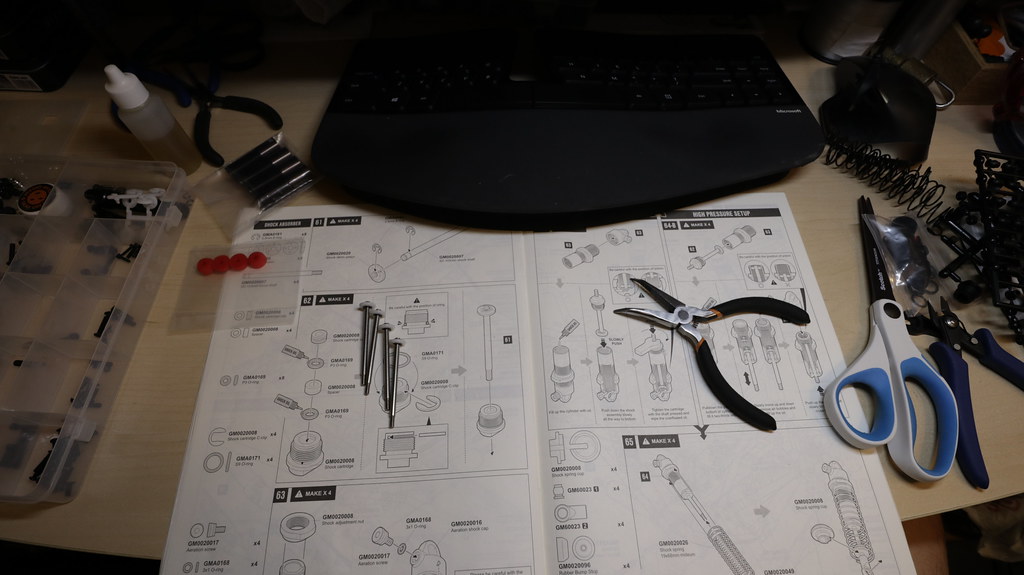

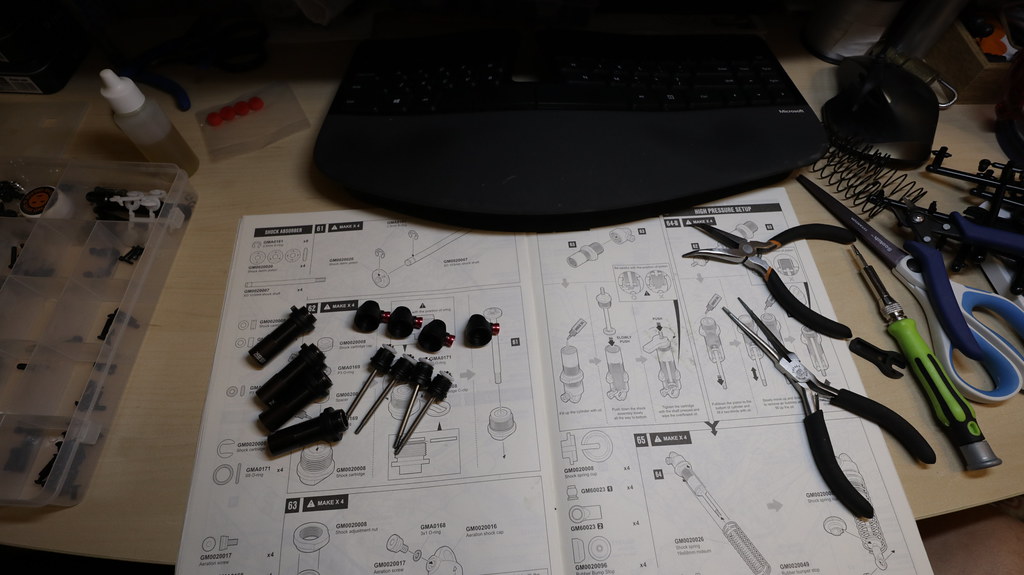

Steps 61-68: Shocks

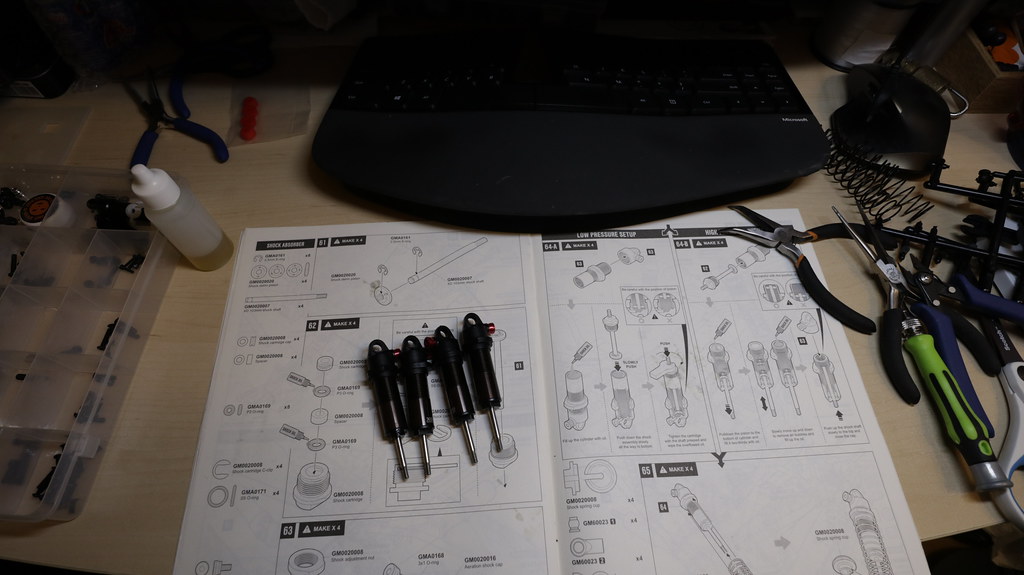

I really need to get some more specific tools to do some of these build steps like the shocks. I'm sure I can do a much better job, but for now I'll keep winging it and improvising with the tools I have.

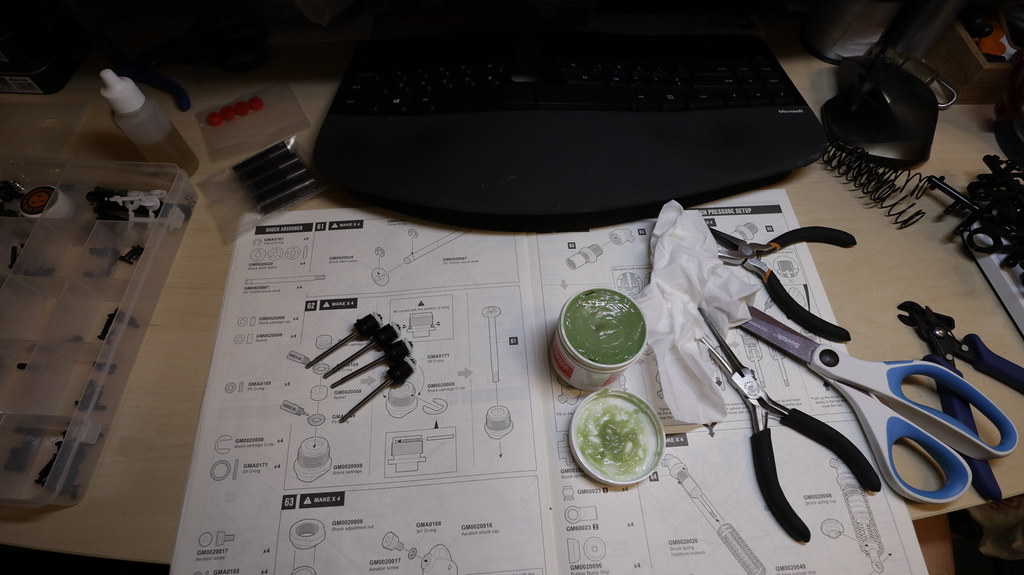

Applying some Noleen grease (found on eBay) (thanks Jato!)

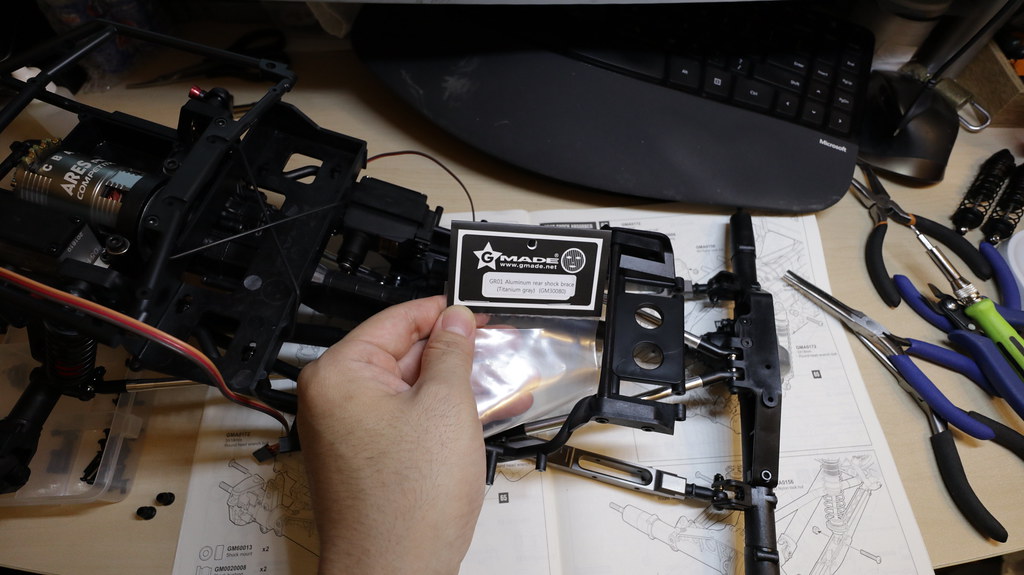

Bought the upgraded metal rear shock brace for the GOM

soze · Nov 9, 2017

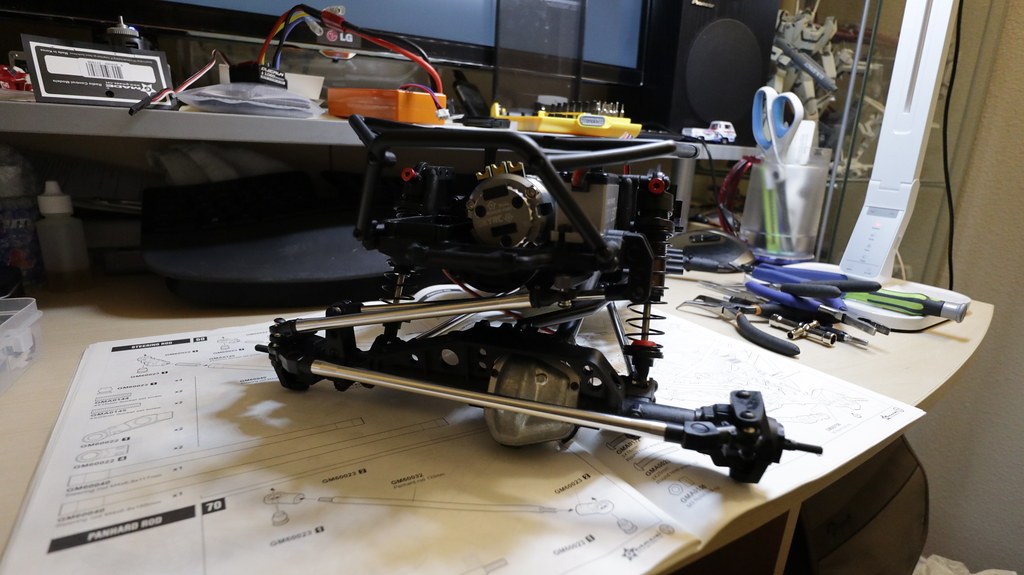

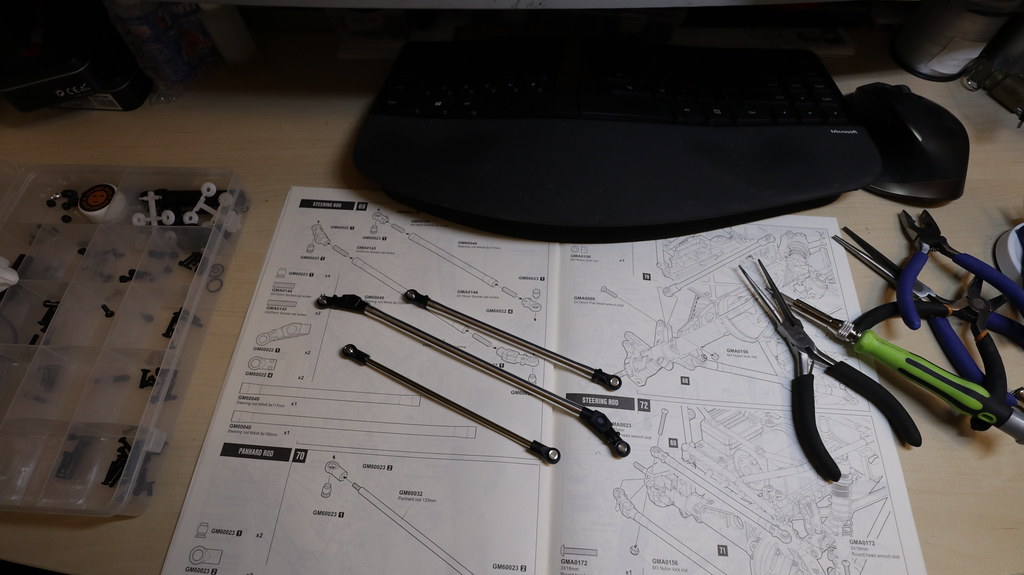

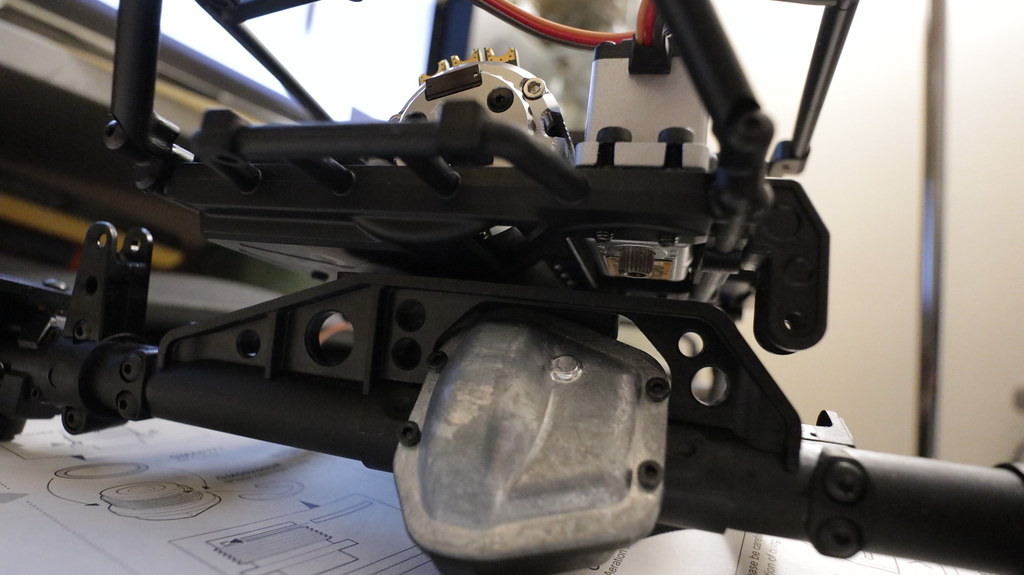

Steps 69-74: Steering & Panhard Links/Rods

So, I did run into a snag here. The panhard axle mount that the panhard rod attaches to on the axle uses a countersunk screw to secure it into place. The "eye" of that mount for that countersunk screw isn't very sturdy.

Well... like someone from another forum that did the same thing that I didn't really remember until I did it myself.... I overtightened it by hand and "split" goes the eye of the panhard mount. Grrrr :evil:.

It will hold for now as the other half of the eye is not broken.

Anyway, I ordered the sprue that contains that particular part for now, while I wait for the upgrade metal part to show in stock at vendors. The panhard axle mount metal upgrade is one part that I WILL BE DOING.

soze · Nov 9, 2017

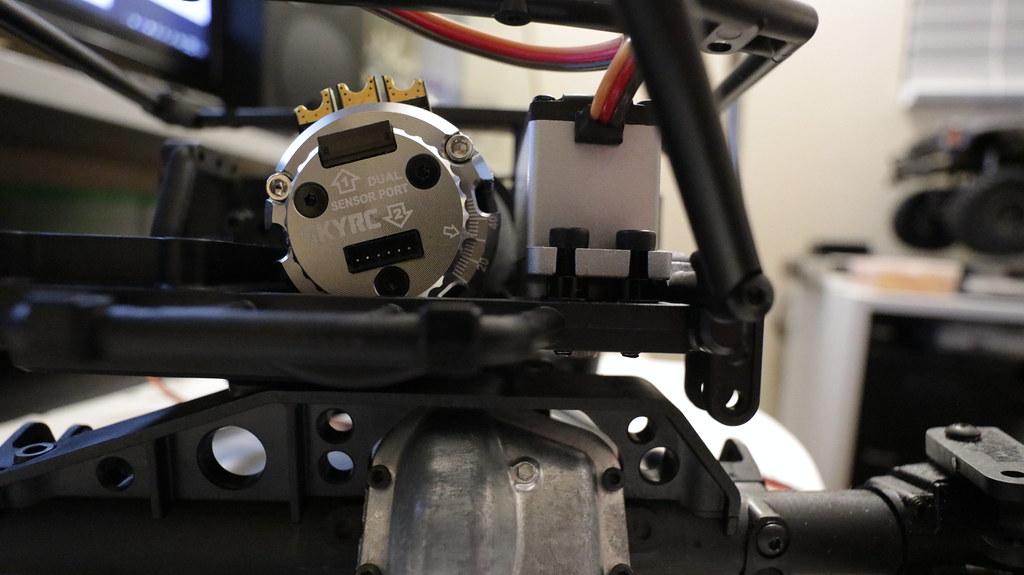

So, I had some time to test fit the Castle Mamba Monster X in this truck.

It does not fit in the front.... Too darn big. I guess I'll have to save it for the Bomber.

After measuring the area above the receiver box that I have to work with.... the smaller Mamba X looks like it will be a spot on fit.

Time to order a Mamba X...

Roach374 · Nov 10, 2017

soze said:
So, I had some time to test fit the Castle Mamba Monster X in this truck.

It does not fit in the front.... Too darn big. I guess I'll have to save it for the Bomber.

After measuring the area above the receiver box that I have to work with.... the smaller Mamba X looks like it will be a spot on fit.

Time to order a Mamba X...

Any pictures? Could it fit with a bit of dremelling? Inquiring minds want to know!

Roach374 · Nov 10, 2017

Anyone aware of metal hop-up gears for the transfer case / gear box? I don't see anything on RRP yet, and I'm not nuts about plastic gears on principal (though I don't have any data to suggest these would be an actual problem for the GOM).

soze · Nov 10, 2017

Roach374 said:
Any pictures? Could it fit with a bit of dremelling? Inquiring minds want to know!

I'll take some later, but really you don't want to. You could put it there, it's just be sticking out the side of the front passenger side.

The area above the receiver box can comfortably fit... 55-56mm x 37mm

Mamba X is 54.4 x 35.2 x 30mm (height not an issue)

soze · Nov 10, 2017

I've succumbed to ordering from JunFac. Will take pictures of the new parts when they come in.
