Scale Crawler Picture Archive (PICTURES ONLY!)

[KeithLuneau]

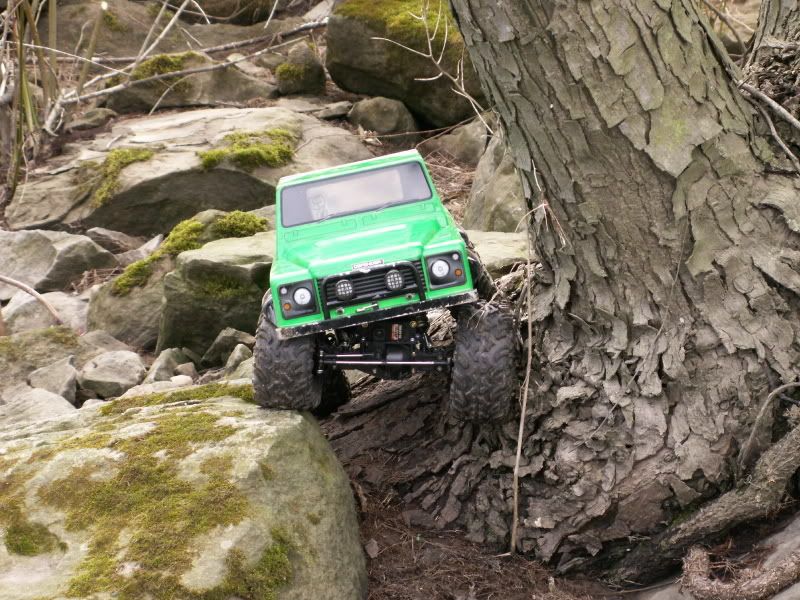

Here's one of mine...

Truck Base : Custom CNC chassis from REC

Body: HPI Land Rover

ESC: Novak 610HRV (old school!)

Motor(s): Permax 600

Servo(s): Unknown brand high torque metal gear

Trans: Stampede

Axles: Run of the mill TLTs

Tires: Geolandars on narrowed Pede rears

WB: 11.25"

Overall Width: 9.25"

Diff clearance: ~1"?

Center Chassis clearance: 'bout 3"

Overall height: about 9.5"

Weight: TBD

More pictures can be found here - http://www.scale4x4rc.org/gallery/thumbnails.php?album=64

Others are here - http://www.scale4x4rc.org/gallery/index.php?cat=10001



[fokai]

Bruiser Scaler

Truck Base :Tamiya Bruiser

Body:Tamiya Bruiser

ESC:Mamba 25

Motor(s):RevolveR 2

Servo(s):HS645-MG

Trans:Stampede

Axles:TLT locked with full bearings

Tires: HPI Geolandars

Weight: 5lbs.

Other: Four-linked rear, diaz design leaf springs up front, fat rock axle-c's.



[wiebs6]

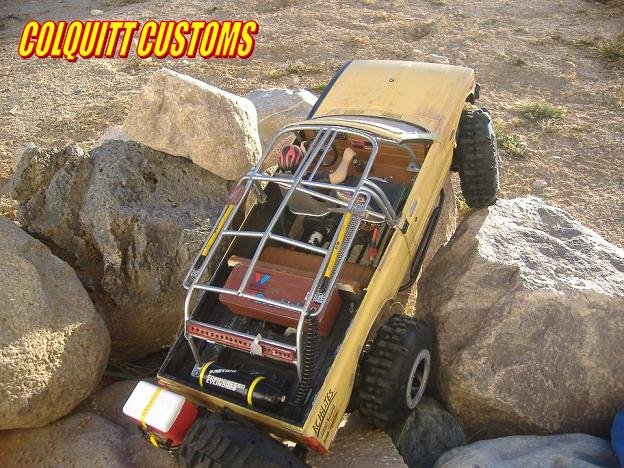

[ColquittCustom405]

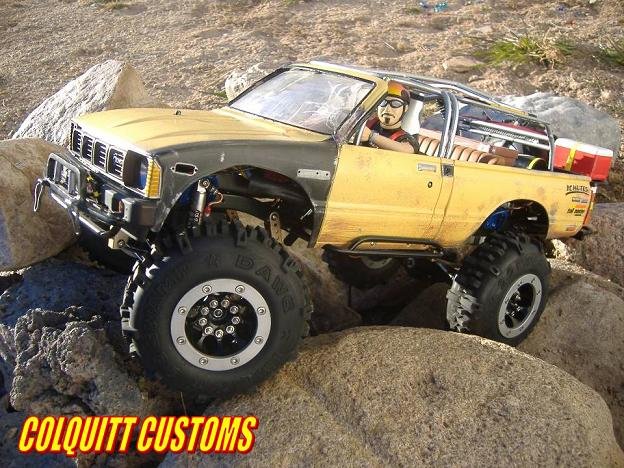

Bruiser
-EMaxx tranny
-TLT axles
-Bruiser Chassis
-Novak SD ESC
-Integy 55t motor
-RC4WD beadlocks



[tz-01]

this is my high lift
3 speed trany
lockable diffs
2.2 swamp dogs
shackle revesal
http://www.putfile.com/pic.php?img=4792538



[west virginia krawler]

Everythings custom

frame= custom
body= effed up rubi
motor= integy 55t
tranny= XXXT
tires= boggers
axles= tlt locked up
other= custom bumpers, custom leaf springs, custom roll cage, and leaf spring mounts



[axelsnapr]

Bronco Scaler

Here is my latest project. I won the body from "RCP CRAWLERS" at a comp this year! The chassis is homemade. It's your basic rig! 55turn, tlt axles, swampers, It's got a host of scale goodies on it! I am work'n on a winch for it right now. Sorry bout pic quality, it's from a cel!



[PinchFlat]

My K2-3L 2.2 class rig (I know they are 1.9 rims but under the UTRCRC STR rules it is a 2.2 - 3.75" tire height max in 1.9 class) Besides... 2.2 rims don't look scale at all well passable is they have a 5" tire on them.



[ARMRASTLER]

Today In Moss Landing

CRAWLING AROUND MOSS LANDING
3/11/07



[1BadJeepBruiser]

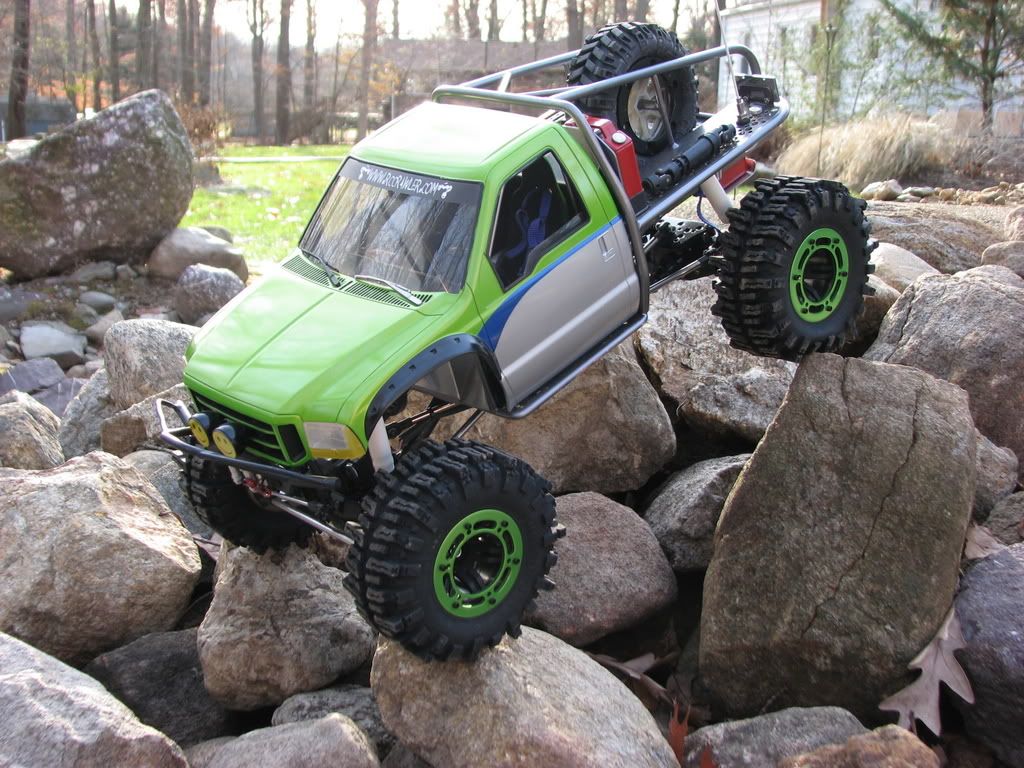

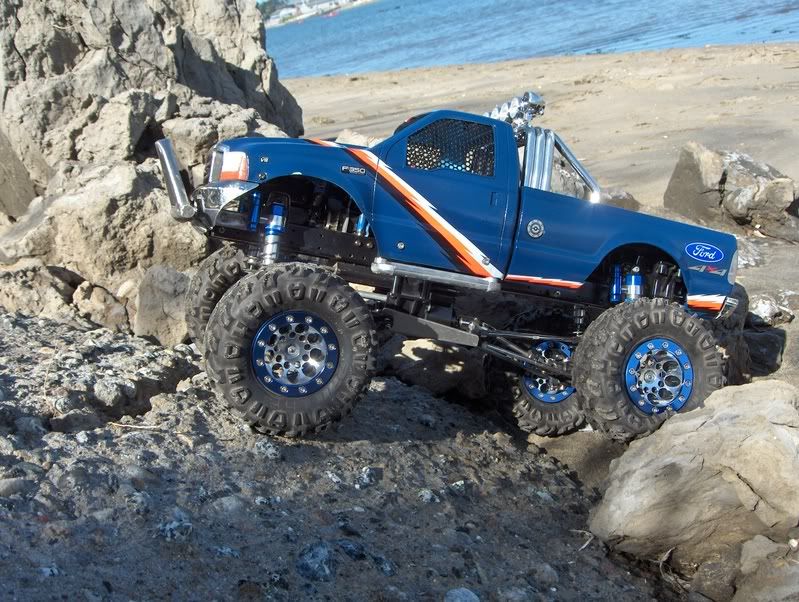

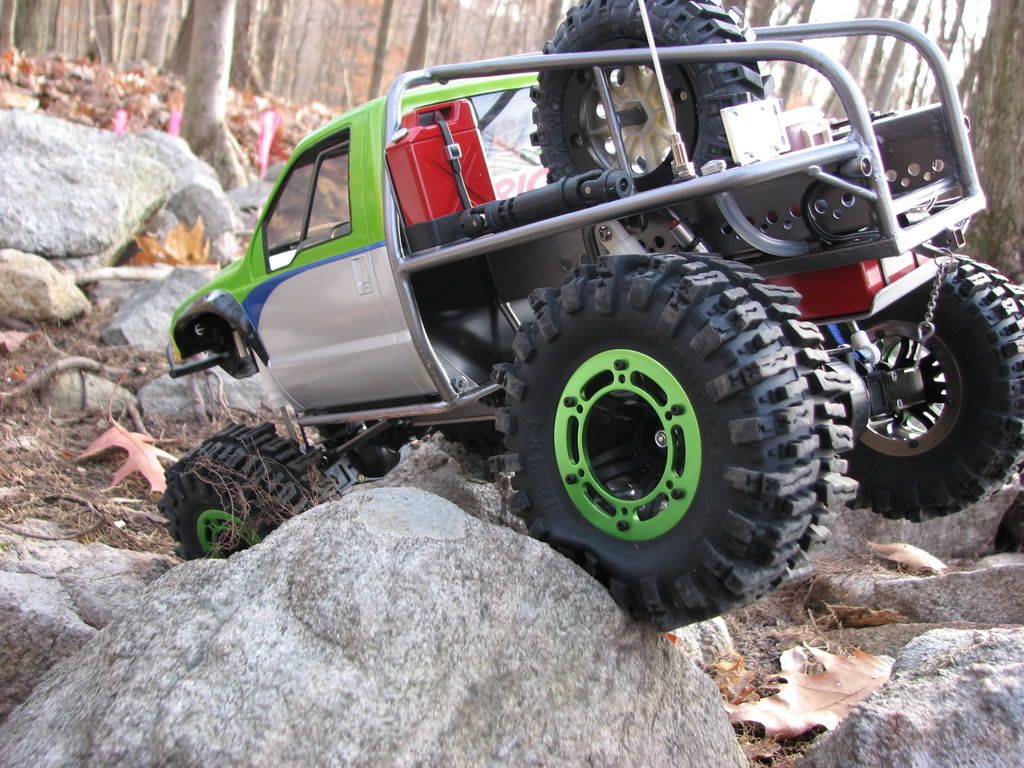

Nao/Dave pack built F350 Truggy



[zumzum5150]

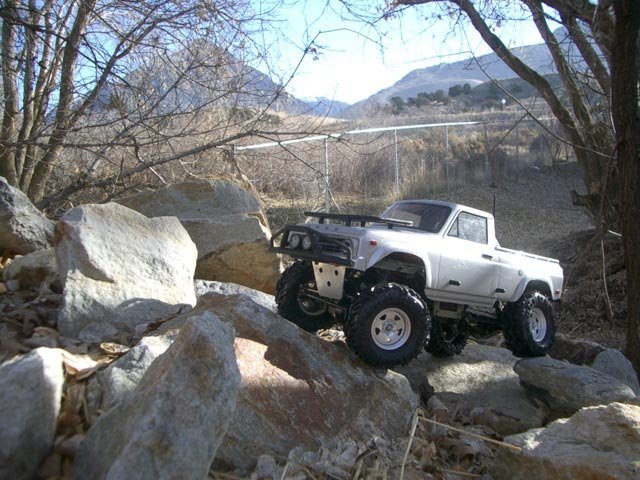

my scaler

11 in WB

K2-3s Chassis

HPI Geolander and schorch wheels

55T motor

Tamiya corsa grey paint (looks white)

Moped Esc

Airtronics M8 radio

pede tranny



[suiza]

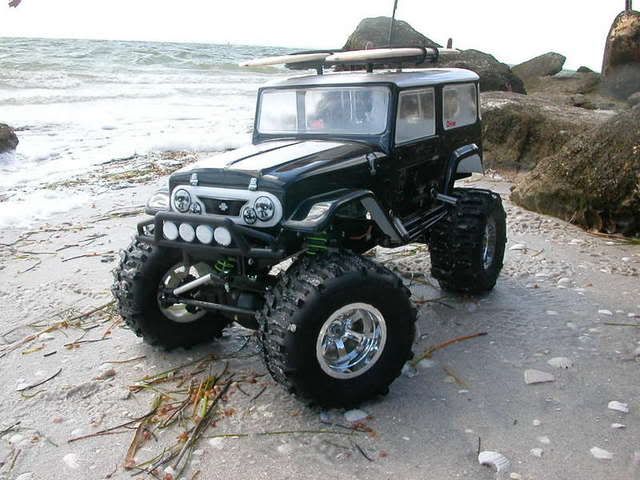

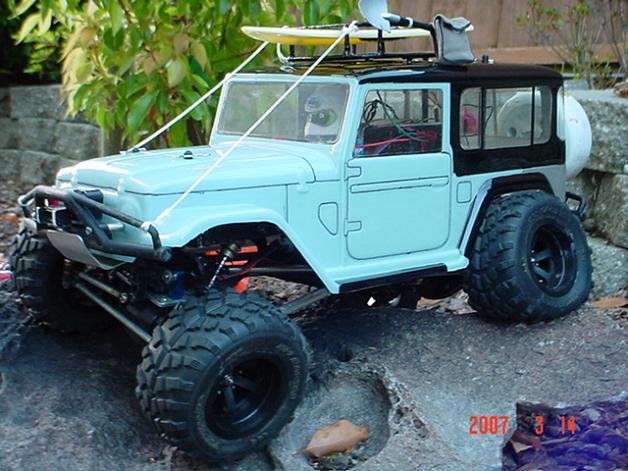

FJ40:11 in wb , home made chassis, links,bumbers ,moabs and narrowed pede wheels,magnetic mayhem,pede tranny,and not ready "thumbsup"



[mascman]

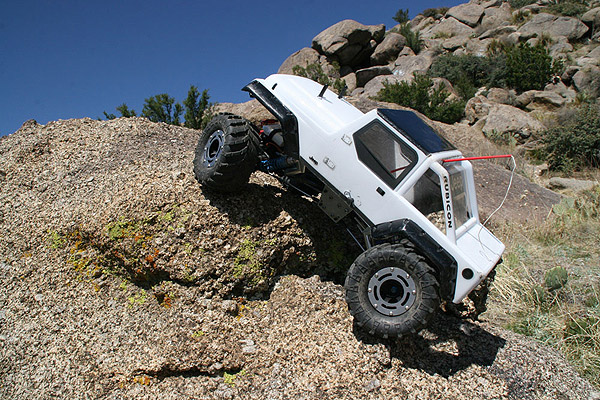

Rubicon Body
SW2 chassis
12" WB



[polyophio]

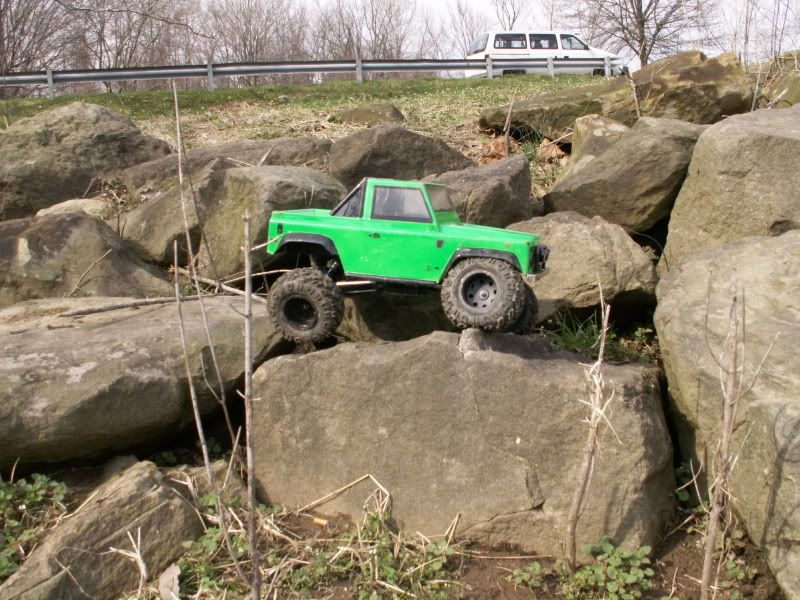

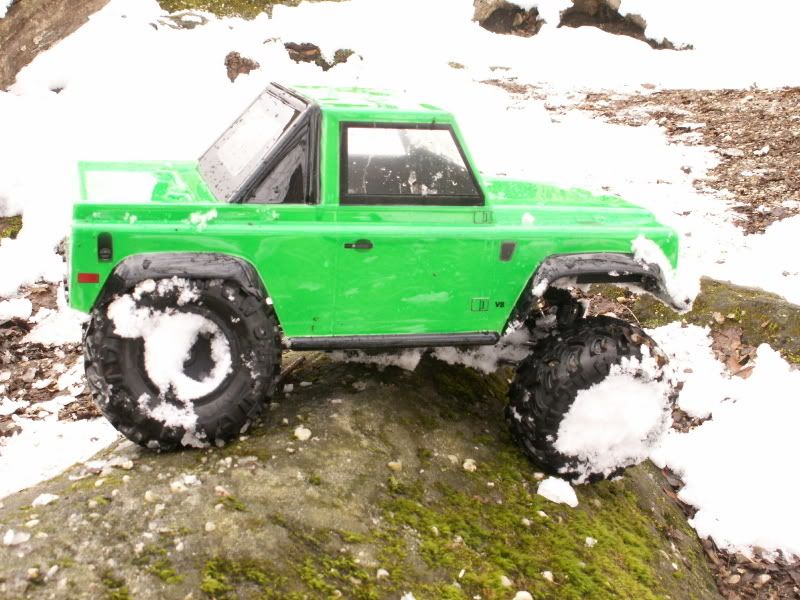

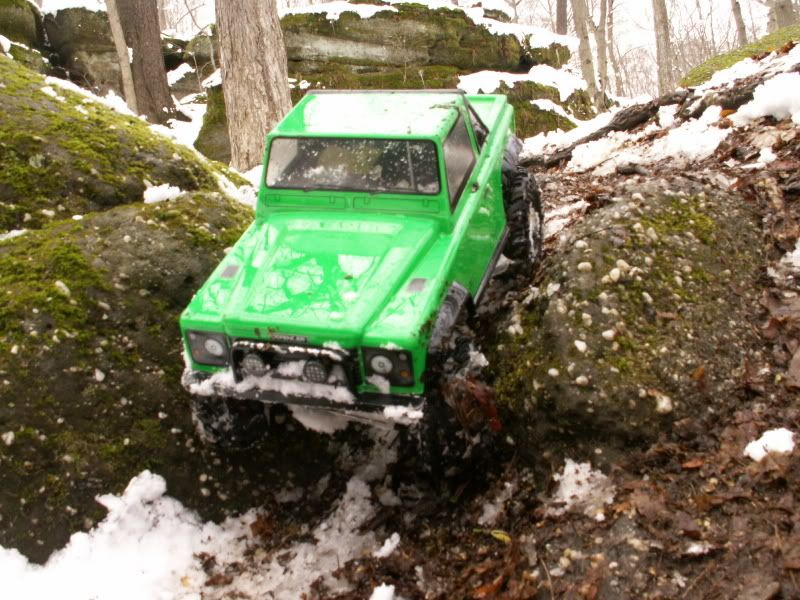

K2-3L Land Rover

Specs:
K2-3L Chassis
Tlt axles
Pede trans
16/87 gearing
35t lathe
Moabs on stock pede fronts
Custom bumpers
Winch



[Stone age]

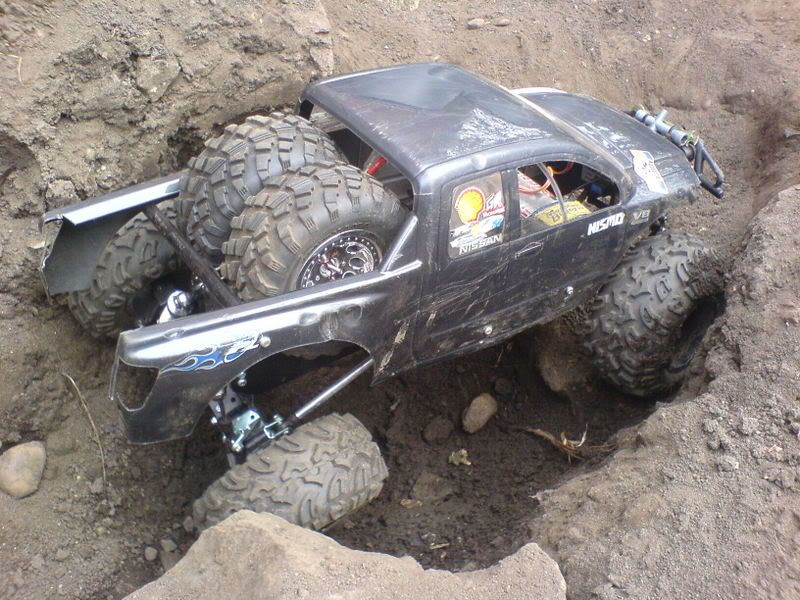

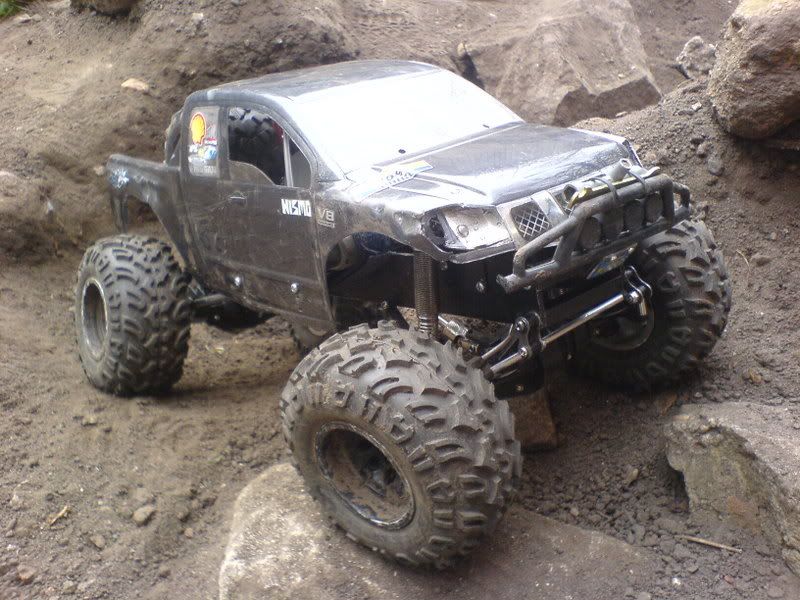

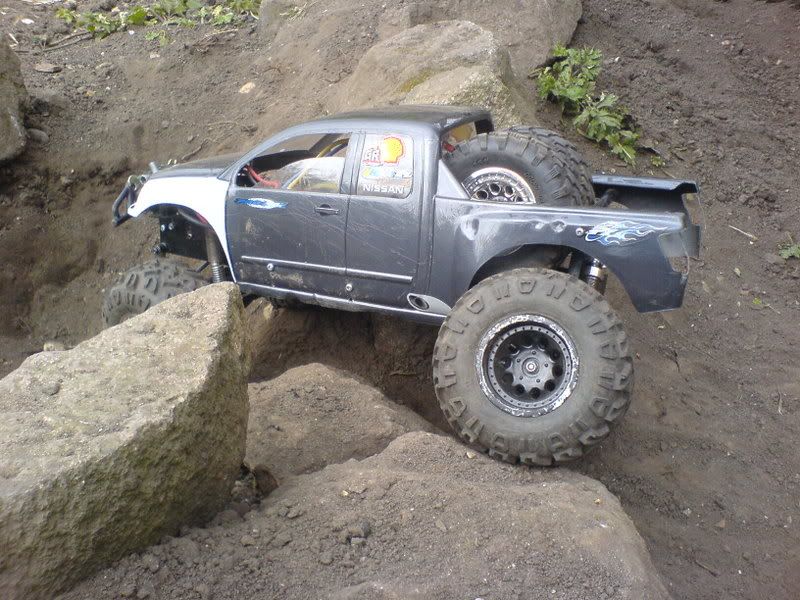

Homebrew Titan

truck base: TLT avec Custom chassis

Trans: stampede

Motor: old skool 55t lathe

Body: Proline Nissan Titan

WB: 350mm (12 inches in mickey mouse)

overall width: 250mm

overall length: fawk-nose

pics



[mikestoys]

my 2.2s... bronco body is a K2-3L chassis with 65T on pede tranny... dodge truck body is an SW2 with 55T on pede tranny... both with 12 inch wheelbase on swamp dawg tires...



[joeshacks]

Truck Base : PTI Goliath

Body: Jeep Rubicon

ESC: Novak XRS

Motor(s): Integy 55t Lathe Motor

Servo(s): JR Racing

Trans: GD-600 Gear Reduction

Axles: PTI Axles

Tires: Proline Mashers

WB: 12.5 inches



[Raney120]



[Raney120]

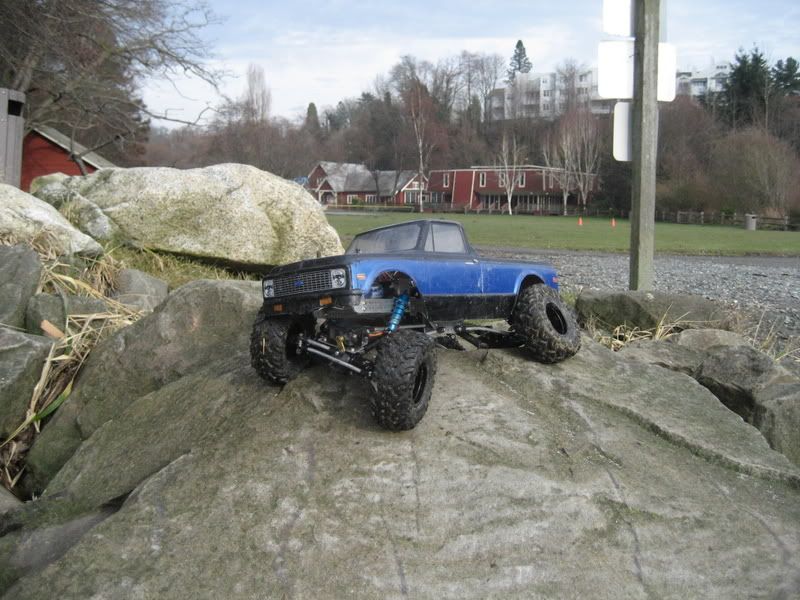

[72Blazer]

Home made ladder frame
Bushwacker
Novak XRS
Integy 45t
Tower Pro MG945
Wheely King tranny w/clocked motor
TLT axles
Swamp Dogs on HPI Scorch wheels
home made balsa/mahogony surfboards
