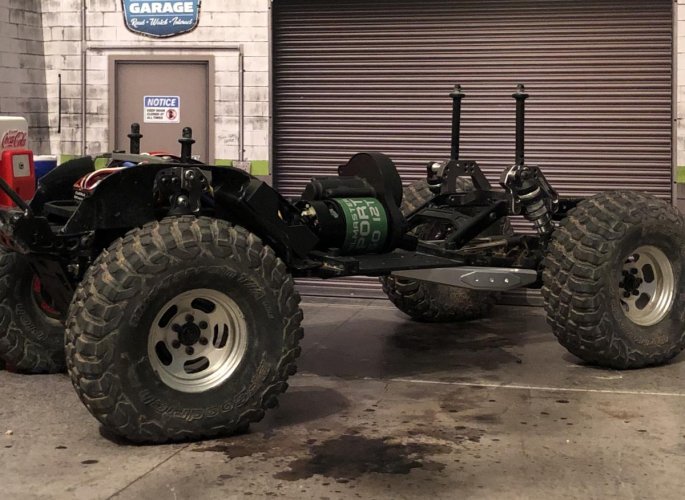

Got some more gear in the mail today so it was time to wrench. This round I wanted some more wheel speed so I opted for a 12t trailmaster sport, running this on 3s in the HW1080 which is technically out of its recommended range but want to see how it will do before spending money on going brushless.

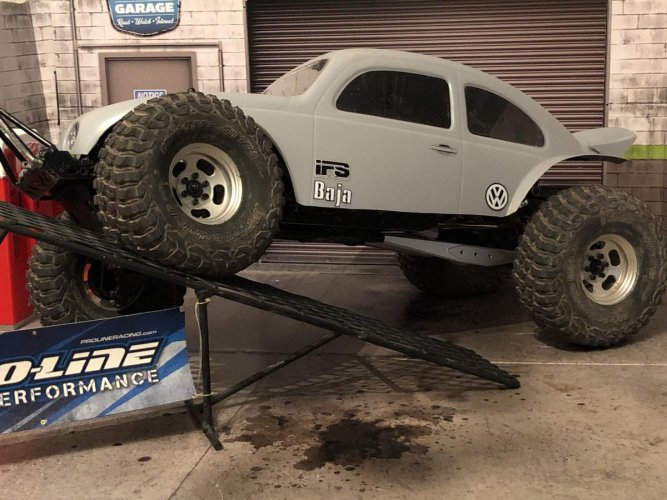

Also added some SSD RC Yeti trailing arms as they seemed appropriate here. It effectively stretched the wheelbase out to about 12.6”, maybe a hair longer. Then I put some traxxas blue springs up front to soften the suspension and see how it articulates without as much spring there. And lowered the rear shocks to the lower link mount location.

Stoked to get my knuckles!!! THanks for the hookup!

No problem Ben! "thumbsup"



[OSRC]

Trailing arms look great poking out from under there...



[rkj__]

This round I wanted some more wheel speed so I opted for a 12t trailmaster sport, running this on 3s in the HW1080 which is technically out of its recommended range but want to see how it will do before spending money on going brushless.

OMG it's going to axplode!!!!!1


Or just totally shred. :twisted:



[B-MOW71]

Completely different look than Hoppers last ride! I like it!

Trailing arms look great on there! I like the direction you are taking it!"thumbsup"



[Topher Builds]

Trailing arms look great poking out from under there...

Thanks!

OMG it's going to axplode!!!!!1


Or just totally shred. :twisted:

"thumbsup":evil:

Completely different look than Hoppers last ride! I like it!

Trailing arms look great on there! I like the direction you are taking it!"thumbsup"

Thanks BMow! I like how completely different it is from the rest of the fleet now, when two weeks ago it was almost too similar to the others.



[CODYBOY]

Hey Topher Build, I not sure I'm going to do a build thread for my IFS truck so if I may I'm going to post how I added a sway bar to my truck. "thumbsup"

I came up with an easy add on to a IFS rig.

This is a Dlux sway bar I've had for several years.



So I added some parts from one of my old goody box. along with Erik's kit and came up with this. And just a little note, I used the existing holes in the frame rails.



I started by adding a SSD Diamond axle kit, next I flipped over the link/shock mount, this helped in not having to stack the link, shock and connecting link all on the same mounting location. And no to binding on the shock!! Everything is tight but it is all free moving.





Everything clears on the body!





And tires and wheels fit fine.



I just thought I would put this here because the topic of sway bars came up in your thread. "thumbsup"
Ernie



[Topher Builds]

Heck yeah thank you Ernie! Sway bar is certainly on my list of things to do. Great idea on flipping the link mounts.



[durok]

CODYBOY to the rescue again, always has the engineering tricks and tweaks to offer up... "thumbsup"

Awesome looking rig, looking forward to seeing that Creep painted!



[soze]

I like how the IFS kit has people building in all different kinds of directions. I've enjoyed everybody's take on it so far. "thumbsup"



[B-MOW71]

Sway bar looks great Ernie!"thumbsup"

Nice design! Thanks for posting the pics!

I'll have to keep that in mind for my future IFS build!



[theone13]

Hey Topher, how'd that 12t work out for ya? I had my enduro out this morning for the first time, and could do with some more speed as well.



[Topher Builds]

Hey Topher, how'd that 12t work out for ya? I had my enduro out this morning for the first time, and could do with some more speed as well.

I haven’t ran it other than on my living floor but it was much faster. I don’t have a good feel for start up yet but I could tell it suffered a bit compared to the 5 slot, which is totally expected. I think it will be OK but need to get some extended hands on time with it.



[boldfin]

I put some traxxas blue springs up front to soften the suspension and see how it articulates without as much spring there.

I'm curious to know why you chose to go with Traxxas Blue Springs (TRA8045) up front. The specs I have on those show they are pretty darn stiff springs (at the top of the TRX-4 spring range): .61 N/mm or 3.48 lbs./in. Does the IFS kit really require that stiff of a spring up front? How stiff are the front springs that come with the IFS kit?

I just bought a Enduro Builders Kit and IFS Conversion kit, and plan to make good use of my time by building a new rig while sheltering in place.



[Topher Builds]

I'm curious to know why you chose to go with Traxxas Blue Springs (TRA8045) up front. The specs I have on those show they are pretty darn stiff springs (at the top of the TRX-4 spring range): .61 N/mm or 3.48 lbs./in. Does the IFS kit really require that stiff of a spring up front? How stiff are the front springs that come with the IFS kit?

I just bought a Enduro Builders Kit and IFS Conversion kit, and plan to make good use of my time by building a new rig while sheltering in place.

I can’t remember where I found the specs at, but the springs that come in the IFS kit are about 10% firmer than the traxxas blue. I happened to have the blue around and did a feel test and decided to give them a shot. Haven’t been back out with the rig yet as I have family in town but hopefully in the next couple weeks.



[R2j]

Looking good! I guess I need to build something IFS, still have my stock kit chassis laying around.;-)



[boldfin]

I can’t remember where I found the specs at, but the springs that come in the IFS kit are about 10% firmer than the traxxas blue. I happened to have the blue around and did a feel test and decided to give them a shot. Haven’t been back out with the rig yet as I have family in town but hopefully in the next couple weeks.

You're absolutely right. They list the spring rate at 4.75 lb./in. in the IFS manual. So Traxxas Blues would definitely be softer.



Unfortunately, I don't have anything in my spare parts inventory with a spring rate that high. Time to place another order. Is it a sign of addiction (or just inexperience) if you have orders coming in from both AMain and RPP, and are going back to place a third order before they even arrive?



[kejmildoh]

Also added some SSD RC Yeti trailing arms as they seemed appropriate here.

Nice idea. Did you have to modify something else to add those arms? and how about the axle, isn't it too angled to the drive shaft?



[alexleblanc]

Nice build, love the bug body.



[smog]

Looks like a well thought out build Topher! You have some stunning terrain to play in, that last climb in your video appears pretty epic. How stable do you figure the IFS on the Element platform would be at more moderate-high speeds with a sensored setup?



[Topher Builds]

Thanks all! Good timing on waking this back up as I finally got this one out for a little bit over the weekend, being Element’s birthday this past weekend it seemed appropriate to break this bad boy out.

The verdict? Still fun as heck. I really like this rig and how different it is from the others. The 12T motor definitely woke it up, but at the cost of low end throttle control. I’ll deal though, it’s more fun for the Baja bug to have a little whiskey in the throttle

Traxxas blue springs did very well, much better than the stock IMO. I’ll be keeping the blues on for sure.

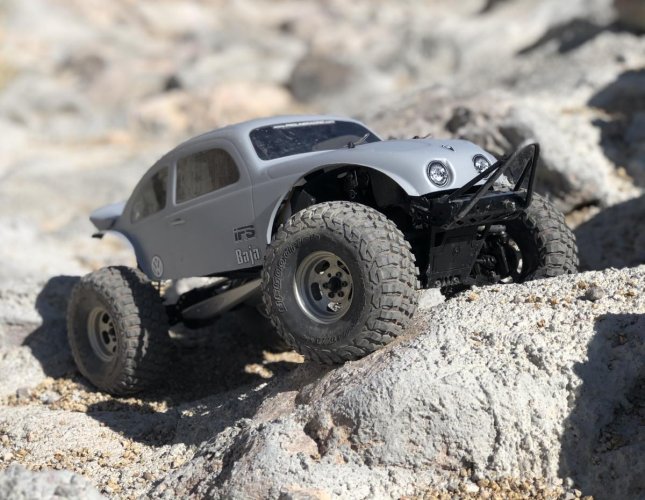

Here’s a pic below and a clip I posted from the weekend. Didn’t really get any other pics or video since I wasn’t out too long but I’ll get more sometime soon.

<blockquote class="instagram-media" data-instgrm-permalink="https://www.instagram.com/p/CAThW6cgYEY/?utm_source=ig_embed&utm_campaign=loading" data-instgrm-version="12" style=" background:#FFF; border:0; border-radius:3px; box-shadow:0 0 1px 0 rgba(0,0,0,0.5),0 1px 10px 0 rgba(0,0,0,0.15); margin: 1px; max-width:540px; min-width:326px; padding:0; width:99.375%; width:-webkit-calc(100% - 2px); width:calc(100% - 2px);"><div style="padding:16px;"> <a href="https://www.instagram.com/p/CAThW6cgYEY/?utm_source=ig_embed&utm_campaign=loading" style=" background:#FFFFFF; line-height:0; padding:0 0; text-align:center; text-decoration:none; width:100%;" target="_blank"> <div style=" display: flex; flex-direction: row; align-items: center;"> <div style="background-color: #F4F4F4; border-radius: 50%; flex-grow: 0; height: 40px; margin-right: 14px; width: 40px;"></div> <div style="display: flex; flex-direction: column; flex-grow: 1; justify-content: center;"> <div style=" background-color: #F4F4F4; border-radius: 4px; flex-grow: 0; height: 14px; margin-bottom: 6px; width: 100px;"></div> <div style=" background-color: #F4F4F4; border-radius: 4px; flex-grow: 0; height: 14px; width: 60px;"></div></div></div><div style="padding: 19% 0;"></div> <div style="display:block; height:50px; margin:0 auto 12px; width:50px;"><svg width="50px" height="50px" viewBox="0 0 60 60" version="1.1" xmlns="https://www.w3.org/2000/svg" xmlns:xlink="https://www.w3.org/1999/xlink"><g stroke="none" stroke-width="1" fill="none" fill-rule="evenodd"><g transform="translate(-511.000000, -20.000000)" fill="#000000"><g><path d="M556.869,30.41 C554.814,30.41 553.148,32.076 553.148,34.131 C553.148,36.186 554.814,37.852 556.869,37.852 C558.924,37.852 560.59,36.186 560.59,34.131 C560.59,32.076 558.924,30.41 556.869,30.41 M541,60.657 C535.114,60.657 530.342,55.887 530.342,50 C530.342,44.114 535.114,39.342 541,39.342 C546.887,39.342 551.658,44.114 551.658,50 C551.658,55.887 546.887,60.657 541,60.657 M541,33.886 C532.1,33.886 524.886,41.1 524.886,50 C524.886,58.899 532.1,66.113 541,66.113 C549.9,66.113 557.115,58.899 557.115,50 C557.115,41.1 549.9,33.886 541,33.886 M565.378,62.101 C565.244,65.022 564.756,66.606 564.346,67.663 C563.803,69.06 563.154,70.057 562.106,71.106 C561.058,72.155 560.06,72.803 558.662,73.347 C557.607,73.757 556.021,74.244 553.102,74.378 C549.944,74.521 548.997,74.552 541,74.552 C533.003,74.552 532.056,74.521 528.898,74.378 C525.979,74.244 524.393,73.757 523.338,73.347 C521.94,72.803 520.942,72.155 519.894,71.106 C518.846,70.057 518.197,69.06 517.654,67.663 C517.244,66.606 516.755,65.022 516.623,62.101 C516.479,58.943 516.448,57.996 516.448,50 C516.448,42.003 516.479,41.056 516.623,37.899 C516.755,34.978 517.244,33.391 517.654,32.338 C518.197,30.938 518.846,29.942 519.894,28.894 C520.942,27.846 521.94,27.196 523.338,26.654 C524.393,26.244 525.979,25.756 528.898,25.623 C532.057,25.479 533.004,25.448 541,25.448 C548.997,25.448 549.943,25.479 553.102,25.623 C556.021,25.756 557.607,26.244 558.662,26.654 C560.06,27.196 561.058,27.846 562.106,28.894 C563.154,29.942 563.803,30.938 564.346,32.338 C564.756,33.391 565.244,34.978 565.378,37.899 C565.522,41.056 565.552,42.003 565.552,50 C565.552,57.996 565.522,58.943 565.378,62.101 M570.82,37.631 C570.674,34.438 570.167,32.258 569.425,30.349 C568.659,28.377 567.633,26.702 565.965,25.035 C564.297,23.368 562.623,22.342 560.652,21.575 C558.743,20.834 556.562,20.326 553.369,20.18 C550.169,20.033 549.148,20 541,20 C532.853,20 531.831,20.033 528.631,20.18 C525.438,20.326 523.257,20.834 521.349,21.575 C519.376,22.342 517.703,23.368 516.035,25.035 C514.368,26.702 513.342,28.377 512.574,30.349 C511.834,32.258 511.326,34.438 511.181,37.631 C511.035,40.831 511,41.851 511,50 C511,58.147 511.035,59.17 511.181,62.369 C511.326,65.562 511.834,67.743 512.574,69.651 C513.342,71.625 514.368,73.296 516.035,74.965 C517.703,76.634 519.376,77.658 521.349,78.425 C523.257,79.167 525.438,79.673 528.631,79.82 C531.831,79.965 532.853,80.001 541,80.001 C549.148,80.001 550.169,79.965 553.369,79.82 C556.562,79.673 558.743,79.167 560.652,78.425 C562.623,77.658 564.297,76.634 565.965,74.965 C567.633,73.296 568.659,71.625 569.425,69.651 C570.167,67.743 570.674,65.562 570.82,62.369 C570.966,59.17 571,58.147 571,50 C571,41.851 570.966,40.831 570.82,37.631"></path></g></g></g></svg></div><div style="padding-top: 8px;"> <div style=" color:#3897f0; font-family:Arial,sans-serif; font-size:14px; font-style:normal; font-weight:550; line-height:18px;"> View this post on Instagram</div></div><div style="padding: 12.5% 0;"></div> <div style="display: flex; flex-direction: row; margin-bottom: 14px; align-items: center;"><div> <div style="background-color: #F4F4F4; border-radius: 50%; height: 12.5px; width: 12.5px; transform: translateX(0px) translateY(7px);"></div> <div style="background-color: #F4F4F4; height: 12.5px; transform: rotate(-45deg) translateX(3px) translateY(1px); width: 12.5px; flex-grow: 0; margin-right: 14px; margin-left: 2px;"></div> <div style="background-color: #F4F4F4; border-radius: 50%; height: 12.5px; width: 12.5px; transform: translateX(9px) translateY(-18px);"></div></div><div style="margin-left: 8px;"> <div style=" background-color: #F4F4F4; border-radius: 50%; flex-grow: 0; height: 20px; width: 20px;"></div> <div style=" width: 0; height: 0; border-top: 2px solid transparent; border-left: 6px solid #f4f4f4; border-bottom: 2px solid transparent; transform: translateX(16px) translateY(-4px) rotate(30deg)"></div></div><div style="margin-left: auto;"> <div style=" width: 0px; border-top: 8px solid #F4F4F4; border-right: 8px solid transparent; transform: translateY(16px);"></div> <div style=" background-color: #F4F4F4; flex-grow: 0; height: 12px; width: 16px; transform: translateY(-4px);"></div> <div style=" width: 0; height: 0; border-top: 8px solid #F4F4F4; border-left: 8px solid transparent; transform: translateY(-4px) translateX(8px);"></div></div></div> <div style="display: flex; flex-direction: column; flex-grow: 1; justify-content: center; margin-bottom: 24px;"> <div style=" background-color: #F4F4F4; border-radius: 4px; flex-grow: 0; height: 14px; margin-bottom: 6px; width: 224px;"></div> <div style=" background-color: #F4F4F4; border-radius: 4px; flex-grow: 0; height: 14px; width: 144px;"></div></div></a><p style=" color:#c9c8cd; font-family:Arial,sans-serif; font-size:14px; line-height:17px; margin-bottom:0; margin-top:8px; overflow:hidden; padding:8px 0 7px; text-align:center; text-overflow:ellipsis; white-space:nowrap;"><a href="https://www.instagram.com/p/CAThW6cgYEY/?utm_source=ig_embed&utm_campaign=loading" style=" color:#c9c8cd; font-family:Arial,sans-serif; font-size:14px; font-style:normal; font-weight:normal; line-height:17px; text-decoration:none;" target="_blank">A post shared by topher Builds (@topherbuilds)</a> on <time style=" font-family:Arial,sans-serif; font-size:14px; line-height:17px;" datetime="2020-05-17T22:08:22+00:00">May 17, 2020 at 3:08pm PDT</time></p></div></blockquote> <script async src="//www.instagram.com/embed.js"></script>

Looking good! I guess I need to build something IFS, still have my stock kit chassis laying around.;-)

Do itttt. Would be cool to see!

You're absolutely right. They list the spring rate at 4.75 lb./in. in the IFS manual. So Traxxas Blues would definitely be softer.

Unfortunately, I don't have anything in my spare parts inventory with a spring rate that high. Time to place another order. Is it a sign of addiction (or just inexperience) if you have orders coming in from both AMain and RPP, and are going back to place a third order before they even arrive?

Thanks for confirming! And nah, not an addiction haha. If you can afford it and use the parts then treat yoself!

Nice idea. Did you have to modify something else to add those arms? and how about the axle, isn't it too angled to the drive shaft?

I had to switch the upper links out, since these trailing arms are much longer. IIRC I just moved the old lowers to the uppers and it worked out great.

Nice build, love the bug body.

Thanks! "thumbsup"

Looks like a well thought out build Topher! You have some stunning terrain to play in, that last climb in your video appears pretty epic. How stable do you figure the IFS on the Element platform would be at more moderate-high speeds with a sensored setup?

Thanks Smog! Definitely spoiled with terrain out here. That last clip is known as “the wall”. It’s visually impressive and a good bench mark. If one of my rigs can’t make it up there then I don’t want it. At this point, all of them do thankfully. As far as stability, it’s not too bad at speed. Certainly better than a straight axle but I think it needs a bit di width to really be able to fling it around at speed. Certainly an improvement to say the least.
