"The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Outlaw

[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Sneak peak of The Formula with an upcoming new product release:

The Combination Cell Block
P/N; CWR-5050
It has Two .250" holes, Two .375" holes, Two .500" holes and One 3.00" long cell phone holder to hold your device while you listen to music, watch videos while building, or use it as a stand to film from. The holes can be used for holding tools or assembling shocks.

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Gavin built himself a unique crawler. It's a mix of old school and new school tech. He will post a build thread soon.

Gavin is getting tall. How many of you remember when he was 8 years old at the 2010 USRCCA National Championship where he finished 56th out of 100 entries?

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

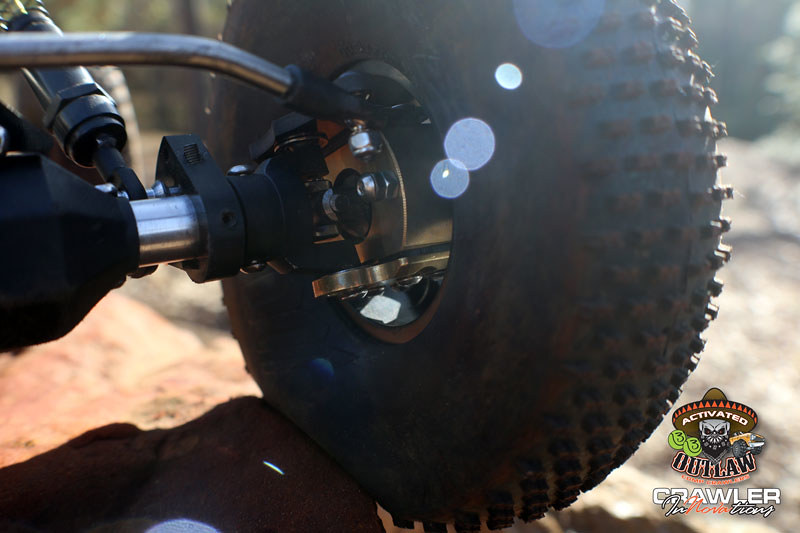

You know that you are really enjoying yourself when you spend time and money on a project. The Formula has been driven multiple battery packs now and it was time to tune the set up. I'm starting with steering knuckles. Dlux Fab offers so many options, here's what I choose to use.
Dlux Brass lowers
Dlux Aluminum knuckles drilled for slugs
Dlux Fab Tungsten weights
Dlux Fab Carbon Fiber uppers

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Gavin and I drove The Formula for a battery pack before the sun set today. The Formula is noticeably more stable and predictable. Not as front heavy as it was before. After driving it, I suspect that the suspension springs may be too stiff, and that the rear axle could use a little weight.

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

The winter solstice on 12.21.2018 was exceptionally beautiful. After watching the sunrise, Gavin and I pulled out the comp crawlers to film and appreciate the boulders at Love's Lookout.

The GateKeeper build thread:
http://www.rccrawler.com/forum/axia...xled-gatekeeper-chassis-activated-outlaw.html

The Formula build thread:
http://www.rccrawler.com/forum/axia...town-sporticus-chassis;-activated-outlaw.html

The Secret Agent XR10 build thread:
http://www.rccrawler.com/forum/axial-xr10/335709-crawler-innovations-xr-10-build.html

Love's Lookout;
Love's Lookout - Jacksonville Chamber of Commerce, TX

Crawler Innovations web store:
RC Crawler Foams, Rock Crawler Foams, Tires and More by Crawler Innovations

The source RCCrawler;
http://www.rccrawler.com/forum/

Video Credits;
the Gatekeeper driven by Gavin Ayala
the Secret Agent XR10 driven by Gavin Ayala
The Formula driven by Edmundo Ayala
edited by Gavin Ayala
filmed by Edmundo & Gavin Ayala

Gavin's channel;
https://www.youtube.com/channel/UC7oNfuw6pw84G931mmCGgaA

Video is linked here since embedding is not allowed in this section;
http://www.rccrawler.com/forum/vide...ovations-you-tube-channel-10.html#post5899564



#crawlerinnovations #activatedoutlaw #ayalametalworks

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

This is the fourth video for the 2.2 competition 4x4 build named, "The Formula". Edmundo Ayala of Crawler Innovations built this custom remote control competition rock crawler to compete in the Activated Outlaw Competition Series. This custom build features a Y Town Crawlers carbon fiber "Sporticus" chassis, Dlux Fab AR44 based SSDLUX custom axles with 8mm axle shafts, Hulksta carbon fiber "left skinny" transmission with titanium shaft and hardened Axial Racing XR10 gears, Vanquish Products titanium links, Traxxas 3.5" big bore modded shocks, Crawler Innovations 6 Bolt Wheels P/N CWR-5003; Cut N Shut Ottsix Voodoo pins in the silver compound, Crawler Innovations Double Deuce Foams, Hitec steering servo, Castle Creation BEC wired to power only the servo, it will run on either 3S or 4S lipo.

In this video, Gavin is testing the modifications to the front Dlux Fab knuckle weights. The top plates were switched from brass to carbon fiber, among a few changes being tested. The Dlux Fab knuckle weights allow for fine tuning. The main body of the knuckle are offered in brass or aluminum, can be fitted with brass or tungsten weights, while the upper and lower arms are offered in carbon fiber, brass, or aluminum.
Dlux Fab;
https://dluxfab.ecwid.com/#!/RC-Crawler-parts/c/1515293/offset=0&sort=nameAsc

Link to build thread of "The Formula" on the RCCrawler Forum:
http://www.rccrawler.com/forum/axia...town-sporticus-chassis;-activated-outlaw.html

Crawler Innovations web store:
RC Crawler Foams, Rock Crawler Foams, Tires and More by Crawler Innovations

The source RCCrawler;
http://www.rccrawler.com/forum/

Video Credits;
"The Formula" driven by Gavin Ayala
edited by Gavin Ayala
filmed by Gavin Ayala

Gavin's channel;
https://www.youtube.com/channel/UC7oNfuw6pw84G931mmCGgaA

Video is linked here since embedding is not allowed in this section;
http://www.rccrawler.com/forum/vide...ovations-you-tube-channel-10.html#post5901850


#crawlerinnovations #activatedoutlaw #ayalametalworks

​



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

I changed the Formula before the past two videos were filmed and posted but the updates were never posted so here they are. I changed the front springs to super soft Dlux springs and used the mini t pink springs in the rear.

Installed

Next on the list was steering stops.

​



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

More

Next on the list was overdrive gears for the front axle. Hot Racing 8t 27t AR44 gear set with a Vanquish locker.



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Next on the list was to change the knuckle aluminum main body to a brass body and keep the tungsten weigh the same along with the upper carbon plate and the lower brass plate.

Aluminum knuckle with tungsten and steering stops weight=60 grams

Brass knuckle with tungsten and steering stops weight=109 grams

​



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

All together

I bent the front links for more ledge clearance.

​



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

More

I widened the upper links at the chassis side and used jeepindoug 6mm aluminum ball studs.

This brings the build to current day.
​



[skypyt]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

seems to be a great rig,
have you any video of it?

congratulations, thanks



[Gavin Ayala]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

seems to be a great rig,
have you any video of it?

congratulations, thanks

Thank you, link to Videos of The Formula.
https://www.youtube.com/watch?v=LPJAqIn2_oY
https://www.youtube.com/watch?v=ZX8My_LNRG4&t=35s
https://www.youtube.com/watch?v=KYZGx509-mI&t=9s
https://www.youtube.com/watch?v=-Igo6UZXrcE&t=70s
https://www.youtube.com/watch?v=5X2lFFnpE5I
-Gavin​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Gavin and I (Edmundo Ayala) will be driving and filming RC cars on February 2nd at these locations. We will have a practice course or two set up for Activated Outlaw. Consider this your formal invite to stop by, drive your RC car and meet other hobbyists. This is not a competition or full blown event. This a get together with focus on driving and visiting. I hope to see you there and possibly get your RC car on camera.

#crawlerinnovations #ayalametalworks #activatedoutlaw #doubledeucefoams #deuceswildwfoams #lilnovafoams #compcrawler #scalecrawler #rccrawler
​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

New video up for this rig in action:



http://www.rccrawler.com/forum/vide...ovations-you-tube-channel-11.html#post5908397
​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

New video of this comp crawler on course:

http://www.rccrawler.com/forum/vide...ovations-you-tube-channel-11.html#post5909768
​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

Here are some photos from the Activated Outlaw Get Together on 02.02.2019:

Credit for the photos belong to my daughter Destinee.

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

More photos, credit to A Spell of Sophrosyne

​



[Nova's Ark]

Re: "The Formula", a CI built; SSDLUX axle'd; Y Town Sporticus chassis; Activated Out

It has been many months, maybe a year since this comp crawler has left the shelf it resides on. With the addition of new rock to the city park, I knew comp courses would be tough. Crawler Innovations Donated two dump trucks worth of iron ore boulder size rocks to the White Oak city remote control park. This Saturday was the First Activated Outlaw get together to try out all the new rock! It was a great get together! Thank you to Brian for helping score and thank you to everyone that came out! This video has footage from course 1 Competition 4X4. Enjoy!

#crawlerinnovations #activatedoutlaw #ayalametalworks

Link to video;
https://www.youtube.com/watch?v=v-kb6jdw1yA&t=1025s
​
