1.9 Wild Worm Scaler

[Redronin]

So I haven't built a scaler in a while (nor posted) and I figure it was time to do something different since my dad and I got back in to comp crawling. The original plan was to compete in C2 and just build the same old same old. But being competitive I wanted to do something that (I think) would give me an edge.

Enter worm drive axles.

And I know what you're gonna say:

1. They are slow
2. They get hot
3. They need lots of maintenance

But! I live in Florida so all of crawling courses are short and man made so they are better suited for tvp setups. So after doing the measurements I get a few benefits that I think will prove well on it's first comp.

1. About a .25" more clearance than a stock Scx10.2
2. Built in drag brake
3. Lower LCG with smaller trans

So heres what I got:

- Losi night crawler axles
- LNC esc (supposedly waterproof)
- LNC Transmission
- Scx10.2 Frame and temporary trans
- Assorted custom links
- Four piece aluminum beadlocks
- Disc brake weights
- Scale internal spring shocks (20wt oil)
- Steal shafts
- 25kg metal gear servo
- Duratrax deep woods all around
- Other misc scale stuff, ladders, winch bumpers, etc.

The end goal is to do an old school f150 halfcab hardbody but for now its a shorter wheel base so I could fit my titan body on it.



[hillbillyrc]

Interesting, ill be watching.



[Redronin]

[/URL][/IMG]



[Redronin]



[mv1985]

Nice Work Red Ronin! Where did you get the older Titan body from? Let me know how well you do at the comp.



[Redronin]

Nice Work Red Ronin! Where did you get the older Titan body from? Let me know how well you do at the comp.

It's an ancient HPI artifact from a time when T-maxx's ruled the land and the only crawlers available were TLT-1.



[Redronin]

I'll have to get some photos of the axles in better light but here is a pick of the clearance I'm getting now. Maybe I can mod them to fit some KYX portals?



[mv1985]

Wow, not bad on the axle clearance considering they're not portals. Nice wheels with the Deep Woods tires."thumbsup"



[TheLetterJ]

Nice Work Red Ronin! Where did you get the older Titan body from?

Parma still makes one, my cousin has one on his TRX4 https://parmapse.shptron.com/p/1-10-nissan-titan-clear-body?pp=15



[Redronin]

Little update. I’ve been using the the axial transmission with a 28t but it’s still a tab bit too slow. Eventually I will going with a 2 speed transfer case with a direct drive.

But for now I’ve been putting my 3D printer to work make a skid plate that takes the LNC transmission.

Sent from my iPhone using Tapatalk



[Redronin]

So I decided to do something more different. I figured I could mount the LNC tranny sideways up front and then order a transfer case. I designed a mount that wraps around the Losi tranny so the motor can ride up top. That way I can also make the bottom of the mount look like the bottom of an engine. For now I’ll test the vanilla mount. As soon as I know it’s good I can post it to shapeways Incase anyone wants one too.

Sent from my iPhone using Tapatalk



[mikro383]

Digging this always toyed with the same idea, picked up a Chinese 1:.75 ratio transfer case just for a little wheel speed boost but it's so wide it'll need trimmed and re tapped just to fit decent between some frame rails.

Sent from my SM-G930V using Tapatalk



[Redronin]

Digging this always toyed with the same idea, picked up a Chinese 1:.75 ratio transfer case just for a little wheel speed boost but it's so wide it'll need trimmed and re tapped just to fit decent between some frame rails.

Sent from my SM-G930V using Tapatalk

Which transfer case is that? I’ve seen the two speed one on eBay for about $50.


Sent from my iPhone using Tapatalk



[Col_Sanders]

One of our local guys runs them in his class 1 and 2 comp rigs. He usually does very well. The 2 years that I competed, he got 1st place in C2. I think he is running an original LCC trans with a high kv brushless setup.



[Redronin]

One of our local guys runs them in his class 1 and 2 comp rigs. He usually does very well. The 2 years that I competed, he got 1st place in C2. I think he is running an original LCC trans with a high kv brushless setup.

Do you know if he was running a pan hard bar or a 4-link? I made the pan hard mount for the axles but I think I like the 4 link better even with the little bit of bump steer



[Redronin]

Also here is the most up to date design. I added a cross member support to wrap around the output shaft for added rigidity. I also lowered and pushed back the tranny about 5mm. Once I start my shapeways shop I’ll upload the plans. Should be a cheaper front motor conversion than most.

Sent from my iPhone using Tapatalk



[mikro383]

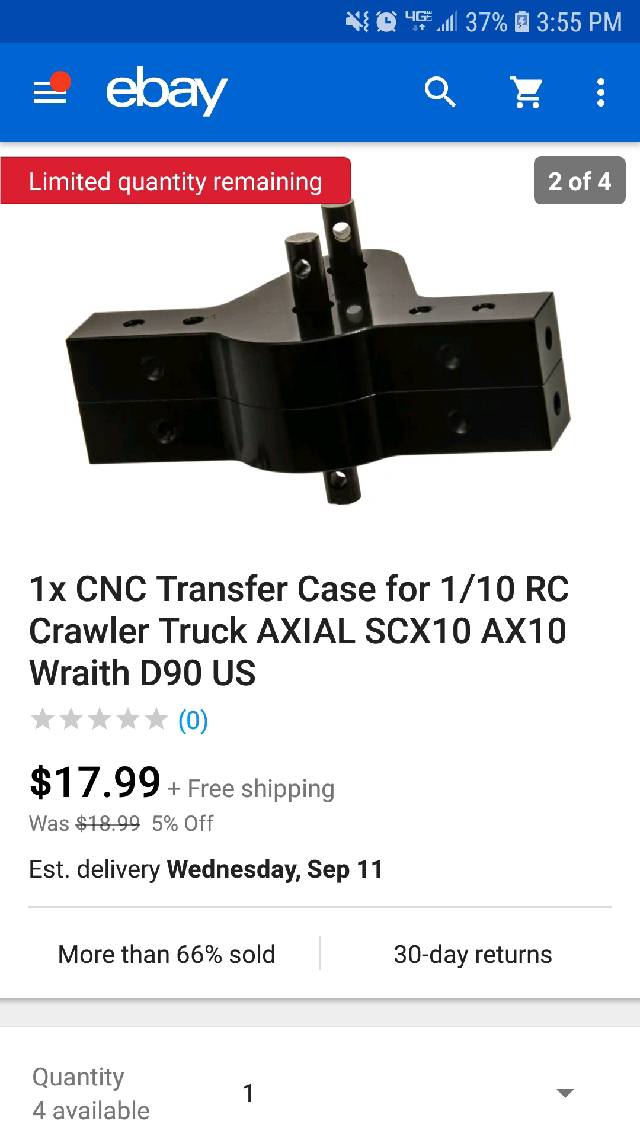

T case I have very Similar to this, sorry couldn't figure out how to send link via crapatalk, this one was listed as .5:1 ratio

Sent from my SM-G930V using Tapatalk



[Redronin]

Nice! I ordered a different one on eBay, it should be here tomorrow. I found one that was pretty scale and 1:1


Sent from my iPhone using Tapatalk



[badBKO]

Good to see you're still kickin around rcs man!



[JatoTheRipper]

Nice mount! Which 3D modeling software are you using?
