Which led controller will be best for my new led sytem?

B

BerkeBulur

Newbie
Joined
Jan 21, 2020
Messages
12
Location
UK
Hello guys,

I’m new at this forum, my friends recommended this forum for me to find electrical help about RCs. I’m not new in the RC world, I own my first car 6-7 years ago.

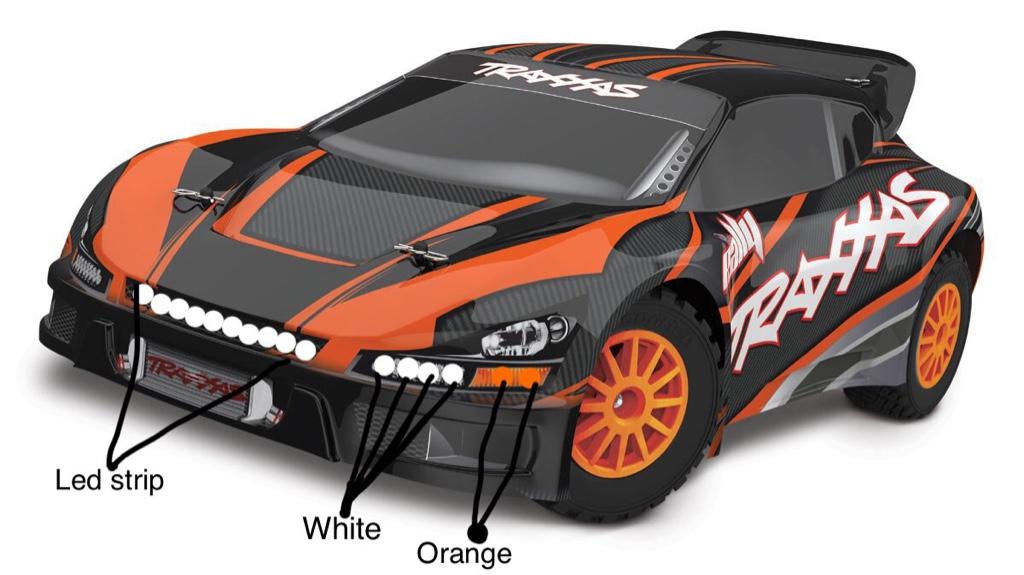

I want to make a good and powerfull led system for my Traxxas Rally. I’m planning to use 8x 3mm white LEDs to front headlights, 4x orange LEDs to front headlight corners, 6x red LEDs to the rear and few centimetres of 12V 5054 led.

I’ve chosen 5054 for high intensity and reliability, will make a small stand to set the front grille angle to 90* to ground (because as you can see at the photo, front grill is looking upwards). And I’ve chosen 28 AWG wire.

I have four questions, the first one is, which resistor should I use for each led? All LEDs will take energy from the receiver and as far as I know receiver port gives ~4.5-6.3 volts.

Secondly, which remote should I use for this project? I will be so glad if anyone recommends me a remote that can turn on and off the specific lights, as I want/need. E.g. button 1-headlights and taillights, button 2-Light bar at the front grille.

Thirdly, what type of wire do I need to use for 12v led? Last question, how can I get 12v from 4.5v-6v receiver port?

Led strip 5054; https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.co.uk/ulk/itm/323894936699

Have a nice day!
Berke


I know you don't want to hear this, but I wouldn't do it the way you are. That LED tape will not give you the flexibility you want.

I would run with Common Sense LEDs, they are good up to 12 VDC and they come pre-wired with the resistor. (the link at white 5mm, but you can get them in 3mm and just about any color you wish).

Second, to get the voltage up, recommend running an external BEC, set it to 8VDC and 3S packs. This will be plenty bright.

Third, the are a number of remote on/off switches to choose from. I like Pico Switches, they are compact and easy to set up.

I know you don't want to hear this, but I wouldn't do it the way you are. That LED tape will not give you the flexibility you want.

I would run with Common Sense LEDs, they are good up to 12 VDC and they come pre-wired with the resistor. (the link at white 5mm, but you can get them in 3mm and just about any color you wish).

Second, to get the voltage up, recommend running an external BEC, set it to 8VDC and 3S packs. This will be plenty bright.

Third, the are a number of remote on/off switches to choose from. I like Pico Switches, they are compact and easy to set up.

https://www.amazon.com/20-Pack-Pre-...te+LED&qid=1579723318&s=toys-and-games&sr=1-2

Greatscott said:
I know you don't want to hear this, but I wouldn't do it the way you are. That LED tape will not give you the flexibility you want.



I would run with Common Sense LEDs, they are good up to 12 VDC and they come pre-wired with the resistor. (the link at white 5mm, but you can get them in 3mm and just about any color you wish).



Second, to get the voltage up, recommend running an external BEC, set it to 8VDC and 3S packs. This will be plenty bright.



Third, the are a number of remote on/off switches to choose from. I like Pico Switches, they are compact and easy to set up.



https://www.amazon.com/20-Pack-Pre-...te+LED&qid=1579723318&s=toys-and-games&sr=1-2
Click to expand...



Thank you so much for your reply, I’m planning to use 3mm or 5mm LEDs for headlights and taillights but probably do the grille lights also with them. Thank you for giving a link for LEDs but I would probably go with eBay because there are cheaper (without wiring). Which one would you prefer, cheaper eBay or bit higher Amazon?

If you go with eBay, which resistor would you use?

https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.co.uk/ulk/itm/221391912322

Thanks!

The resistor is what makes the 12 volt LED light up off of only ~5 volts. So if you use 12volt LEDs, then you need the appropriate resistors (for each LED) so that it will light up with only ~5 volts.

Soooo ... easiest to start off with 3-6 volt LEDs - then you don't have to add all those resistors and do all that soldering - either someone did it for you, or the LED was created for that voltage. And ... prewired is even better yet!

I have ordered the ones below, and they work great at receiver (~5v). BUT - see just under the clear part of LED the 1/2-3/4 inch black section? That is shrink tubing, and the appropriate resistor is in there. So - makes them kind of not very flexible in that 1st 1 inch of wiring - if you try to bend that 1st inch of wiring too much the soldered joint on resistor can break.

But if you don't need much flex in that 1st inch, this place works well with customers to get the voltage, colors, and sizes needed. I use them wiring my trailers.

https://www.amazon.com/gp/product/B00TA4ECW4/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

If you ever need teeny tiny LED's - like too tiny to even figure out how to use - these are just the most awesome thing:

https://www.amazon.com/gp/product/B07QPVGPJH/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

I ordered the 125 piece multi-colored pack just to have - maybe use as clearance lights or something - they are stunningly bright and colorful for as tiny as they are.

Last edited:
i fixed it for ya



vf750rider said:
The resistor is what makes the 5 volt LED light work off 12 volts. So if you use 12volt LEDs, then you need the appropriate resistors (for each LED) so that it will light up 5 volts leds

Soooo ... easiest to start off with 12 volt LEDs - then you don't have to add all those resistors and do all that soldering... prewired is even better yet!
Click to expand...


you have it backwords the resister steps down voltage they dont ramp up the voltage

you can also wire the leds in series and wont need resistors as the led itself is a resistor

white lights run off of diferent voltages than red or orange leds and would need a different resistor or more leds in series

other colores have different voltages too

vf750rider said:
I have ordered the ones below, and they work great at receiver (~5v). BUT - see just under the clear part of LED the 1/2-3/4 inch black section? That is shrink tubing, and the appropriate resistor is in there. So - makes them kind of not very flexible in that 1st 1 inch of wiring - if you try to bend that 1st inch of wiring too much the soldered joint on resistor can break.

But if you don't need much flex in that 1st inch, this place works well with customers to get the voltage, colors, and sizes needed. I use them wiring my trailers.

https://www.amazon.com/gp/product/B00TA4ECW4/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

If you ever need teeny tiny LED's - like too tiny to even figure out how to use - these are just the most awesome thing:

https://www.amazon.com/gp/product/B07QPVGPJH/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1

I ordered the 125 piece multi-colored pack just to have - maybe use as clearance lights or something - they are stunningly bright and colorful for as tiny as they are.
Click to expand...



Thank you so much for your couple reply! Yes, I know shrink tubing and I was planning to use them for the same thing as they did in prewired ones. First few bit isn’t imprortant because my body is big enough to prevent mess and I will be careful not to break them.

Thank you for a very tiny led link from amazon, they look great and I may use them as trim lightning. It seems if I prefer eBay LEDs (prewired) they will be cheaper. I want reliable LEDs on my truck. What is your opinion, should I buy from eBay or Amazon?


https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.co.uk/ulk/itm/202609529472

Thanks!


Tapatalk kullanarak iPhone araclyla gönderildi

Personally I use what I can find that does the job for the least expense. So me ... I'd use Ebay if you found less expensive ones.

Couple weeks ago I snagged LED Christmas lights at Dollar Tree - 10 LED strings that run off 3v (2xAA batteries) for US$1 is a good deal! Sometimes they have those silly LED lighted necklaces that are low voltage (use watch batteries) for smaller LEDs. Just have to figure out if they wired in series or parallel and total voltage of batteries used so you know what voltage a single LED needs. Dollar stores and party favor stores can be a good source!

ferp420 said:
i fixed it for ya


you have it backwords the resister steps down voltage they dont ramp up the voltage

you can also wire the leds in series and wont need resistors as the led itself is a resistor

white lights run off of diferent voltages than red or orange leds and would need a different resistor or more leds in series

other colores have different voltages too
Click to expand...


Thank you so much for your reply, I will note these down. Probably I will buy wired LEDs with already soldered to its a resistor, should I ask the seller which resistor does he used of nope? Because receiver port gives 4.5v-6v I think any simple resistor could handle it, what's your opinion?

Have a nice day!



Sent from my iPhone using Tapatalk

vf750rider said:
Personally I use what I can find that does the job for the least expense. So me ... I'd use Ebay if you found less expensive ones.



Couple weeks ago I snagged LED Christmas lights at Dollar Tree - 10 LED strings that run off 3v (2xAA batteries) for US$1 is a good deal! Sometimes they have those silly LED lighted necklaces that are low voltage (use watch batteries) for smaller LEDs. Just have to figure out if they wired in series or parallel and total voltage of batteries used so you know what voltage a single LED needs. Dollar stores and party favor stores can be a good source!
Click to expand...



Thank you for your reply, I’m happy for you to find a great deal![emoji3]

I will go with pre-wired ones because the price difference isn’t that big for buying all the parts separately and soldering them but I will keep searching a bit more.

I will ask more if I struggle much. Have a nice day!


Sent from my iPhone using Tapatalk

BerkeBulur said:
Thank you so much for your reply, I will note these down. Probably I will buy wired LEDs with already soldered to its a resistor, should I ask the seller which resistor does he used of nope? Because receiver port gives 4.5v-6v I think any simple resistor could handle it, what's your opinion?

Have a nice day!



Sent from my iPhone using Tapatalk
Click to expand...
i found a site that deals with exsacly what your asking about



https://www.instructables.com/id/Choosing-The-Resistor-To-Use-With-LEDs/

heyok said:
wow, you have been given lots of advice already!
Let me know if I can help.
I'll just leave this, and a reminder that if you want to operate your lights from a remote control, I have many solutions.
http://www.rccrawler.com/forum/electronics/422460-how-wire-leds.html
Click to expand...



Actually, yes I need advice on how to operate them with a good but simple way. I found some LED controllers but they all have one socket/port to control. Traxxas made led supply that makes you easier to control them because of the app but I don't know does it works on mine. If you help me with this I will so glad.


Sent from my iPhone using Tapatalk

I feel pretty confident to comment on the controllers I make, but I really know nothing about what Traxxas makes. Sorry.
