Scale Crawler Picture Archive (PICTURES ONLY!)

[mike]

Post up the pics of you scale rigs for others to drool over.

Also put up some specs.

Truck Base :

Body:

ESC:

Motor(s):

Servo(s):

Trans:

Axles:

Tires:

WB:

Overall Width:

Diff clearance:

Center Chassis clearance:

Overall height:

Weight:

New scale truck I got. Haven't dicided on a body yet though.



********** Edited by Bender **********
I turned this into a Sticky. Let's keep this thread for stats and pics only, no chit-chat please!!



[microgoat]

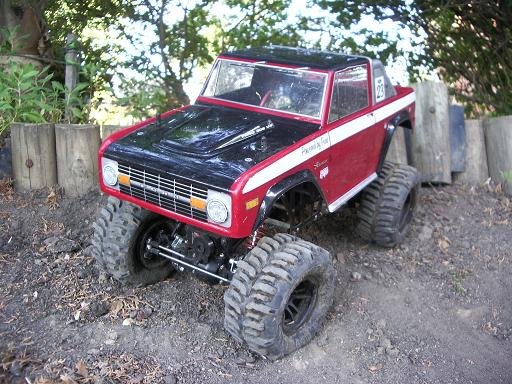

The Barnyard Buster

Truck Base : CNC'd aluminum ladder frame

Body: HPI Bronco

ESC:Futaba MC330CR

Motor(s):Integy 55t

Servo(s):JR ST125MG, chassis mounted

Transede

Axles:TLT

Tires:Swamp Dawgs

WB:11-3/4"

Overall Width:9.5

Diff clearance:1-3/8

Center Chassis clearance: 2.75"

Overall height: 11" to the top of the KC's

Weight: 6 lbs +/-



[oIIIIIo]

Truck Base: TLT
Body: HPI Bronco
ESC: Tekin Rebel 2
Motor(s): Integy 55t lathe
Servo(s): Hitec HS645MG x 2
Trans: Associated RC10B4 Stealth
Axles: TLT
Tires: Moab
WB: 11.75"
Overall Width: 9.75"
Diff clearance:
Center Chassis clearance: 2.75"
Overall height: 10"
Weight: ???



[TANK]

hacked up tlt chassis
moabs
55t
pede
locked and loaded



[4u2c]

heres mines one its kind of trail rig i would say hope you like it!!!!:mrgreen:

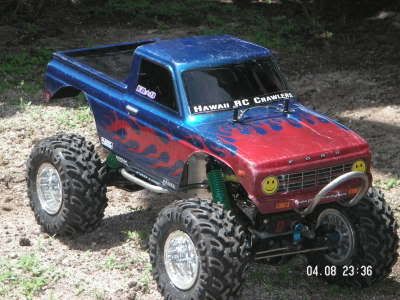

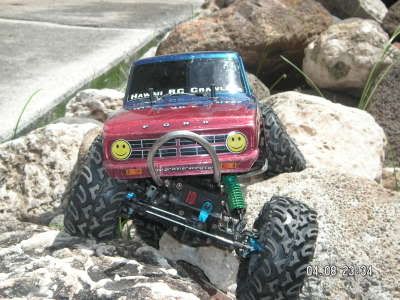

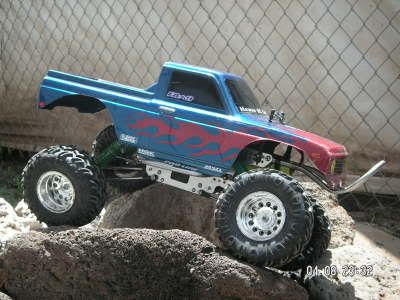

Truck Base: SW2
Body: Ford courier
ESC: Stock tamiya??
Motor(s): Integy 55t lathe
Servo(s): JR 4800
Trans: Stampede
Axles: TLT
Tires: Moab
WB: 8.50
Overall Width: 12.25
Diff clearance:1.50
Center Chassis clearance: 3.25
Overall height: 10"
Weight: ???

hope you liked it..........:mrgreen:



[Cole82]

Mile high!
AI runner esc
CS-70 servo
Pede tranny
55turn lathe motor
Several tires, dirt works, moabs, losi smashers.
5# RTR



[Brandon]

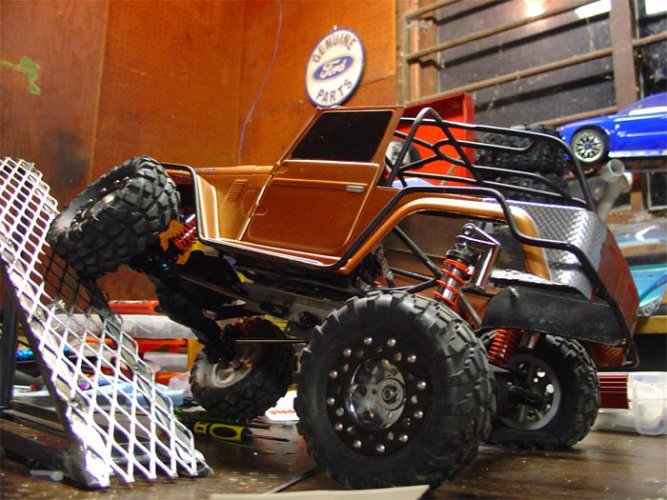

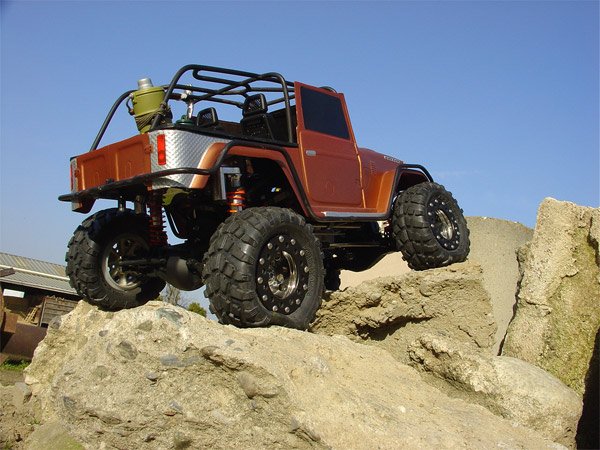

TLT Tuber landcruiser

Build thread:
http://www.rccrawler.com/forum/showthread.php?t=26095

Specs:
TLT axles with tobee wideners (painted flat black)
Yoko geolanders, pede wheels, with rck 3rd gen rock rings
pede tranny mounted under the hood, with a transfer case in the middle of the chassis.
55t lathe
Super rooster
Hitec 945MG
Integy shocks, losi springs (30wt oil)
11.5" wheelbase
Partial interior with recaro seats



[OIT_TLT]

Truck Base: brake line frame rails
Body: Chev C10
ESC: Super Rooster
Motor(s): Mag Mayhem
Servo(s): Hitech 645
Trans: Stampede
Axles: TLT
Tires: Mashers/Swamp Dawgs
WB: 11.625
Overall Width: 10.25
Diff clearance:1.50
Center Chassis clearance: 3
Overall height: 9.75
Weight: 6-8 pounds



[SlinkySam]

I am not sure mine is Scale or just a TLT Crawler. I don't have seats or an interior for that matter, but I do have head/tail/undercarriage lights, a license plate, and is full bodied (bumpers, flares, etc still in tact). However, it is only a body on top of a TLT Crawler so you decide what it is. This is my second crawler to the Slinky Family.


Truck Base : Home made 3 piece aluminum tube and plate chassis

Body: Jeep Rubicon

ESC: Rooster

Motor(s): 55T Lathe (of course)

Servo(s): Hitec 645

Trans: Losi XXX with Stampede shafts

Axles: TLT-1. No better place for this, but I run pretty blue coil over shocks that are no where near scale

Tires: Moabs. I don't run any weights in the tires and it seems to perform decently

WB: 12.25

Overall Width: Stock axle width

Diff clearance: Stock clearance with Moabs. I am letting the rocks grind down the axles.

Center Chassis clearance: 2.75" I think

Overall height: Suuuuuuuuuper high

Weight: 3.8 lbs



[RANOVRU]

Truck Base : Cut down TXT chasis w/ Clod axles

Body: '72 Chevrolet C-10 w/ FUBAR'd paint job

ESC: Novak Super Rooster

Motor(s): Integy 55's w/ 13t's

Servo(s): JR590

Trans: NA

Axles: Clod w/ full bearings, alumin. knuckles, alumin. lockers, & carbon fiber axle braces

Tires: Masher 2k's- Waiting on 2.2 Red Rocks to get here...

WB: 12"

Overall Width: 12.5" (New 'Pede rears will narrow that a fair amount when new tires get here)

Diff clearance: 1.5"

Center Chassis clearance: 4.25"

Overall height: 9.5"

Weight: 5.5lbs



[Big_L]

Truck Base : Tuber Truggy Oregon built but reinforced by NorCal SICJ!
Body: Toyota Tundra..............but it looks like a Ranger (IMO)
ESC: XRS
Motor: Integy 55 turn lathe Motor
Servo: Futaba
Trans: Pede Locked
Axles: Tlt Locked Axles
Tires: Moabs
WB: 12"
Overall Width: Need to measure
Diff clearance: Need to measure
Center Chassis clearance: Need to measure
Overall height: Need to measure
Weight: She's a pig!



[XB_BOY]

Tuf-100

All this info on this truck was measured while i had the All-t's on....

Truck Base : Brando Build Ofcourse

Body: Proline F-100

ESC: LRP Ai Runner

Motor(s): silver can

Servo(s): Hitec

Trans: Pede

Axles: TLT

Tires: Imex: All-t's, Swampa's, Moabs

WB: 11.5"

Overall Width: 10.75"

Diff clearance: 2"

Center Chassis clearance: 3.25"

Overall height: 10.75"

Weight: 3.9kgs



[badger]

Scale Half cab Bronco:

11.5" WB
8.75" track width
2.5" center clearance
8.5" max height of cab

Bender Customs chassis set up 60/40
TLT-1 Axles locked diffs
Blackfoot stub shafts
Stampede trany w/Jato shafts, 120T 64P spur
55t Lathe Motor, 16t 64P pinion
HPI Geolander tires w/pie shape foams
Traxxas rims w/rock rings
2 wheel steering
5 oz of bb's in each tire

Click here for the build thread



[badger]

Scale Toyota Flatbed (Mountaineer)
Body: Mountaineer
ESC: Super Rooster
Motor: 55t Lathe
Servo(s): Hitec 645MG
Trans: Pede
Axles: Mounty
Tires: Geolanders
WB: 12"
Overall Width: 10"
Center clearance: 2.5"
Overall height: 9.5"
Weight: 1 metric ton

Click here for the build threads

Click here for the build threads



[Unimoger]

Chassis: Brand0 Built

Body: Proline Ford Courier

ESC: Super chicken

Motor(s): 55t Lathe

Servo(s): Hitec 645 mg

Trans: Pede lay down locked w/ bearings

Axles: TLT locked with bearings

Tires: Proline 2.2 Moabs

Wheels : traxxas, double narrowed

WB: 11.5"

Overall Width: 10.75"

Diff clearance: 2"

Center Chassis clearance: 2 7/8"

Overall height: 8"

Weight: 7.5 lbs



[Unimoger]

Chassis: Brand0 Built

Body: Proline Chevy C-10

ESC: Super chicken

Motor(s): 55t Lathe

Servo(s): Hitec 645 mg

Trans: Pede lay down locked w/ bearings

Axles: TLT locked with bearings

Tires: Proline 2.2 Moabs w/ MSD Rock Rings

Wheels : traxxas, double narrowed

WB: 11.5"

Overall Width: 10.75"

Diff clearance: 2"

Center Chassis clearance: 2 7/8"

Overall height: 8"

Weight: 7.5 lbs



[badger]

Europa Truck Trial Rig

11.75" WB
8.25" track width
2.75" center clearance
11" max height of cab

Bruder MB Astros truck body
TLT-1 Axels locked diffs
Custom aluminum Chassis
Custom aluminum flat bed w/lexan A-frame tent
Stampede trany w/Jato shafts, 84t spur
55t Lathe Motor, 12t pinion
Captured spings w/Integy maxx soft blue springs
Associated maxx shocks
HPI Geolander tires firm w/pie shape foams
Traxxas Bandit front rims w/rock rings
2 wheel steering
6 oz of bb's in each front tires, 4 oz of bb's in each rear tire
5 RCC stickers

Click here for the build thread



[XSRCdesign]

Indy

chassis : custom aluminum

rear: tlt

front: Ta02 front (indy suspention)

tranny: pede (with custom gearbox to match ratios front to rear)

body: proline mgt 1/8th scale silverado

motor : mag mayhem

esc: novak xrs

radio: jr xr3i

wb: 13.5 inches

width: 8 7/8th

center chassis clearance: 2 1/8th

diff clearance: front 1 3/8th / rear 7/8th

tires/wheels: narrowed pede wheels, rock rings, and proline dirt hawg tires

Big Brother

chassis: custom aluminum

axels: tlt

tranny: emaxx

body: proline 1/8yh scale silverado

motor: 55t integy lathe

esc: novak xrs

radio: jr xr3i

wb: 13.5 inches

width: 9 1/4

center chassis: 2 5/8th

diff clearance: 1 1/4

wheels tires: hpi geolander tires, narrowed hpi spike wheels, rock rings



[kongmaxx]

here is my scale crawlers

old ford/jeep 55 turn motor
new ford stock motor
all 3 have pede trannies.
tires: swamp dawgs
axles:tlt



[TeeLTee]

Chassis: Team PRP

Body: Hpi Bronco

ESC: LRP

Motor(s): 35t Lathe

Servo(s): Hitec 645 mg

Trans: Stampede

Axles: TLT

Tires: 2.2 Mashers, moabs, swamp dawgs

Wheels : Hpi

WB: 11.5"

Overall Width: 10"

Diff clearance: 1.5"

Center Chassis clearance: 2.5"

Overall height: 10"

Weight: 2.7kg
