Scale Chevy K10 Chassis Build, Clod Body

[DrRucus]

Hi, new to the group but have been playing with crawlers for about a year.
Decided i wanted to build a scale K10 chassis to go under a Clod Buster body.
I found a drawing online, scaled it to fit the Clod body wheelbase and plasmer cut a test chassis



[DrRucus]

Once i was happy with the design i started to make it out of 1/2" box section.
I cut and welded it till it was the right shape, normalised it in a kiln overnight, cut it in half then ground it flat.



[DrRucus]

Next i cut and kinked the chassis to the right shape and added some cross members and leaf spring mounts



[DrRucus]

Mocked up the drive train and now testing some motor mount ideas.



[nomudpls]

It looks really good! Keep postin!



[DrRucus]

Cheers

Sent from my SM-G930F using Tapatalk



[DrRucus]

Shock mounts installed

Sent from my SM-G930F using Tapatalk



[DrRucus]

Tried a couple of wheel designs

Sent from my SM-G930F using Tapatalk



[DrRucus]

Thought I'd have a quick go at making a stainless steel bumper. Not bad for an hour's work. Now I'll take my time and make the propper one.

Sent from my SM-G930F using Tapatalk



[Mike Flea]

I like the 5 slot wheels, reminds me of the trucks I saw when I was growing up, leaf suspension with coilless shocks looks good too. I especially like that rear crossmember where the shocks bolt to "thumbsup"



[ScaleLifeNewbie]

I second the 5 slot wheels, definitely go perfect with a squarebody Chevy [emoji1690]

Are you going to keep or remove the intake on the hood? IMO, I think taking it off would look better.


Sent from my iPad using Tapatalk



[DrRucus]

I like the 5 slot wheels, reminds me of the trucks I saw when I was growing up, leaf suspension with coilless shocks looks good too. I especially like that rear crossmember where the shocks bolt to "thumbsup"

Thanks bud.

Sent from my SM-G930F using Tapatalk



[DrRucus]

I second the 5 slot wheels, definitely go perfect with the box Chevy body[emoji1690]

Are you going to keep or remove the intake on the hood? IMO, I think taking it off would look better.


Sent from my iPad using Tapatalk

Yea going to remove the intake. This is just a mock up body. Planning to get a new shell to delete the intake and lower the bed floor as it's too high. Guessing it was to accommodate the clodbuster chassis.

Sent from my SM-G930F using Tapatalk



[ScaleLifeNewbie]

Yea going to remove the intake. This is just a mock up body. Planning to get a new shell to delete the intake and lower the bed floor as it's too high. Guessing it was to accommodate the clodbuster chassis.

Sent from my SM-G930F using Tapatalk

ahh okay.

You have some great equipment to work with, which will make this a very cool rig!



[DrRucus]

ahh okay.



You have some great equipment to work with, which will make this a very cool rig!

Cheers. Yea I work at a University so have lots of equipment at my disposal. The wheels and motor mount will eventually be 3D sintered in aluminium once the designs are finalised [emoji869]

Sent from my SM-G930F using Tapatalk



[DrRucus]

Finally finalised the design for the motor/servo mount. Thought I'd add a sump to it [emoji38]. Now to print it in ally

Sent from my SM-G930F using Tapatalk



[350TacoZilla]

Great project so far man! I vote slot mags also.

Funny deal with the slot mags is I have like 5 sets IRL in 4,5 & 6 lug and from 13x5.5" to 15x10" and have had more years ago that I sold here and there but I have one set that I've never had that I seem to miss out on every few years, 8x6.5" bolt pattern in 16.5x9.75 or 16.5x12" I either dont have the money when they pop up forsale or I have the money and search for weeks never to find a set. I'm currently in the former situation where I have started seeing few sets but no $$. I think I might have to end up buying a set for RC just to pacify myself lol. Sorry if I missed it but whats info on the ones you got there? Like home printed job or send away for them type of deal?



[DrRucus]

Great project so far man! I vote slot mags also.

Funny deal with the slot mags is I have like 5 sets IRL in 4,5 & 6 lug and from 13x5.5" to 15x10" and have had more years ago that I sold here and there but I have one set that I've never had that I seem to miss out on every few years, 8x6.5" bolt pattern in 16.5x9.75 or 16.5x12" I either dont have the money when they pop up forsale or I have the money and search for weeks never to find a set. I'm currently in the former situation where I have started seeing few sets but no $$. I think I might have to end up buying a set for RC just to pacify myself lol. Sorry if I missed it but whats info on the ones you got there? Like home printed job or send away for them type of deal?

Gotta love some stotmags. These are ones I drew up and 3d printed.

Sent from my SM-G930F using Tapatalk



[DrRucus]

Didn't like the shallow bed on the clod body so made a new one.

Sent from my SM-G930F using Tapatalk



[DrRucus]

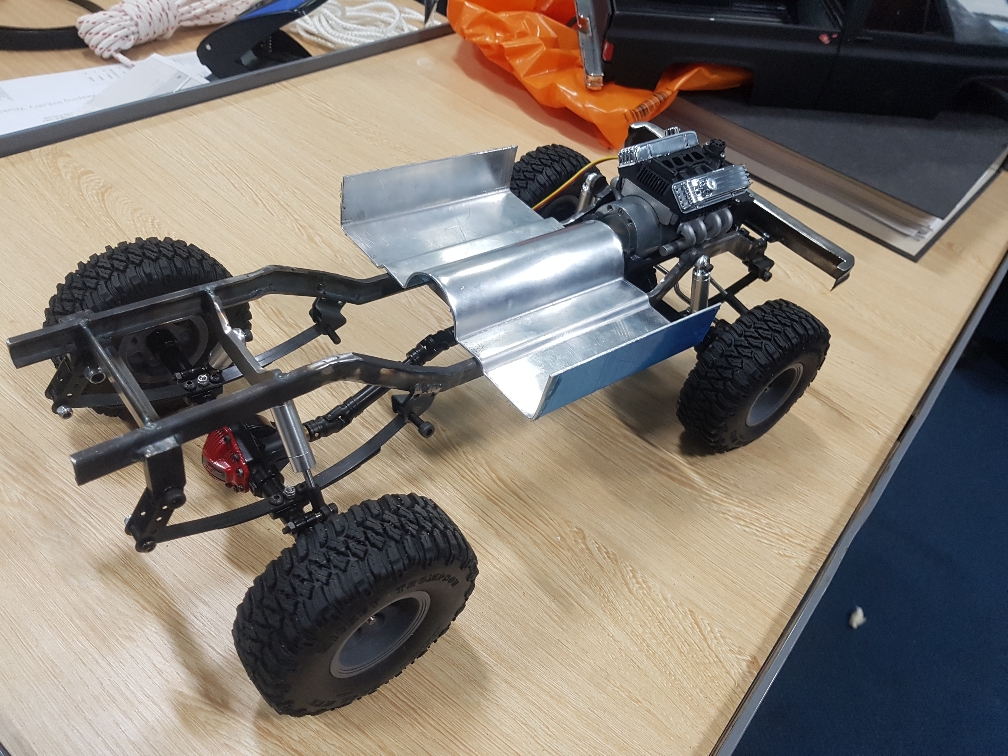

Started working on a cab floor for the electrics
