~PROJECT~"FULL-TILT YOTA"~ (Truggy/Flatbed Style)

[BiG_DaWgZ]

Hey guys....just thought I'd show some pics of my latest build that I've been working on.
Haven't had much time...and I've got several Jeep builds to do...hopefully I'll get more time around the Holidays.

I picked up a tubed truggy/flatbed about a year ago...or so.
It was on an MFM chassis...and I wasn't real crazy about that setup...(mainly because the MFM chassis aren't as scale as what I like to use...usually)........but I REALLY liked the simple lines of the tubed truggy/flatbed .

I started out with plans to use this on my "WideSide Yota" build....(still waiting on RC4WD's new Yota Grill so that I can start back on that build.....I've just been too lazy to build my own custom grill on that one !! LOL)

Anyways...I changed the whole direction of that build...and now it's going on a MSD Ute chassis.

So...I decided to build a Yota Truggy with that bed....(before anyone says it...I KNOW that it's not a REAL/ACTUAL TRUGGY...since the rear chassis section hasn't been chopped at the cab and then made entirely of tubing....which is what a REAL TRUGGY is......but most guys call this type of rig a "Truggy" simply because of it's look)

So...from this point forward...I'll just be calling it a TRUGGY...instead of a "Truggy style Flatbed".... !

OK...back to the build.

This bed was made up for that MFM chassis....so I decided to modify it and make it usable for an Axial SCX10 chassis.

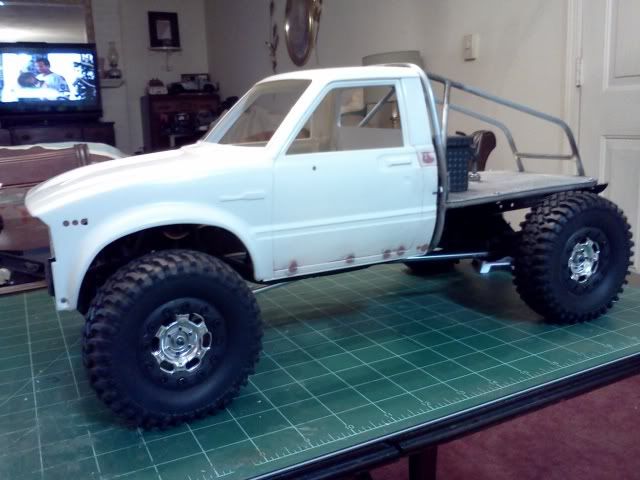

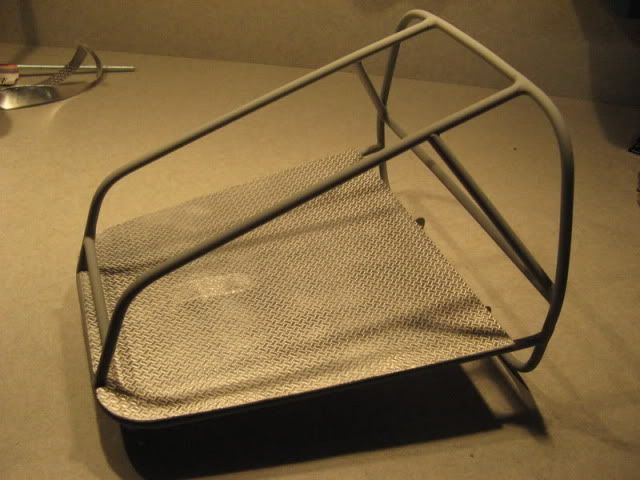

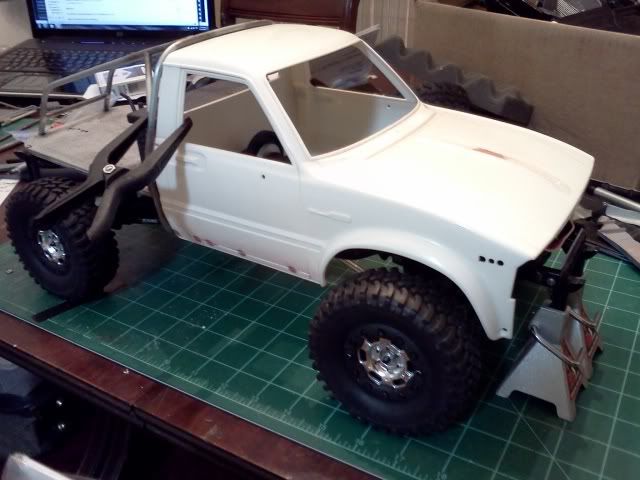

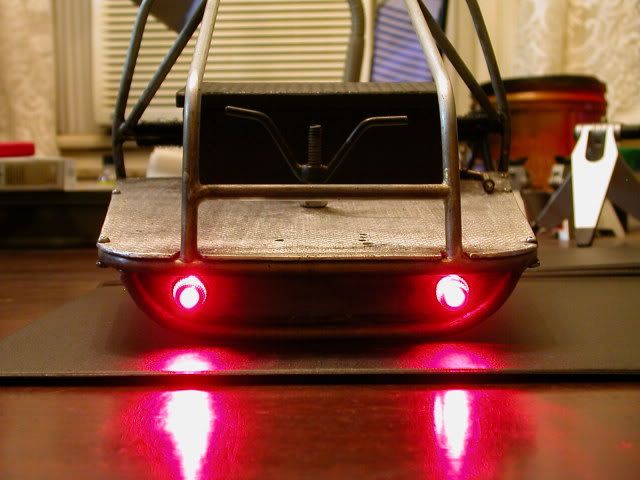

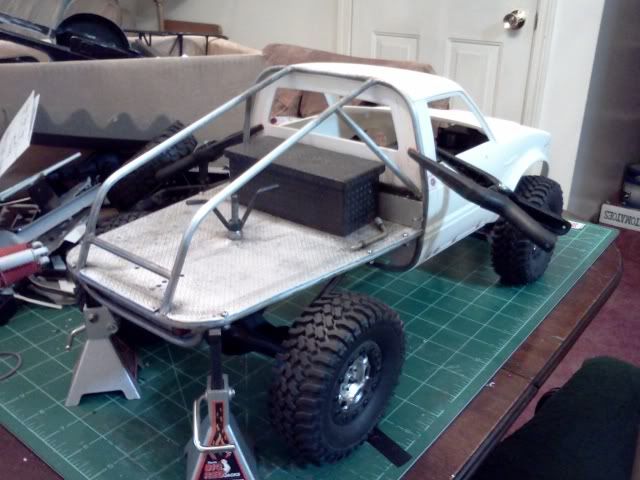

The bed floor is made up of Aluminum Diamond plate...and it has a homemade diamond plated toolbox that holds the light controller and 9 volt battery for the rear tail-lights.

So I re-bent the tubed area that's used to mount the bed to the chassis....on the back...and then I CHOPPED about 1/2" off of the back of an Axial SCX10 chassis.

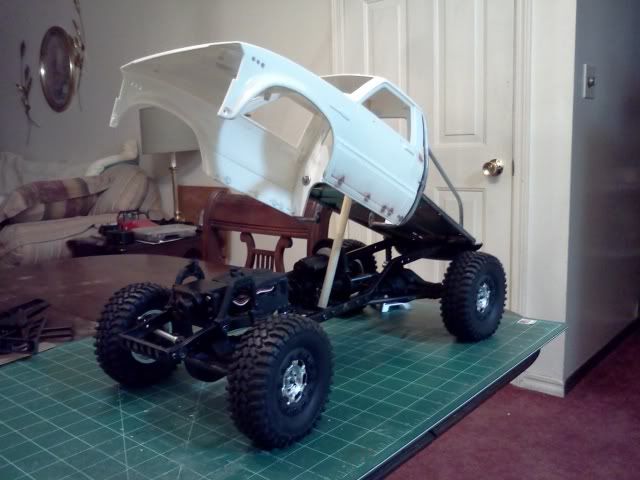

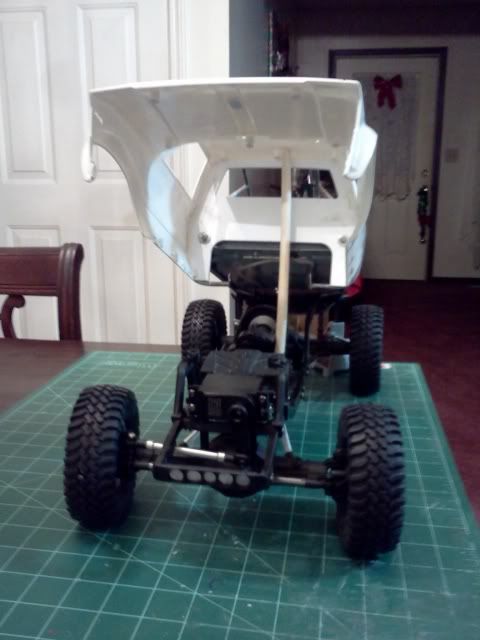

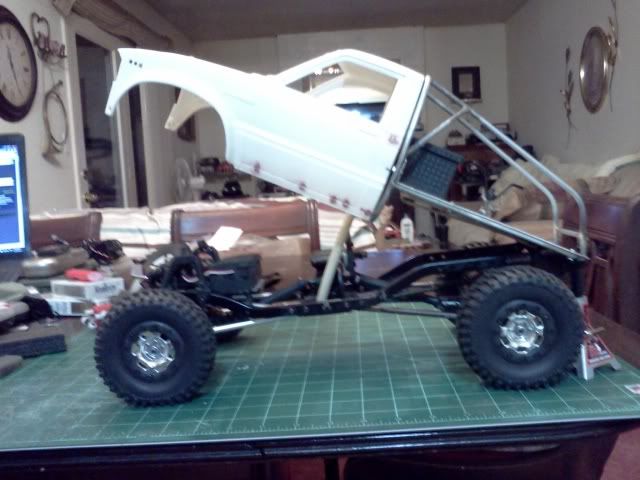

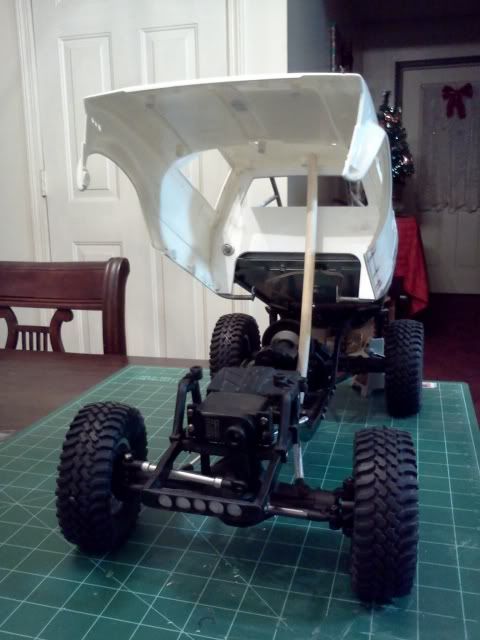

I did this...so that I could mount the cab and bed together...and then mount them on the back....and then I can TILT the whole body up...to access my battery/electronics...or whatever.

The front will be held down with either velcro...or possibly some hidden body mounts.

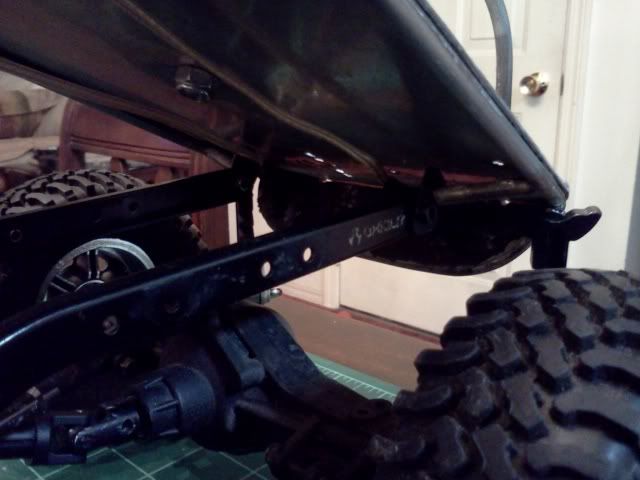

The front of the bed....also has some mounts that come off of the lower section of the roll-cage's main HOOP.

I modified those so that they will tightly slide down over the chassis....but not need to be fastened....that way they don't interfere with my "TILTING" action !

The bed has a simple and clean layout....that I really like alot....and a built-in spare tire hold-down too.

I'm either going to be selling this rig...or my "Black & Tan" Yota.....so I have to decide which one that I like the most.
I really like them both...and the Black & Tan Yota has been my favorite trail rig for the past year now.

I haven't finalized the tire/wheel combo for this rig yet...but my goal is for it to have some good clearance but keep it as "low slung" as possible so that I can keep the COG down too.

The bed is made from TUBING....so that helps to keep the weight down too.

I wanted this rig to perform well...so I stretched the wheelbase out to 12" .

I pushed the rear axle back further than usual...to give me a better Departure Angle and I also pushed the front axle forward as far as I could....while still maintaining the correct wheelbase....so that I could get the best approach angle with it too.

I flipped the front shock tower frame brackets around....and trimmed them...and turned it into a Chassis mount for the steering servo.

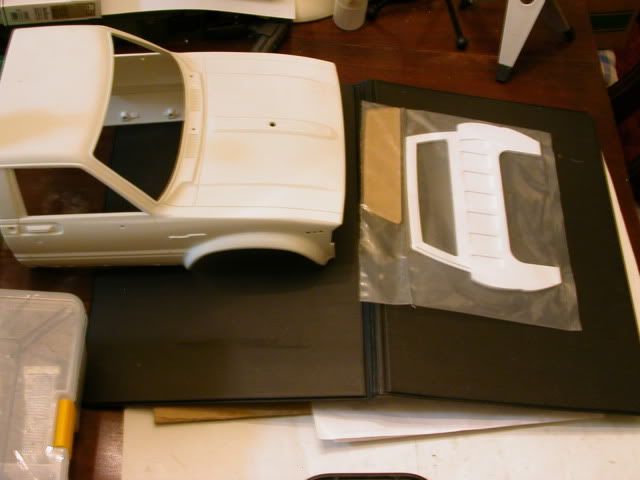

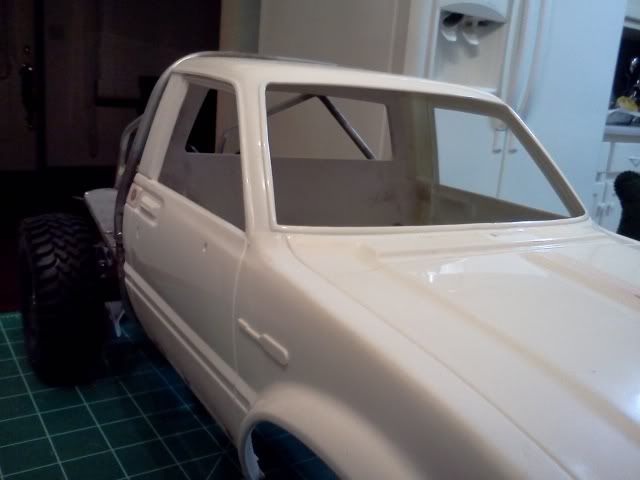

I filled all the holes in on the body...and added a Reign cab back to it as well

The color....hasn't been determined yet...and if I sell this one...the new owner might get to choose if I sell it before I decide on paint color.

If I keep it...and paint it...I've been thinking about several different otions........here are some of my ideas:

VIPER YELLOW (or any other super...ULTRA bright Yellow that is similar to that)
Hugger Orange (like my Bruiseruptor cab that is shown in a few of these pictures)
Electric Blue
Metallic Copper or Bronze
Gunmetal Grey metallic
Bright SILVER metallic
Driftwood or PEWTER metallic

Candy Apple Red (or other "Candied" colors)

and about 5 more colors that I can think of off the top of my head !

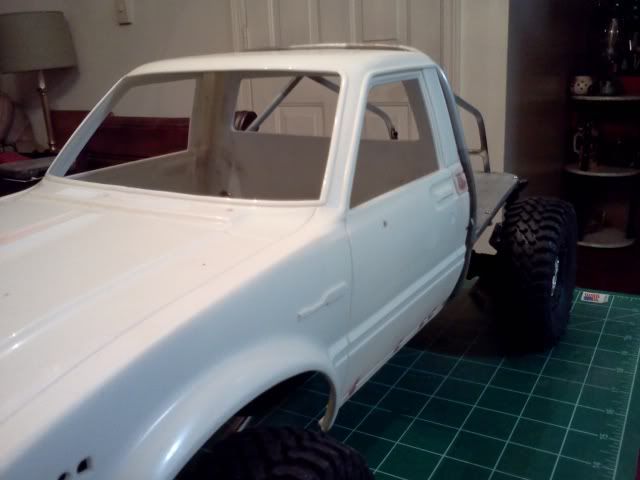

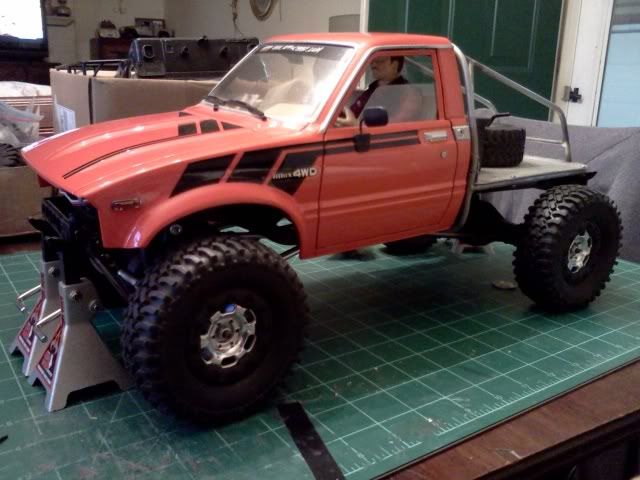

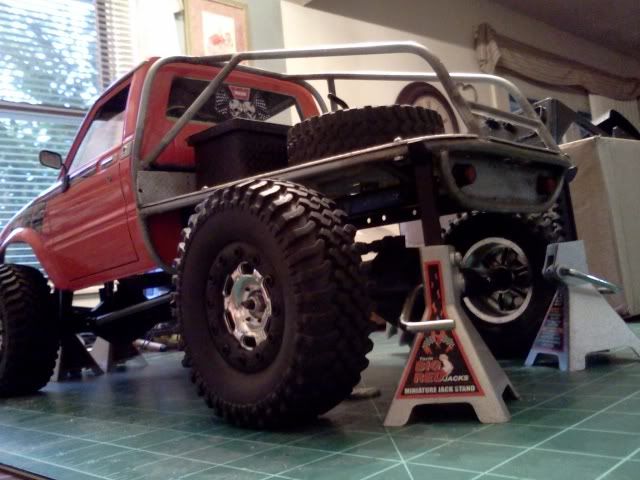

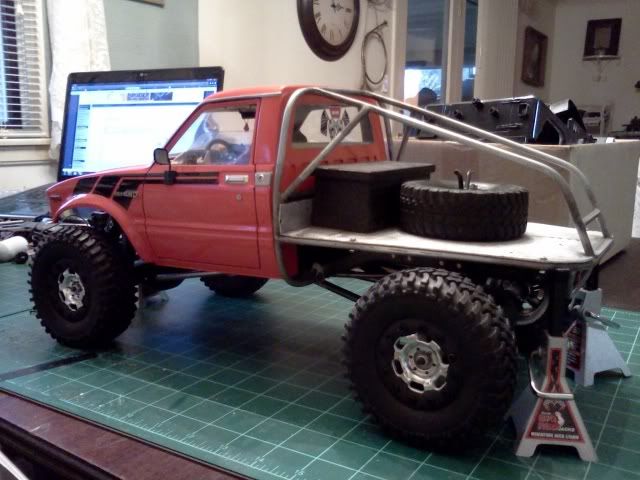

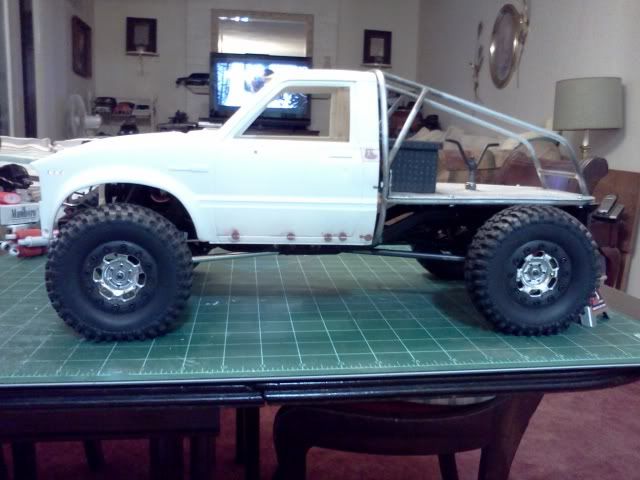

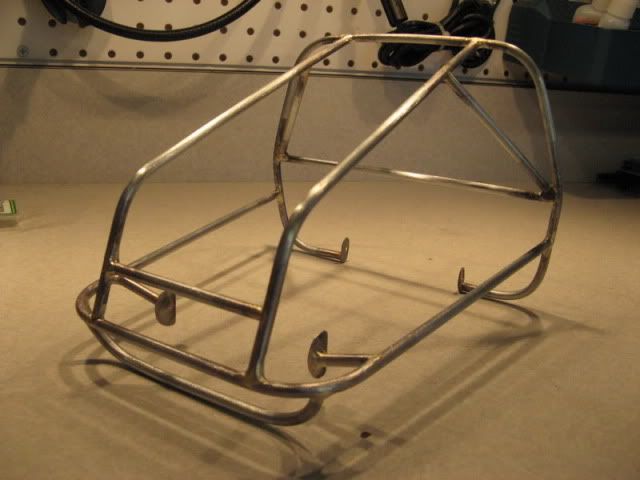

Here's some PICS....to do the rest of the talking.....(the first 2 pics are from the ORIGINAL BUILDER/OWNER of the Bed section..but I'm not sure who that was so I can't give them credit !)

Thanks
ArOn
