Vanquish F10 Portal Reverse

[Robotboy]

Wondering if it's possible to use reverse gears in the rear Vanquish F10 Portal axle?
I can't tell from pics and search turned up nada.
I want to try to use it for a mullet project...if possible. Thanks!



[Speedy-Triple]

yes its possible and is been done. I believe one of the recent builts on the VS-4-10 section did it... IIRC they dremeled the plastic housing in order to match the rotation to their straight front axle



[twade984]

I’ve never used reverse cut gears, I’m assuming you would just flip the spool and ring gear to the other side? In which case, yes that is possible with a little dremel work on the housing.

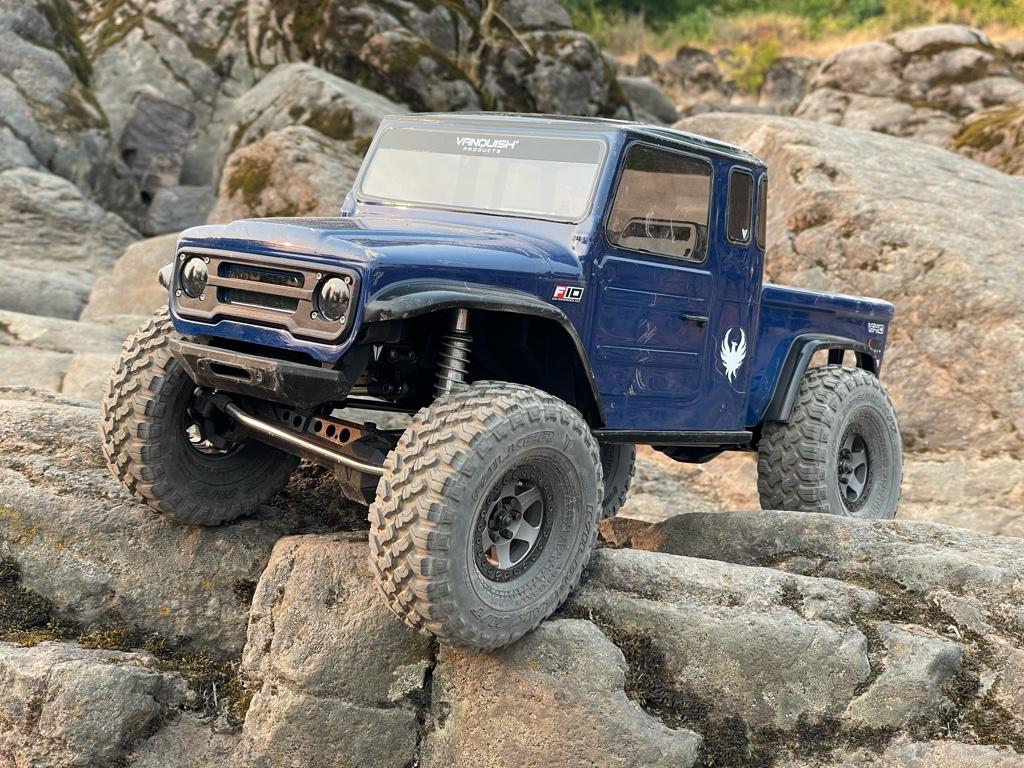

I just used a regular o/d ring and pinion, dremeled the housing and flipped the whole third member on my Phoenix mullet project.

With the o/d gears and a stealth x setup to send the o/d to the rear axle I have around 18% total over drive to the front.

Sent from my iPhone using Tapatalk



[bgredjeep]

Reverse cut gears do not change the rotation of the axle. You need to move the ring gear to the other side of the pinion.

Here's the dremel work I did to flip the diff on an f10 portal I installed in the rear of my scx10 pro.



[Robotboy]

Thanks for the info guys! Yeah with the rev gear I have to run the ring gear on the other side.
Should be a breeze...fingers crossed.
